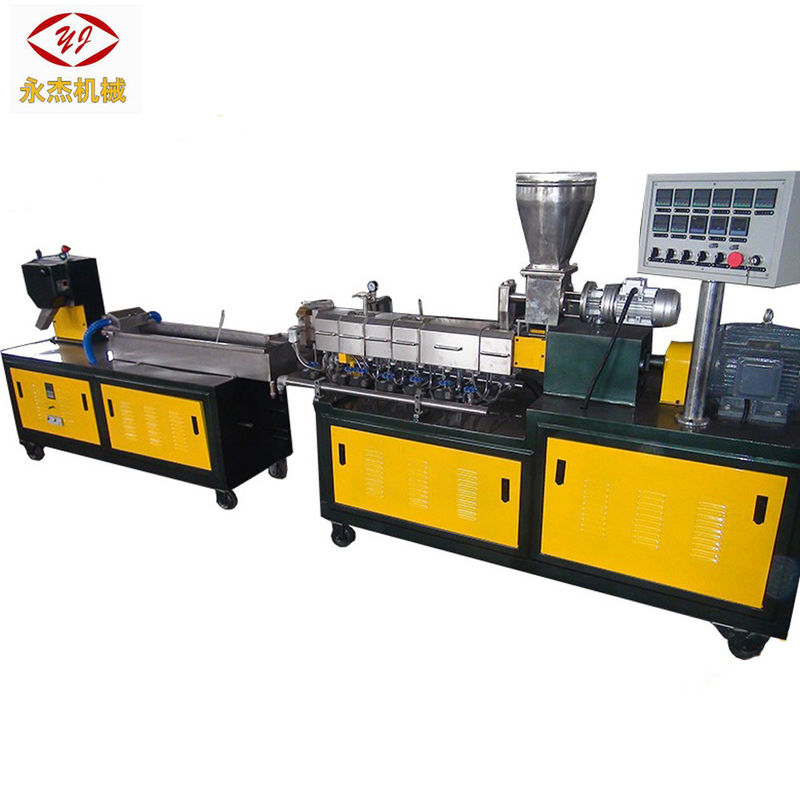

Twin-Screw Extruder Gearbox Mini Plastic Granulator

Twin-Screw Extruder Gearbox Mini Plastic Granulator

  • Twin-Screw Extruder Gearbox Mini Plastic Granulator
  • Twin-Screw Extruder Gearbox Mini Plastic Granulator
  • Twin-Screw Extruder Gearbox Mini Plastic Granulator
  • Twin-Screw Extruder Gearbox Mini Plastic Granulator
  • Twin-Screw Extruder Gearbox Mini Plastic Granulator
  • Twin-Screw Extruder Gearbox Mini Plastic Granulator
  • Twin-Screw Extruder Gearbox Mini Plastic Granulator
Twin-Screw Extruder Gearbox Mini Plastic Granulator
Product Details:
Contact Now
Detailed Product Description
加工塑料类型: PE/PP 产能(kg/h): 1 - 10 Kg/h
视频出厂验货: 可提供 机械测试报告: 可提供
核心组件: PLC, 齿轮箱, 电机 原产地: Jiangsu, China
品牌: YongJie 螺杆设计: 双排
电压: 380V 50HZ 尺寸(长×宽×高): 型号
功率 (kW): 5.5 保修期: 1年
双螺杆类型: 同向平行双螺杆 螺杆转速 (rpm): 50 - 600 Rpm
提供售后服务: 工程师可在海外为机械提供服务 保修: 1年
颜色: 任何颜色作为您的要求 直径 (mm): 36mm
L/D: 32-48 RPM ( R/min): 600r /min
扭矩 (N.m): 115N.M T/N: 4.2
材料: PP/PVC/WPC/PE/ABS/XPS/聚苯乙烯 逆变器类型: ABB
营销类型: 普通产品 保修后服务: 视频技术支持, 在线支持, 备品备件, 现场维护和维修服务
本地服务位置: 加拿大, 土耳其, 联合王国, 巴西, 沙特阿拉伯, 澳大利亚 认证: CE ISO9001
状态: New 核心组件质保期: 1年
机器类型: 水冷绞线 展示厅地点(在海外哪些国家有样品间): None
适用行业: 生产车间 重量: 1t-10t

Twin-Screw Extruder Gearbox Mini Plastic Granulator



                 The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.

          Taking advantage of oneself technical force we can formulate the typical technical proposal for the customer; to helping fulfill design, equipment process, engineering installation, and testing from raw material storage bin to finished product packing of the whole production line.

                                      Model           Diameter(mm)                                         L/D          RPM ( r/min)                             Power   (Kw)   Torque(N.m)                                       T/N                                  Capacity (Kg/h)
SJSL-20 20 32-44 600 5.5 30 4.8 6.5-15
SJSL-36 36 32-48 600 15 115 4.2 30-75
SJSL-51A 51 32-52 500 45 405 5.1 100-200
SJSL-51B 51 32-52 600 55 415 5.2 150-25
SJSL-63A 63 32-62 400      55        620       4.4      160-250
500 75 675 4.8 200-300

SJSL-63B

63 32-64 600     90       675       4.8       225-375
800 110 620 4.4 300-500
SJSL-75A 72 32-64 400     90        1015    4.7       225-350
500 110 1005 4.6 300-550
SJSL-75B 72 32-64 600     132       990      4.6       400-650
800 160 900 4.2 480-800
SJSL-92A 92 32-64 400     250 2815    5.9       650-1050
500 2250 4.7 750-1250
SJSL-92B 92 32-64 600     280 2365    5.0       900-1500
800 2250 4.7 1200-2000
SJSL-135A 135 32-48 400 315 6190 4.6 1500-2500
SJSL-135B 135 32-48 500 400 6750 5.1 200-3500

Twin-Screw Extruder Gearbox Mini Plastic Granulator 0



Twin-Screw Extruder Gearbox Mini Plastic Granulator 2

Water trough

SJSL20:1-2m

SJSL-36/51:3m

SJSL-63A/75A:4m

SJSL-75B/95:5/6m



Twin-Screw Extruder Gearbox Mini Plastic Granulator 4

Blowing dryer

SJSL-20: 1.5kw

SJSL-36/51: 1.5kw

SJSL-75A/63A:2.2kw

SJSL-75B/95:3kw,4kw



Twin-Screw Extruder Gearbox Mini Plastic Granulator 6

Pelletizer

SJSL-20: 50kg/h 0.75kw

SJSL-36:100kg/h 2.2kw

SJSL-51/63A: 300kg/h  4kw

SJSL-63B/75A: 500kg/h  5.5kw

SJSL-75B/95:1000kg/h

Twin-Screw Extruder Gearbox Mini Plastic Granulator 8

Application for water-cooling strand



1.    Fiber reinforcement and modification: filling glass fiber or carbon fiber for: PP, PA, PBT,

       ABS, AS, POM, PPS, PET, etc.



2.    Ploymer compounding: PC+ABS, PA+ABS,CPE+ABS,PP+EPDM,PA+EPDM,

       PA+SBS, etc.



3.   Filling modified: Filling CaCO3,Talc,Titanium, carbon black for PVC PE,PP, EVA etc.



4.   Cable material: cable sheath, cable insulation compounds, crosslinking compounds,

      optical fiber protection compounds, cable coating material, thermal contraction material,

      etc.



5.   Dedicated material: PPR pipe compounds, PE crosslinking tube material, cigarettes

      filter tip material, acetate fiber material, etc.



6.   High Concentration Color Masterbatch: PE,ABS,PS,EVA,PET,PP + color +

      additives, etc.



7.   Flaming Retardants: PVC, PP, PA, ABS, EVA, PBT + flame retardants, etc.



8.   Special Functional Masterbatch: double protection masterbatch, antistatic masterbatch,

      anti-bacteria masterbatch, thermal insulation masterbatch, hypothermia material, etc.



9.   The degradable masterbatch: PP, PE, PS + starch+ additives, etc.

Twin-Screw Extruder Gearbox Mini Plastic Granulator 10Twin-Screw Extruder Gearbox Mini Plastic Granulator 12Twin-Screw Extruder Gearbox Mini Plastic Granulator 14

Twin-Screw Extruder Gearbox Mini Plastic Granulator 16



FAQ



1. Are you a factory or trading company?



     Both.

2. Where is your factory located? How can I visit there?



   Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.



   (1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;



   (2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in             the railway station.



3. What's your advantages?



   (1) Excellent quality control



   (2) First-class service



   (3) Professional Tech. and R&D team



   (4) Quick manufacturing time



   (5) Quite competitive price



4. How long is the delivery time?



    Under normal conditions, products are delivered within 35 days.



5. How can I know the stauts of my order?



    We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.



6. how long is the warranty?



    We can offer one-year warranty for the whole machine.
