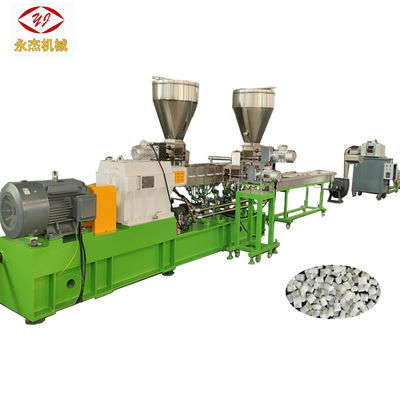

PE PP Calcium Carbonate High Filler Master Batch Machine Twin Screw Extruder

Product Details:

Contact Now

Detailed Product Description

加工塑料类型:	PE PP + Caco3	应用:	颗粒
螺杆设计:	双螺杆	双螺杆类型:	同向平行双螺杆
螺杆材质:	W6Mo5Cr4V2	螺杆直径（mm）:	71毫米
螺杆长径比:	36:1	螺杆转速 (rpm):	800 Rpm
原产地:	Jiangsu, China	品牌:	YongJie
电压:	380V 50HZ或定制	尺寸(长×宽×高):	模型
功率（kW）:	315	保修期:	1年
核心卖点:	高生产率	视频出厂验货:	可提供
核心组件:	电机, PLC, 齿轮箱	机械测试报告:	可提供
文章关键词:	双螺杆母料挤出机	双螺杆挤出机保修:	1年
母料挤出机L/D:	48-52	扭矩 (N.m):	3800
T/N:	8.7	工作:	PP PE高填料母料
变速箱类型:	高扭矩D型	螺杆最大速度:	800rpm
扭矩等级:	8.7 T/A3	逆变器:	ABB变频器
状态:	New	展示厅地点（在海外哪些国家有样品间）:	None
适用行业:	生产车间	核心组件质保期:	1年
重量:	10 KG

2.5tons/h Twin Screw Masterbatch Extruder PE PP Filler Master Batch Machine

Product Description

Nanjing Yongjie started to make twin screw masterbatch extruder since 2002, beside for twin screw masterbatch extruder, our twin screw extruders are widely used for enforcing modification, degradab le master batch, anti-flame master batch etc.

Model type	Series	Barrel Diameter (mm)	Screw Diameter (mm)	Screw L/D	screw speed n(r/min)	Main motor power(Kw)	Screw torque T(N.m)	Torque rating (T/A³)	Typical production capacity (kg/h)
SJSL-36	A/B/C/D	36	35.6	32-48	400/600	11/15/18.5/22	125-225	4.6-8.3	30-120
SJSL-51	A/B/C/D	51	50.5	32-52	500/600	45/55/75/90	405-680	5.1-8.5	120-400
SJSL-65	A/B/C/D	63	62.4	32-64	500/600	75/90/110/132	680-1200	4.8-8.5	180-750
SJSL-75	A/B/C/D	72	71	32-64	500/600	110/132/160/250	995-1890	4.6-8.7	300-1200
SJSL-95	A/B/C/D	94	93	32-64	500/600	250/315/450/550	2260-4510	4.7-8.7	700-2500
SJSL-135	A/B/C/D	135	133	32-48	400/500	550/750/900/1200	6200-10800	4.4-7.7	1550-6500

Image & Data

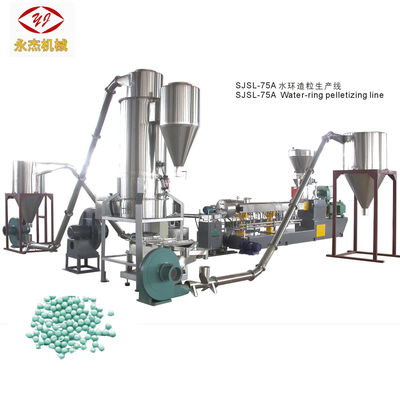

twin screw masterbatch extruder sjsl75D making filler masterbatch 2000-25000kg/h

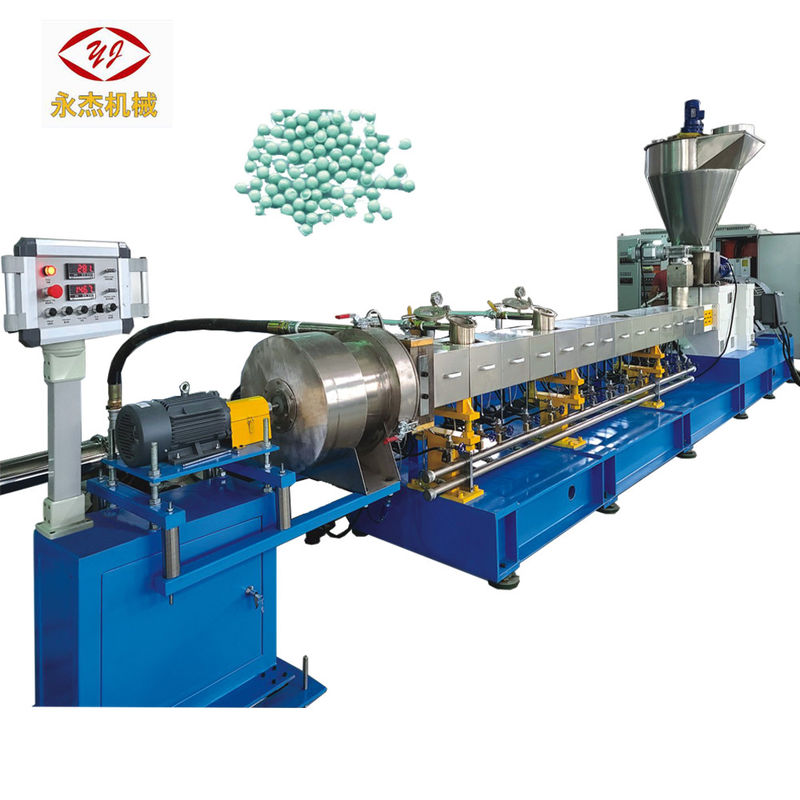

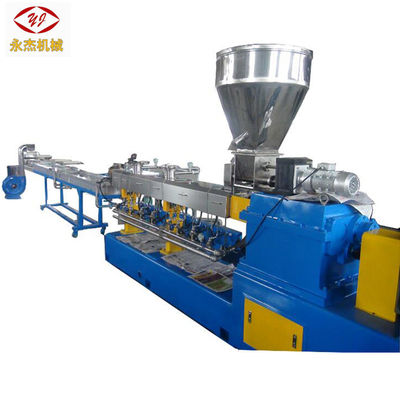

1. Main Parts of twin screw masterbatch extruder

Name: Twin-screw extruder
Brand: YJMotor: AC motor, power:75KW, brand: SIEMENS Bade,
Speed governing: Japanese ABB inverter control speed,
Revolutions:800rpm for filler masterbatch/300rpm for pet flake
Reduction ratio: i =1.9/5:1

1.1. Main Parts of twin screw masterbatch extruder

Name: Gearbox
Brand: YJ
Parallel tri-axial structure is combination of reduction and matrix. The gear is made of high quality alloy (20CrNi2Mo).Drive bearing: The brand of axletree: Japanese NSK.
Lubrication: Gear bearings in the gear box will be of oil immersed. There is hydraulic lubrication in the gear engagement and gear bearings.
Cooling: Lubricated cooling adopts shell and tube cooler and circulated water cooling method.

1.2.Main Parts of twin screw extruder filler masterbatch machine

Name: Gearbox

Name: Screw
Brand: YJ
Direction of rotation: co-rotating;
The screw elements material is W6Mo5Cr4V2(6542#)
The core axis is made of high quality alloy steel 40CrNiMo

Company Information

Nanjing Yongjie Qixin Machinery Equipment Co., Ltd, founded in 2001, started to export since 2005,

covers an area of 20,000 square meters on our own land, with yearly output of plastic extruder morethan 200 sets.

Our company is committed to the research and production of single screw extrusion production line,co-rotating

parallel twin screw extrusion and granule machine, tandem compounding system for extruding

and granulating, twin screw extruding line for plate, profile, and automatic production line for waste

film(bottle) smashing, cleaning, recycling and re-granulating etc.

QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
