Euro-quality Loss-in-weight Feeder Water Ring Pelletizer PP/PE+CaCO3/Talcum/Tio2 Twin Screw Extruder Plastic Granulator Machine

Euro-quality Loss-in-weight Feeder Water Ring Pelletizer PP/PE+CaCO3/Talcum/Tio2 Twin Screw Extruder Plastic Granulator Machine

  • Euro-quality Loss-in-weight Feeder Water Ring Pelletizer PP/PE+CaCO3/Talcum/Tio2 Twin Screw Extruder Plastic Granulator Machine
  • Euro-quality Loss-in-weight Feeder Water Ring Pelletizer PP/PE+CaCO3/Talcum/Tio2 Twin Screw Extruder Plastic Granulator Machine
  • Euro-quality Loss-in-weight Feeder Water Ring Pelletizer PP/PE+CaCO3/Talcum/Tio2 Twin Screw Extruder Plastic Granulator Machine
  • Euro-quality Loss-in-weight Feeder Water Ring Pelletizer PP/PE+CaCO3/Talcum/Tio2 Twin Screw Extruder Plastic Granulator Machine
  • Euro-quality Loss-in-weight Feeder Water Ring Pelletizer PP/PE+CaCO3/Talcum/Tio2 Twin Screw Extruder Plastic Granulator Machine
  • Euro-quality Loss-in-weight Feeder Water Ring Pelletizer PP/PE+CaCO3/Talcum/Tio2 Twin Screw Extruder Plastic Granulator Machine
  • Euro-quality Loss-in-weight Feeder Water Ring Pelletizer PP/PE+CaCO3/Talcum/Tio2 Twin Screw Extruder Plastic Granulator Machine
Euro-quality Loss-in-weight Feeder Water Ring Pelletizer PP/PE+CaCO3/Talcum/Tio2 Twin Screw Extruder Plastic Granulator Machine
Product Details:
Contact Now
Detailed Product Description
加工塑料类型: HDPE, HDPE/PP, PE/PP, LLDPE, PP, MLLDPE, LDPE 产能（kg/h）: 800 - 1000 Kg/h
视频出厂验货: 可提供 机械测试报告: 可提供
核心组件: PLC, 齿轮箱, 电机 原产地: Jiangsu, China
品牌: YongJie 螺杆设计: 双排
电压: 380v 50hz 尺寸(长×宽×高): 型号
功率 （kW）: 160 保修期: 1年
双螺杆类型: 同向平行双螺杆, 同向平行双螺杆 螺杆长径比: 48:1, 48:1
螺杆转速 (rpm): 50 - 600 Rpm 姓名: 永洁
颜色: 任何颜色作为您的要求 直径 (mm): 36
L/D: 32-48 RPM ( R/min): 600
T/N: 4.2 容量 (Kg/h): 30-75kg/h
扭矩 (N.m): 115 材料: PP/PVC/WPC/PE/ABS/XPS/聚苯乙烯
认证: CE ISO9001 状态: New
核心组件质保期: 1年 机器类型: 造粒生产线
螺杆直径（mm）: 71.8, 71.8 展示厅地点（在海外哪些国家有样品间）: None
适用行业: 生产车间 重量: 10000

Euro-quality loss-in-weight feeder water ring pelletizer PP/PE+CaCO3/Talcum/Tio2 twin screw extruder plastic granulator machine

              The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder plastic granulator machine. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.

                                      Model           Diameter(mm)                                         L/D          RPM ( r/min)                             Power   (Kw)   Torque(N.m)                                       T/N                                  Capacity (Kg/h)
SJSL-20 20 32-44 600 5.5 30 4.8 6.5-15
SJSL-36 36 32-48 600 15 115 4.2 30-75
SJSL-51A 51 32-52 500 45 405 5.1 100-200
SJSL-51B 51 32-52 600 55 415 5.2 150-25
SJSL-63A 63 32-62 400      55        620       4.4      160-250
500 75 675 4.8 200-300

SJSL-63B

 63 32-64 600     90       675       4.8       225-375
800 110 620 4.4 300-500
SJSL-75A 72 32-64 400     90        1015    4.7       225-350
500 110 1005 4.6 300-550
SJSL-75B 72 32-64 600     132       990      4.6       400-650
800 160 900 4.2 480-800
SJSL-92A 92 32-64 400     250 2815    5.9       650-1050
500 2250 4.7 750-1250
SJSL-92B 92 32-64 600     280 2365    5.0       900-1500
800 2250 4.7 1200-2000
SJSL-135A 135 32-48 400 315 6190 4.6 1500-2500
SJSL-135B 135 32-48 500 400 6750 5.1 200-3500

Application for water-ring pelletizer plastic granulator machine

1. Filling master batch: PE, EVA, etc. + caco3, talc, filling modified and carbon black etc.

2. LDPE, HDPE, LLDPE, MDPE, drivepipe, insulation material, crosslinking material,

   cable coating material , thermal contraction pipe material.

3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic

   elastomer, EVA and hot melt additives.

4. Color mater batch: PE, ABS, PS, EVA master batch, etc.

5. ABS, EVA flaming retarding master batch, etc.

6. PE, PP, PS filling and biodegradable masterbatch, etc.

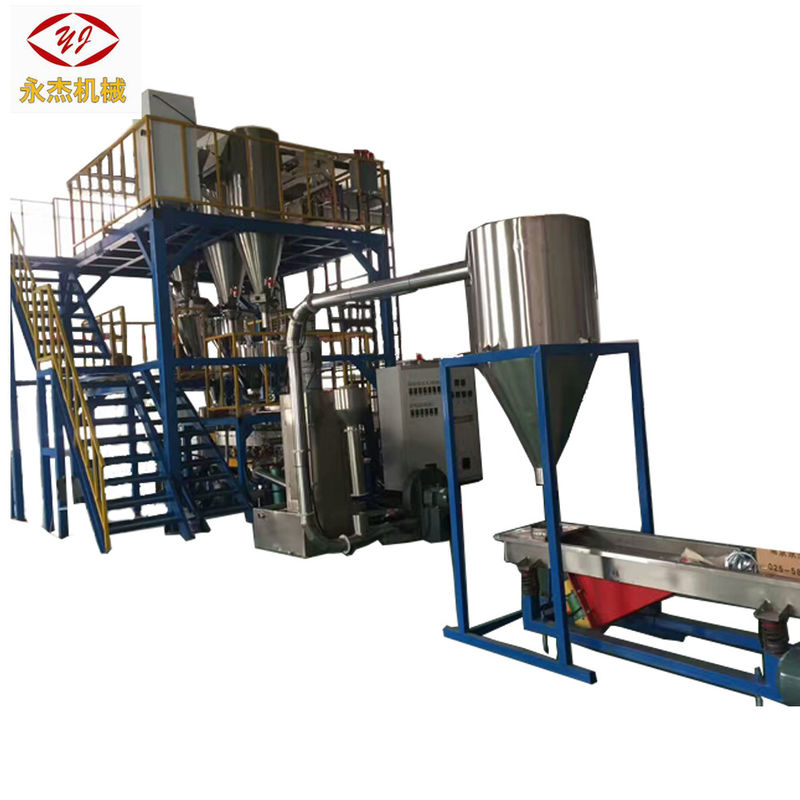

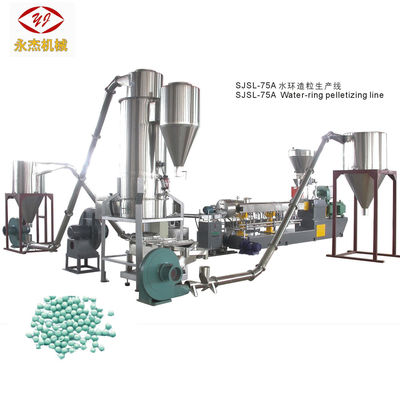

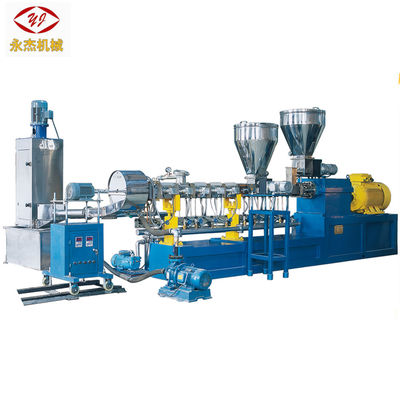

Photo of water-ring pelletizer plastic granulator machine



Euro-quality Loss-in-weight Feeder Water Ring Pelletizer PP/PE+CaCO3/Talcum/Tio2 Twin Screw Extruder Plastic Granulator Machine 0

Euro-quality Loss-in-weight Feeder Water Ring Pelletizer PP/PE+CaCO3/Talcum/Tio2 Twin Screw Extruder Plastic Granulator Machine 2

Euro-quality Loss-in-weight Feeder Water Ring Pelletizer PP/PE+CaCO3/Talcum/Tio2 Twin Screw Extruder Plastic Granulator Machine 4

Auxiliary

Water-ring cover



pelletizer

Euro-quality Loss-in-weight Feeder Water Ring Pelletizer PP/PE+CaCO3/Talcum/Tio2 Twin Screw Extruder Plastic Granulator Machine 6

Centrifugal dehydrator

Euro-quality Loss-in-weight Feeder Water Ring Pelletizer PP/PE+CaCO3/Talcum/Tio2 Twin Screw Extruder Plastic Granulator Machine 8

Vibrating sieve

Euro-quality Loss-in-weight Feeder Water Ring Pelletizer PP/PE+CaCO3/Talcum/Tio2 Twin Screw Extruder Plastic Granulator Machine 10

Bin

Euro-quality Loss-in-weight Feeder Water Ring Pelletizer PP/PE+CaCO3/Talcum/Tio2 Twin Screw Extruder Plastic Granulator Machine 12

Other product



Pelletizing in the water line                                   Air-cooling strand pelletizing line

Euro-quality Loss-in-weight Feeder Water Ring Pelletizer PP/PE+CaCO3/Talcum/Tio2 Twin Screw Extruder Plastic Granulator Machine 14Euro-quality Loss-in-weight Feeder Water Ring Pelletizer PP/PE+CaCO3/Talcum/Tio2 Twin Screw Extruder Plastic Granulator Machine 16





Air-cooling hot-face pelletizing line                     Water-cooling stand pelletizing line



Euro-quality Loss-in-weight Feeder Water Ring Pelletizer PP/PE+CaCO3/Talcum/Tio2 Twin Screw Extruder Plastic Granulator Machine 18Euro-quality Loss-in-weight Feeder Water Ring Pelletizer PP/PE+CaCO3/Talcum/Tio2 Twin Screw Extruder Plastic Granulator Machine 20

Euro-quality Loss-in-weight Feeder Water Ring Pelletizer PP/PE+CaCO3/Talcum/Tio2 Twin Screw Extruder Plastic Granulator Machine 22

Euro-quality Loss-in-weight Feeder Water Ring Pelletizer PP/PE+CaCO3/Talcum/Tio2 Twin Screw Extruder Plastic Granulator Machine 24Euro-quality Loss-in-weight Feeder Water Ring Pelletizer PP/PE+CaCO3/Talcum/Tio2 Twin Screw Extruder Plastic Granulator Machine 26



Euro-quality Loss-in-weight Feeder Water Ring Pelletizer PP/PE+CaCO3/Talcum/Tio2 Twin Screw Extruder Plastic Granulator Machine 28

FAQ



1. Are you a factory or trading company?



     Both.



2. Where is your factory located? How can I visit there?



   Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.



   (1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;



   (2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.

3. What's your advantages?

   (1) Excellent quality control



   (2) First-class service



   (3) Professional Tech. and R&D team



   (4) Quick manufacturing time



   (5) Quite competitive price



4. How long is the delivery time?



    Under normal conditions, products are delivered within 35 days.



5. How can I know the stauts of my order?



    We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.



6. How long is the warranty?



    We can offer one-year warranty for the whole machine.
