Name: Bio Plastic Machine Biodegradable Pelletizing Machine Corn Starch Plastic Pellet Machine
Brand: Nanjing Yongjie Qixin Machinery Equipment Co., Ltd.
Availability: InStock

Home Products Corn Starch biodegradable plastic machine

Bio Plastic Machine Biodegradable Pelletizing Machine Corn Starch Plastic Pellet Machine

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	YongJie
Certification:	CE ISO9001

Contact Now

Detailed Product Description

Plastic Processed:	PVA, PBAT, PLA,PCL+corn Starch	Application:	Granules
Screw Design:	Double-screw	Twin Screw Type:	Co-rotating Parallel Twin-screw
Screw Material:	38CrMoAlA	Screw Diameter (mm):	71 Mm
Screw L/D Ratio:	48:1	Screw Speed (rpm):	500 Rpm
Voltage:	380V 50HZ	Dimension(lwh):	Model
Power (kw):	132	Warranty:	1 Year
Key Selling Points:	High Productivity	Video Outgoing-inspection:	Provided
Core Components:	Motor, PLC, Gearbox	Machinery Test Report:	Provided
Color:	Any Color As Your Require	Name:	YongJie
Barrel Diameter(mm):	71.8mm	Torque(N.m):	1015/1005/990/900
Bio Plastic Machine T/N:	4.7/4.6/4.2	Barrel Section:	12 Section Or 13 Sections
Heater Material:	Cast Copper And Cast Aluminum	Cooling Way:	Soft Water Cooling
Cutting Method:	Strand Cutting Or Die Face Cutting	Condition:	New
Showroom Location:	None	Applicable Industries:	Manufacturing Plant
Warranty Of Core Components:	1 Year	Weight:	6000 KG

Bio Plastic Machine Biodegradable Pelletizing Machine Corn Starch Plastic Pellet Machine

Product Description

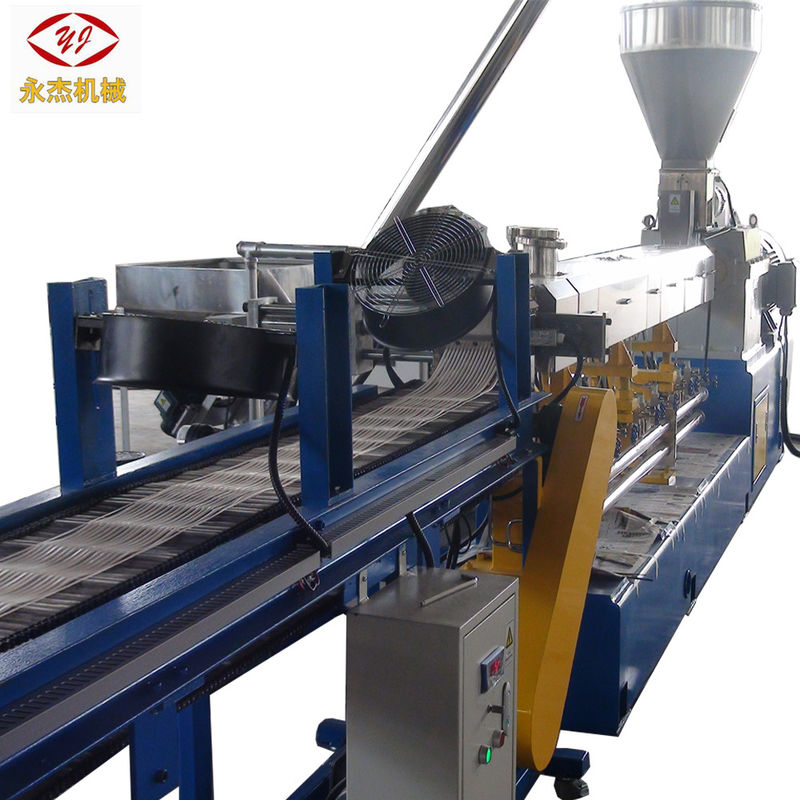

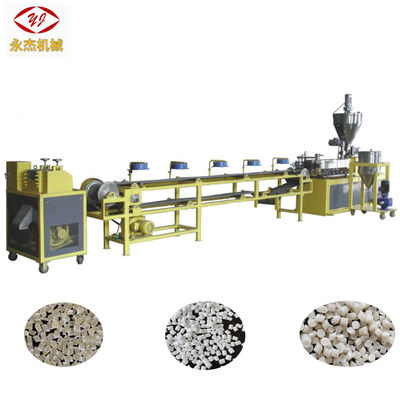

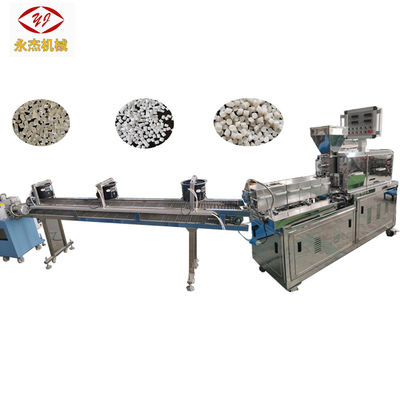

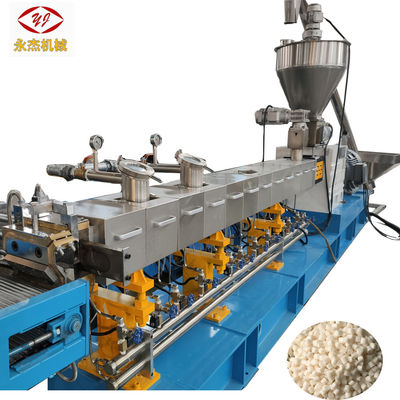

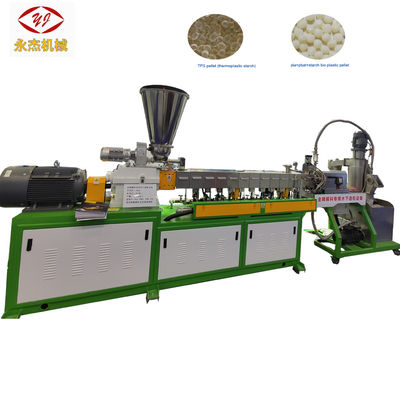

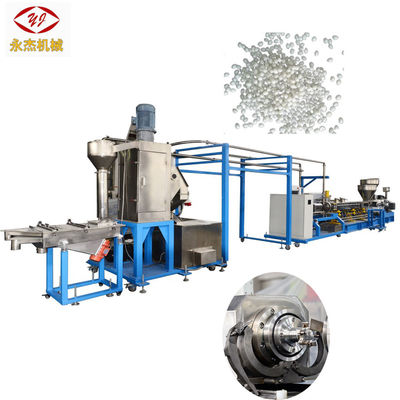

Nanjing Yongjie bio plastic machine is the special and innovative technique for the production of biodegradable pellet , like PBAT, PLA, PVA, PBS, PCL etc with corn starch, cassava starch, potato starch, and hgih-quality plastics pellets, which have low viscosity and high elasticity, or have special shape, such as micro-particle.

Typical Application: 1. blowing film: PVA+starch cold or hot water soluable film, shopping bag etc, PBAT+PLA+starch for biodegradable or compostable film

2. PLA+starch for injection or thermoforming of food containers, cups, forks etc 3. PLA+starch for extrusion of drinking straw etc.

Models avaialbe for bio plastic machine

Model type	Series	Barrel Diameter (mm)	Screw Diameter (mm)	Screw L/D	screw speed n(r/min)	Main motor power(Kw)	Screw torque T(N.m)	Torque rating (T/A³)	Typical production capacity (kg/h)
SJSL20	A/B	22	21.7	32-44	500/600	4/5.5kw	30/30
SJSL-36	A/B/C/D	36	35.6	32-48	400/600	11/15/18.5/22	125-225	4.6-8.3	30-120
SJSL-51	A/B/C/D	51	50.5	32-52	500/600	45/55/75/90	405-680	5.1-8.5	120-400
SJSL-65	A/B/C/D	63	62.4	32-64	500/600	75/90/110/132	680-1200	4.8-8.5	180-750
SJSL-75	A/B/C/D	72	71	32-64	500/600	110/132/160/250	995-1890	4.6-8.7	300-1200
SJSL-95	A/B/C/D	94	93	32-64	500/600	250/315/450/550	2260-4510	4.7-8.7	700-2500
SJSL-135	A/B/C/D	135	133	32-48	400/500	550/750/900/1200	6200-10800	4.4-7.7	1550-6500

Image & Data
