Name: Parallel Co-rotating Twin Screw Extruder PLA Extruder with CE Certification
Brand: Nanjing Yongjie Qixin Machinery Equipment Co., Ltd.
Availability: InStock

Home Products Corn Starch biodegradable plastic machine

Parallel Co-rotating Twin Screw Extruder PLA Extruder with CE Certification

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Yongjie
Certification:	CE,ISO

Contact Now

Detailed Product Description

Plastic Processed:	Polylactic Acid	Output (kg/h):	500 - 600 Kg/h
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	PLC, Gearbox, Motor	Screw Design:	Double
Voltage:	380V/440V/415V/customized	Dimension(lwh):	1532.5
Power (kw):	185	Warranty:	12 Months
Twin Screw Type:	Co-rotating Parallel Twin-screw, Co-rotating Parallel Twin-screw	Screw L/D Ratio:	48, 48
Screw Speed (rpm):	50 - 600 Rpm	After-sales Service Provided:	Free Spare Parts
Application:	Biodegradable Corn Starch Granules Production	Raw Material:	Corn Starch Additives
Control Model:	PID(PLC Available With Different Price)	Barrel (Cylinder) Material:	45#steel
Process Type:	Extrusion And Pelletizing	Motor:	SIEMENS BEIDE Brand
Material:	Corn Starch	Inverter:	ABB
Condition:	New	Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year	Type:	Granulating Production Line
Showroom Location:	None	Applicable Industries:	Manufacturing Plant
Screw Diameter (mm):	71, 71	Weight:	4000

Product Description

Parallel co-rotating twin screw extruder PLA extruder with CE certification

Nanjing Yongjie started to make co-rotating twin screw extruder since 2005, beside for pla extruder, our twin screw extruders are widely used for enforcing modification, degradab le master batch, anti-flame master batch etc.

Model type	Series	Barrel Diameter (mm)	Screw Diameter (mm)	Screw L/D	screw speed n(r/min)	Main motor power(Kw)	Screw torque T(N.m)	Torque rating (T/A³)	Typical production capacity (kg/h)
SJSL-36	A/B/C/D	36	35.6	32-48	400/600	11/15/18.5/22	125-225	4.6-8.3	30-120
SJSL-51	A/B/C/D	51	50.5	32-52	500/600	45/55/75/90	405-680	5.1-8.5	120-400
SJSL-65	A/B/C/D	63	62.4	32-64	500/600	75/90/110/132	680-1200	4.8-8.5	180-750
SJSL-75	A/B/C/D	72	71	32-64	500/600	110/132/160/250	995-1890	4.6-8.7	300-1200
SJSL-95	A/B/C/D	94	93	32-64	500/600	250/315/450/550	2260-4510	4.7-8.7	700-2500
SJSL-135	A/B/C/D	135	133	32-48	400/500	550/750/900/1200	6200-10800	4.4-7.7	1550-6500

Image & Data

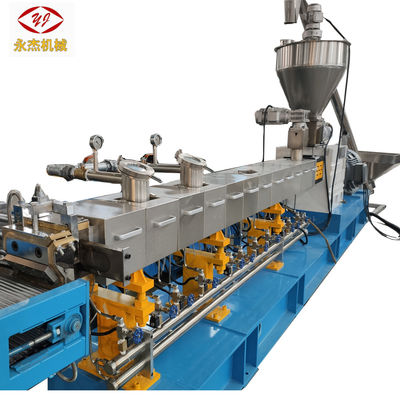

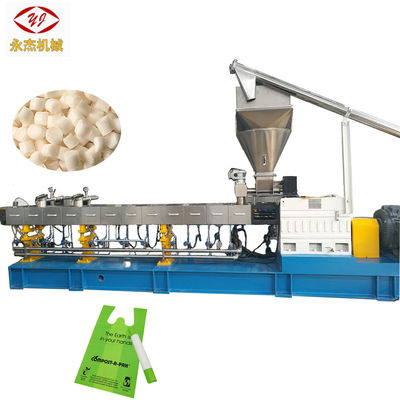

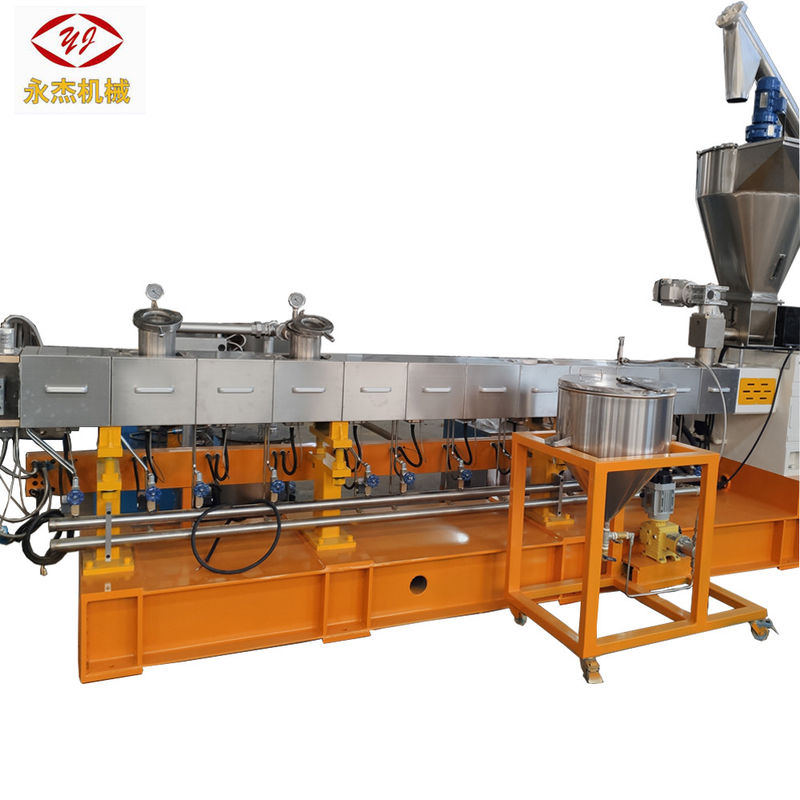

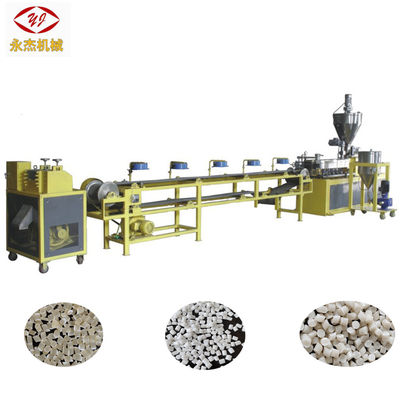

co-rotating twin screw extruder pla extruder photo

1. Main Parts of co-rotating twin screw extruder pla extruder

Name: Twin-screw extruder
Brand: YJMotor: AC motor, power:160KW, brand: SIEMENS Bade,
Speed governing: Sweden ABB inverter control speed,
Revolutions:600rpm
Reduction ratio: i =2.5:1

1.1. Main Parts of co-rotating twin screw extruder pla extruder

Name: Gearbox
Brand: YJ
Parallel tri-axial structure is combination of reduction and matrix. The gear is made of high quality alloy (20CrNi2Mo).Drive bearing: The brand of axletree: Japanese NSK.
Lubrication: Gear bearings in the gear box will be of oil immersed. There is hydraulic lubrication in the gear engagement and gear bearings.
Cooling: Lubricated cooling adopts shell and tube cooler and circulated water cooling method.

1.2.Main Parts of co-rotating twin screw extruder pla extruder

Name: Screw
Brand: YJ
Direction of rotation: co-rotating;
The screw elements material is W6Mo5Cr4V2(6542#)
The core axis is made of high quality alloy steel 40CrNiMo

Company Information

Nanjing Yongjie Qixin Machinery Equipment Co., Ltd, founded in 2001, started to export since 2005,

covers an area of 20,000 square meters on our own land, with yearly output of plastic extruder morethan 200 sets.

Our company is committed to the research and production of single screw extrusion production line,co-rotating

parallel twin screw extrusion and granule machine, tandem compounding system for extruding

and granulating, twin screw extruding line for plate, profile, and automatic production line for waste

film(bottle) smashing, cleaning, recycling and re-granulating etc.

QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.

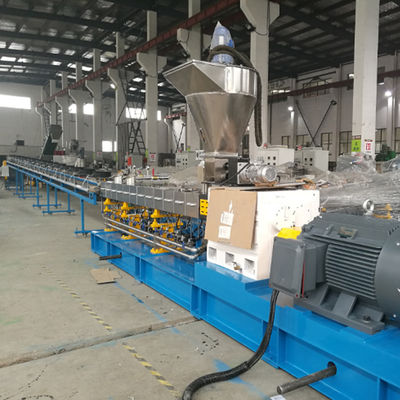

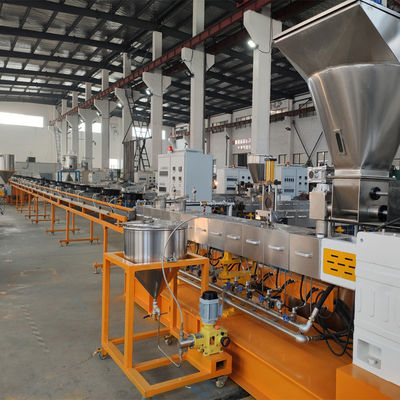

Our projects
