Promotion Wpc Machine Low Price
Product Details:
Place of Origin: Jiangsu, China
Brand Name: YongJie
Certification: CE ISO9001
Contact Now
Detailed Product Description
Plastic Processed: PP/PVC/WPC/PE/ABS/XPS/Polystyrene Application: Granules
Screw Design: Double-screw Twin Screw Type: Co-rotating Parallel Twin-screw
Screw Material: 38CrMoALA Screw Diameter (mm): 91
Screw L/D Ratio: 36:1 Screw Speed (rpm): 500 Rpm
Voltage: 380V 50HZ Dimension(l*w*h): Model
Power (kw): 350 Warranty: 1 Year
Key Selling Points: Automatic Video Outgoing-inspection: Provided
Core Components: Motor, Pump, Gear, PLC, Gearbox Machinery Test Report: Provided
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Free Spare Parts Keyword: Wpc Machine
Name: YongJie Color: Any Color As Your Require
Diameter(mm): 92 L/D: 32-64
RPM ( R/min): 400/500/600/800 Torque(N.m): 2815/2250/2365/2250
T/N: 5.9/4.7/5.0 After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Saudi Arabia, Sri Lanka, Ukraine Marketing Type: Hot Product 2019
Output (kg/h): 800 - 1500 Kg/h Condition: New
Showroom Location: None Applicable Industries: Manufacturing Plant
Warranty Of Core Components: 1 Year Weight: 1t-10t

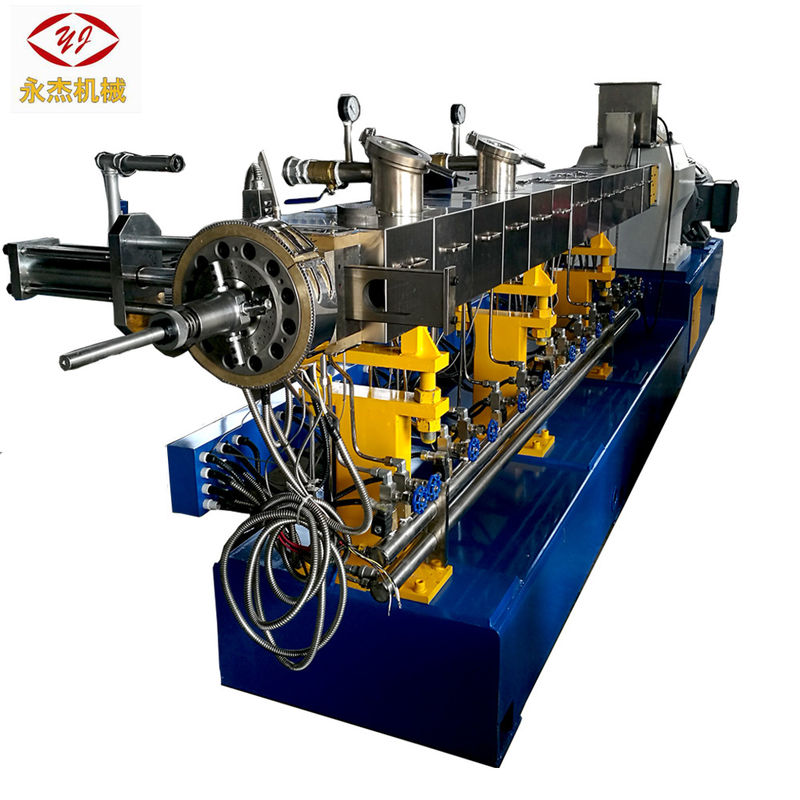

Promotion wpc machine low price

              The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.

                                      Model           Diameter(mm)                                         L/D          RPM ( r/min)                             Power   (Kw)   Torque(N.m)                                       T/N                                  Capacity (Kg/h)
SJSL-20 20 32-44 600 5.5 30 4.8 6.5-15
SJSL-36 36 32-48 600 15 115 4.2 30-75
SJSL-51A 51 32-52 500 45 405 5.1 100-200
SJSL-51B 51 32-52 600 55 415 5.2 150-25
SJSL-63A 63 32-62 400      55        620       4.4      160-250
500 75 675 4.8 200-300

SJSL-63B

 63 32-64 600     90       675       4.8       225-375
800 110 620 4.4 300-500
SJSL-75A 72 32-64 400     90        1015    4.7       225-350
500 110 1005 4.6 300-550
SJSL-75B 72 32-64 600     132       990      4.6       400-650
800 160 900 4.2 480-800
SJSL-92A 92 32-64 400     250 2815    5.9       650-1050
500 2250 4.7 750-1250
SJSL-92B 92 32-64 600     280 2365    5.0       900-1500
800 2250 4.7 1200-2000
SJSL-135A 135 32-48 400 315 6190 4.6 1500-2500
SJSL-135B 135 32-48 500 400 6750 5.1 200-3500
Promotion Wpc Machine Low Price 0

Promotion Wpc Machine Low Price 2Promotion Wpc Machine Low Price 4

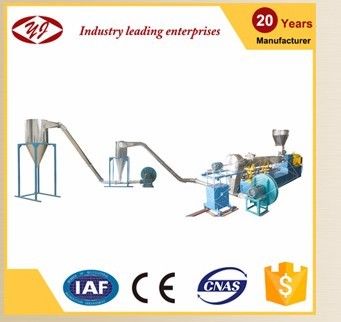

Application for air-cooling hot face production line

1. Masterbatch enforcing modification: PE, EVA + calcium carbonate, talc, titanium

  dioxide, PVC, PP, carbon black.

2. Degradable master batch: PE, PS, etc. + starch, additives etc.

3. Anti-flame master batch: PE, EVA, etc. + Mg(OH)2, Al2(OH)3, etc.



Auxiliary

Air-cooling pelletizer cover

Promotion Wpc Machine Low Price 6

cyclone

Promotion Wpc Machine Low Price 8

Blower

Promotion Wpc Machine Low Price 10

Vibrating sieve

Promotion Wpc Machine Low Price 12

Product bin

Promotion Wpc Machine Low Price 14

Other product



Water-ring Hot-face pelletizing line               Pelletizing in the water line



Promotion Wpc Machine Low Price 16Promotion Wpc Machine Low Price 18

Air-cooling hot-face pelletizing line             Air-cooling strand pelletizing line

Promotion Wpc Machine Low Price 20Promotion Wpc Machine Low Price 22

Promotion Wpc Machine Low Price 24

Promotion Wpc Machine Low Price 26Promotion Wpc Machine Low Price 28

FAQ



1. Are you a factory or trading company?



     Both.



2. Where is your factory located? How can I visit there?



   Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.



   (1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;



   (2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.

3. What's your advantages?

   (1) Excellent quality control



   (2) First-class service



   (3) Professional Tech. and R&D team



   (4) Quick manufacturing time



   (5) Quite competitive price



4. How long is the delivery time?



    Under normal conditions, products are delivered within 35 days.



5. How can I know the stauts of my order?



    We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.



6. how long is the warranty?



    We can offer one-year warranty for the whole machine.
