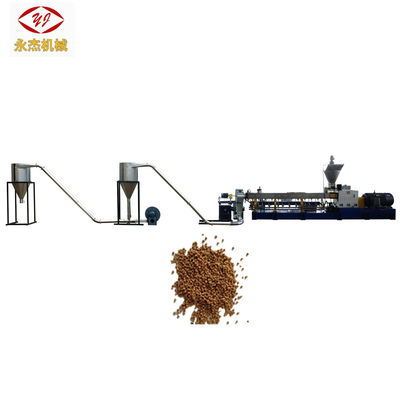

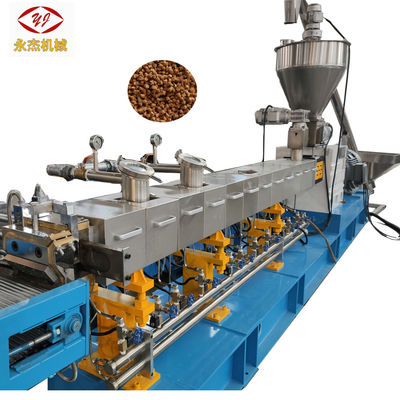

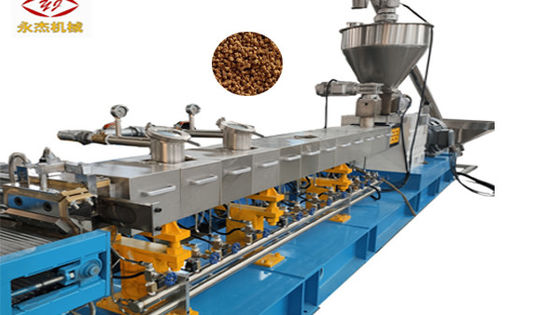

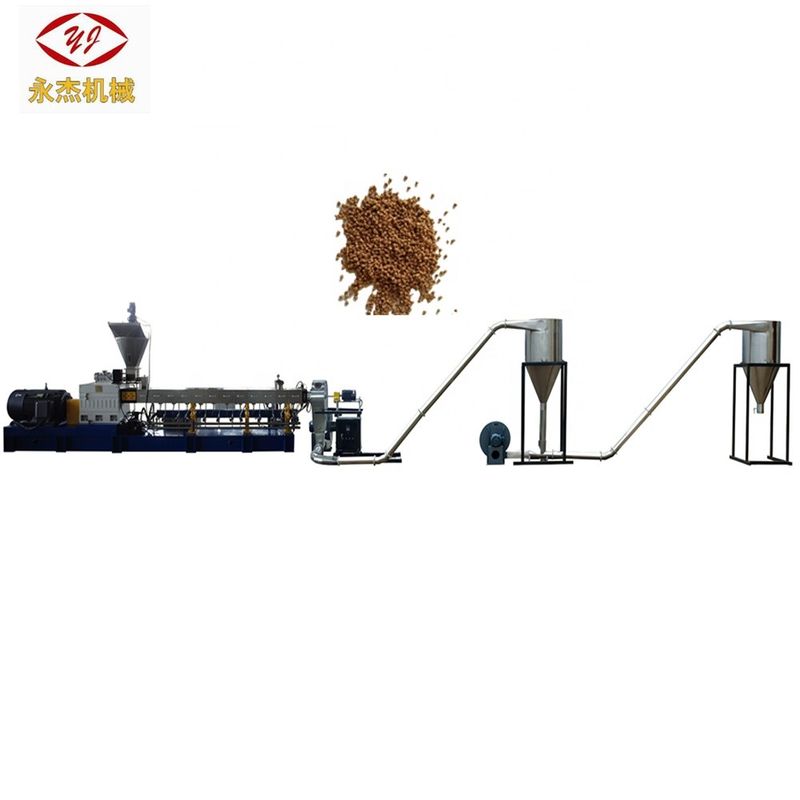

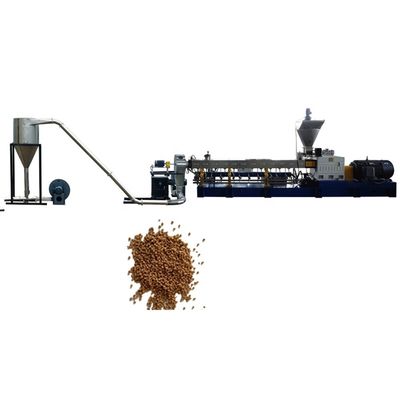

Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine

Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine

  • Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine
  • Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine
  • Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine
  • Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine
  • Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine
  • Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine
  • Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine
Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine
Product Details:
Place of Origin: Jiangsu, China
Brand Name: YongJie
Certification: CE ISO9001
Contact Now
Detailed Product Description
Plastic Processed: HDPE, HDPE/PP, PE/PP, Lldpe, Polystyrene, PP, LDPE, Wood Powder Output (kg/h): 400 - 500 Kg/h
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Core Components: Motor, Gear, PLC, Gearbox Screw Design: Double
Voltage: 380V 50HZ Dimension(l*w*h): Model
Power (kw): 132 Warranty: 1 Year
Twin Screw Type: Co-rotating Parallel Twin-screw, Co-rotating Parallel Twin-screw Screw L/D Ratio: 40:1, 40:1
Screw Speed (rpm): 50 - 600 Rpm Name: YongJie
Color: Any Color As Your Require Torque(N.m): 1015/1005/990/900
T/N: 4.7/4.6/4.2 Final Product: Filler Masterbatch Granules
Inverter: ABB Brand Motor Brand: WN/WEG/SIEMENS BEIDE
Barrel Material: Bimetalic Cooling Way: Water Cooling
Condition: New Warranty Of Core Components: 1 Year
Type: Granulating Production Line Screw Diameter (mm): 71.8, 71.8
Showroom Location: None Applicable Industries: Manufacturing Plant
Weight: 8000

Product Overview

Wood Powder PE PP PVC PS Plastic compounding extruder wpc granulator machine wpc pellets machine

WPC pellets machine is used for the compounding of pp, pe, pvc, ps with botanic fibers, like wood powder, sugar cane powder, straw powder, bamboo powders, and other botanic fibers or powders. Usually around 50% of wood powders can be added. The finished granules will be used to make wpc profile, wpc panel, wpc floor etc. wpc pellets machine usually uses air cooling die face cutting and air strand strand cutting depends on different formula system. We will choose suitable machine for your based on your formula.
FEATURES AT A GLANCE
1.Fully automatic loading & batching system
available to save labor cost.
2.Different capacity machine to meet your output requirements.
3.More than 20 years experience in ppr granulator machine
4.Word famous brand electronic components used to make sure long life span of the machine.
5.Technical support in formula system and testing before ordering of machine
Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine 0
Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine 2
sjsl-51 pbt twin screw extruder 120kg/h
Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine 4
sjsl-65 pbt twin screw extruder 300kg/h
Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine 6
wood plastic pellets
Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine 8
Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine 10
PRODUCT SPECIFICATIONS
No.
Contents
Unit
Quantity
Marks
1
Twin screw extrusion system
set
1
1.1
Feeding system
set
1
1.5kw
1.2
SJ-75B Twin screw extruder
set
1
132kw, 40:1
1.3
Water cycling system
set
1
0.55kw
2
Electric cabinet
set
1
3
Air-cooling auxiliary system
set
1
3.1
Die head
set
1
3.2
Face cutter
set
1
1.5kw
3.3
Two-stage conveying system
set
1
4kw/set, 8kw totally
3.4
Product silo
set
1
4kw
PRODUCT CONFIGURATION
Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine 12
gearbox
Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine 14
screw elements
Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine 16
Machine debugging and testing
Successful Project
Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine 18
Bio plastic machine in Poland
Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine 20
Filler masterbatch machine in China
Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine 22
wpc pellets machine in Sweden
Why Choose Us
Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine 24

Own land , 20+ years old factory

1. Our factory covers an area of more than 10,000 square meter on our own land.
2. Established in 2002, with more than 20 years experience in plastic compounding and pelletizing machine
Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine 26

Top-rank quality extruder

1. World famous brands electronic parts used, like ABB, DELTA, SIEMES, OMRON, RKC, SCHNEIDER, DANFOSS etc. European gearbox and safety clutch can be used by customers requirements
Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine 28

After sales service

1.Machine testing with customers' material before delivery
2. Engineers overseas for machine installation and commissioning
3. 1 year guarantee and sufficient parts in stock for replacement
SIMILAR PRODUCTS
Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine 30
Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine 32
Wood Powder PE PP PVC PS Plastic Compounding Extruder Wpc Granulator Machine Wpc Pellets Machine 34
FAQ
Q1：How can I be sure if your extruder can produce my material smoothly before I place the order?
A1：We always welcome you to visit our factory, and if you can send us your raw material, we will perform free live trials with you so
that you can see the end results of the plastic granules.
Q2：Can you provide the material formulation or help with product development along with the extruder production line?
A2: We are always happy to support your product development programmes. With more than 20 years of experience in the plastic modification industry, we have learned many standard plastic formulations, including fully degradable PLA for bags & bottle and water/hot-soluble film, etc. We are also well connected with experienced senior formulation experts and they will also support us with formulation developments.
Q3:What is your typical lead time?
A3:Lead time to produce a full extruder production line varies depending on the size of the extruders. Typical lead time would be in the range from 25 days to 90 days.
Q4: How long is your warranty and how about after sale services?
A4: All our machines come with a free one-year warranty.
Once the twin screw extruders reach your factory and basic installation is carried out according to our instruction book, our experienced engineer will come to your factory for final installation,production trials and training. Until the production line is fully online, and your workshop staff is fully trained to operate the extruders themselves. After that, if you have any concern or request, you can feel free to contact us via email, phone call or Apps (Wechat, Whatsapp, etc).
