Product Details:
Place of Origin: Jiangsu, China
Brand Name: YJ
Contact Now
Detailed Product Description
Plastic Processed: PLA/PBAT/PVA+starch Application: Granules
Screw Design: Double-screw Twin Screw Type: Co-rotating Parallel Twin-screw
Screw Material: 38CrMoAlA Screw Diameter (mm): 35.6 Mm
Screw L/D Ratio: 48:1 Screw Speed (rpm): 600 Rpm
Voltage: Cusotmized Dimension(l*w*h): 30000*3000*2500mm
Power (kw): 185 Warranty: 1 Year
Key Selling Points: High Productivity Video Outgoing-inspection: Provided
Core Components: Bearing, Motor, Pump, PLC, Gearbox Machinery Test Report: Provided
Color: Custmoized Application: Bio Plastic Pelletizing
Lead Time: 30-45 Days Cutting Way: Air Strand
Motor Brand: Siemens Beide Process Type: Extrusion And Pelletizing
Barrel Material: Bi-metalic Inverter: ABB
Application Field: Biodegradable Pellet Making Condition: New
Showroom Location: None Applicable Industries: Manufacturing Plant
Warranty Of Core Components: 1 Year Weight: 4000 KG
Marketing Type: Hot Product 2020

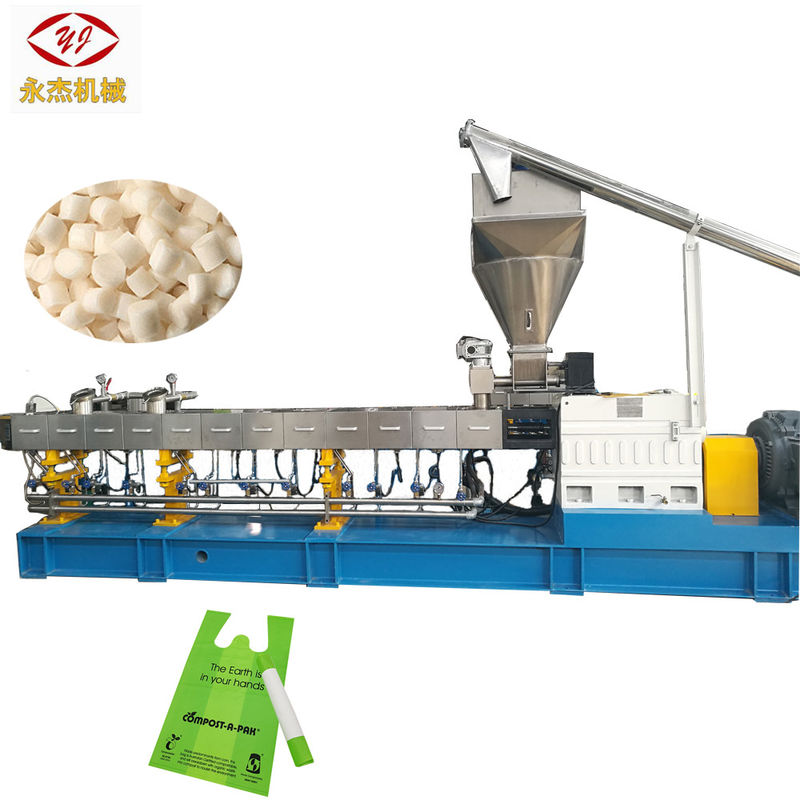

PLA biodegradable pellet making machine bio plastic machine

Product Description

 Nanjing Yongjie pla biodegradable pellet making machine is the special and innovative technique for the production of biodegradable pellet , like PBAT, PLA, PVA, PBS, PCL etc with corn starch, cassava starch, potato starch, and hgih-quality plastics pellets, which have low viscosity and high elasticity, or have special shape, such as micro-particle.

Typical Application: 1. blowing film: PVA+starch cold or hot water soluable film, shopping bag etc, PBAT+PLA+starch for biodegradable or compostable film

2. PLA+starch for injection or thermoforming of food containers, cups, forks etc  3. PLA+starch for extrusion of drinking straw etc.



Models avaialbe for pla biodegradable pellet making machine

PLA Biodegradable Pellet Making Machine Bio Plastic Machine 0

Image & Data

PLA Biodegradable Pellet Making Machine Bio Plastic Machine 2



PLA Biodegradable Pellet Making Machine Bio Plastic Machine 4



PLA Biodegradable Pellet Making Machine Bio Plastic Machine 6

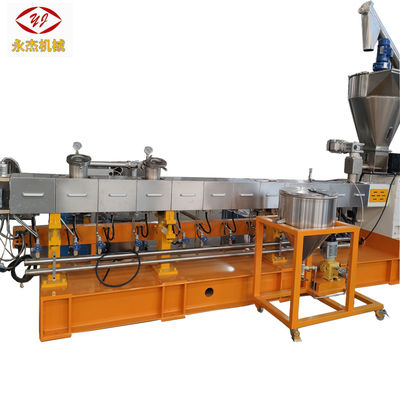

1. Machine Parts of PLA biodegradable pellet making machine bio plastic machine

Name: Twin-screw extruder
Brand: YJ
Motor: AC motor, power:75KW, brand: SIEMENS Bade,
Speed governing: Japanese ABB inverter control speed,
Revolutions:
50-600rpm
Reduction ratio: i =
 2.5:1

PLA Biodegradable Pellet Making Machine Bio Plastic Machine 8

PLA Biodegradable Pellet Making Machine Bio Plastic Machine 10

1.1.  Main Parts of

PLA biodegradable pellet making machine bio plastic machine

Name: Gearbox
Brand: YJ
Parallel tri-axial structure is combination of reduction and matrix. The gear is made of high quality alloy (20CrNi2Mo).Drive bearing: The brand of axletree: Japanese NSK.
Lubrication: Gear bearings in the gear box will be of oil immersed. There is hydraulic lubrication in the gear engagement and gear bearings.
Cooling: Lubricated cooling adopts shell and tube cooler and circulated water cooling method.

1.2. Main Parts of

PLA biodegradable pellet making machine bio plastic machine

Name: Screw
Brand: YJ
Direction of rotation: co-rotating;

The screw elements material is W6Mo5Cr4V2
(6542#)
The core axis is made of high quality alloy steel 40CrNiMo





PLA Biodegradable Pellet Making Machine Bio Plastic Machine 12

PLA Biodegradable Pellet Making Machine Bio Plastic Machine 14

2.3. Main Parts of

PLA biodegradable pellet making machine bio plastic machine

Name: Barrel
Brand: YJ
Diameter
:62.4mm
Standard: L/D: 40:1, and other available
Length: 10 sections for 40:1, 10*240mm=2400mm

Material: made of 45# forged steel with the abrasion-resistant alloy 101(Ni-Fe-Cr-W) inside, which is smooth and abrasion resistant. The hardness is HRC60-64













Company Information



Nanjing Yongjie Qixin Machinery Equipment Co., Ltd, founded in 2001, covers an area of 20,000 square meters on our own land, with yearly output of plastic extruder more than 200 sets.

Our company is committed to the research and production of single screw extrusion production line, co-rotating parallel twin screw extrusion and granule machine, tandem compounding system for extruding and granulating, twin screw extruding line for plate, profile, and automatic production line for waste film(bottle) smashing, cleaning, recycling and re-granulating etc.From the very beginning of the firm, quality is put in the first place, and our factory is certificated to CE and ISO9001:2008.

PLA Biodegradable Pellet Making Machine Bio Plastic Machine 16



Our projects

 PLA Biodegradable Pellet Making Machine Bio Plastic Machine 18

PLA Biodegradable Pellet Making Machine Bio Plastic Machine 20

Our Services



Pre-sales service
♦1. Inquiry and consulting support.
2.Selecting economical and suitable extruder and related machines for customers.
3.Providing technical details of machine.
4.Providing means of trial performance for customer.

5.Factory tour & assistance of invitation letter when needed.
Sales service
1.Recommending engineering conditions required for installation.
2.Communicating on time the manufacturing status of machines.
After-sales service
1. Engineers available to service machinery overseas in installation, commissioning and training.

2.Filing in detail customer’s order information.
3.Providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Providing free maintenance for a year.
