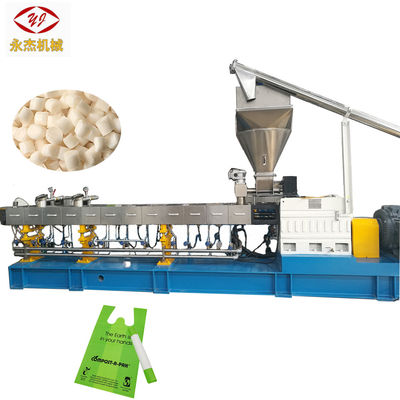

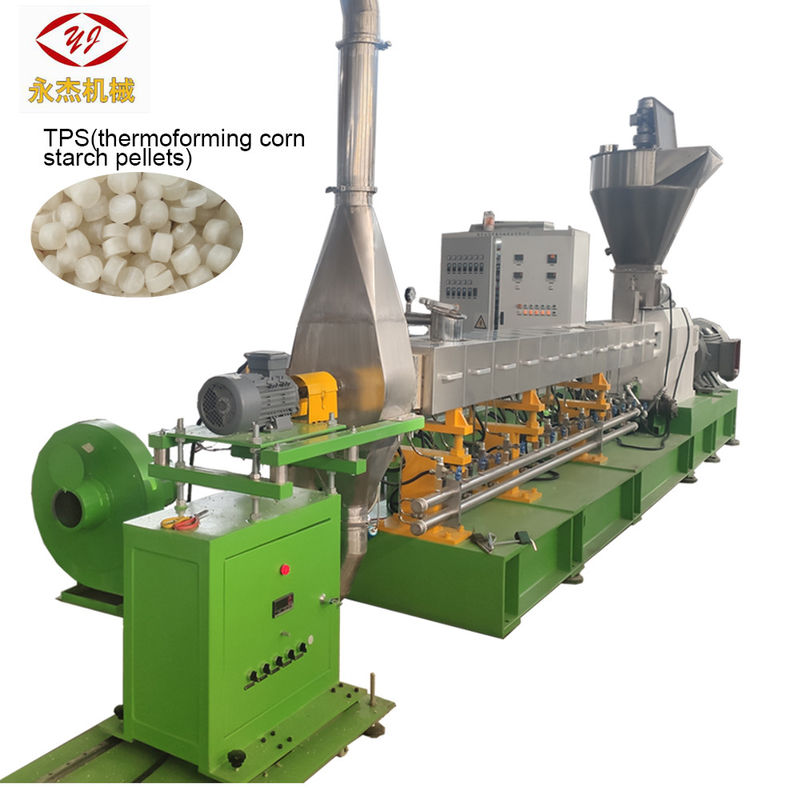

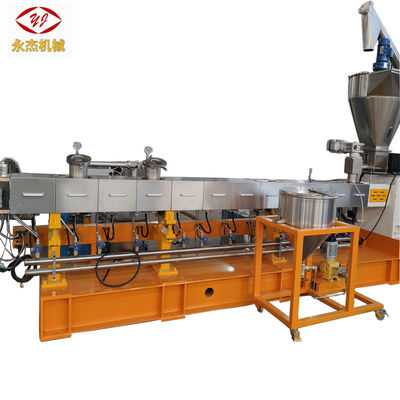

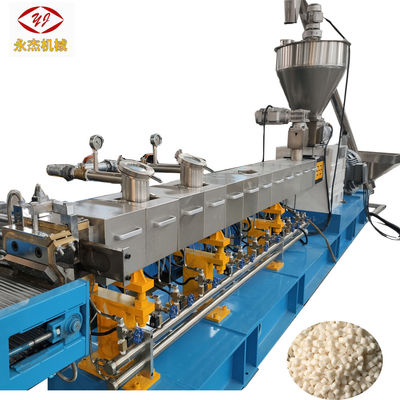

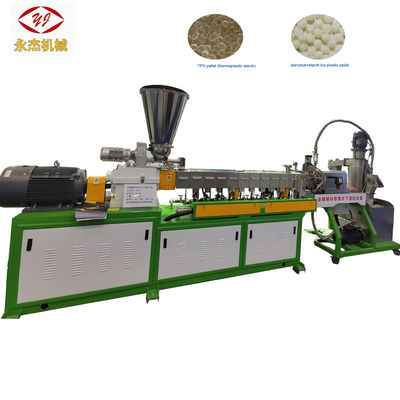

TPS Masterbatch Machine Corn Starch Plastic Pellet Machine Biodegradable Plastic Machine The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products .
Model Diameter(mm) L/D RPM ( r/min) Power (Kw) Torque(N.m) T/N Capacity (Kg/h)
SJSL-20 20 32-44 600 5.5 30 4.8 6.5-15
SJSL-36 36 32-48 600 15 115 4.2 30-75
SJSL-51A 51 32-52 500 45 405 5.1 100-200
SJSL-51B 51 32-52 600 55 415 5.2 150-25
SJSL-63A 63 32-62 400 55 620 4.4 160-250
500 75 675 4.8 200-300
SJSL-63B
63 32-64 600 90 675 4.8 225-375
800 110 620 4.4 300-500
SJSL-75A 72 32-64 400 90 1015 4.7 225-350
500 110 1005 4.6 300-550
SJSL-75B 72 32-64 600 132 990 4.6 400-650
800 160 900 4.2 480-800
SJSL-92A 92 32-64 400 250 2815 5.9 650-1050
500 2250 4.7 750-1250
SJSL-92B 92 32-64 600 280 2365 5.0 900-1500
800 2250 4.7 1200-2000
SJSL-135A 135 32-48 400 315 6190 4.6 1500-2500
SJSL-135B 135 32-48 500 400 6750 5.1 200-3500
Application for TPS Masterbatch Machine Corn Starch Plastic Pellet Machine Biodegradable Plastic Machine
1. Biodegradable and compostable plastic pelletizing machine modification: corn startch, potato starch,cassava startch compounding with PLA, PBAT, PVA etc
2. Degradable master batch: PE, PS, etc. + starch, additives etc.
3. Anti-flame master batch: PE, EVA, etc. + Mg(OH)2, Al2(OH)3, etc.
Other product
Water-ring Hot-face pelletizing line Pelletizing in the water line

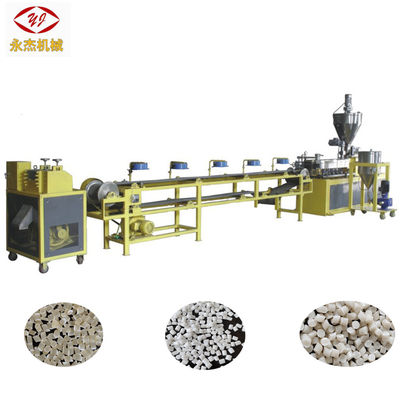

Air-cooling hot-face pelletizing line Air-cooling strand pelletizing line
FAQ
1. Are you a factory or trading company?
Both.
2. Where is your factory located? How can I visit there?
Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.
(1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;
(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.
3. What's your advantages?
(1) Excellent quality control
(2) First-class service
(3) Professional Tech. and R&D team
(4) Quick manufacturing time
(5) Quite competitive price
4. How long is the delivery time of Plastic Pelletizing Machine Biodegradable Pelletizing Machine Corn Starch Plastic Pellet Machine
?
Under normal conditions, products are delivered within 35 days.
5. How can I know the stauts of my order?
We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.
6. how long is the warranty?
We can offer one-year warranty for the whole machine.
