Name: PLA PBAT Biodegradable Plastic Granules Making Machine
Brand: Nanjing Yongjie Qixin Machinery Equipment Co., Ltd.
Availability: InStock

Home Products Corn Starch biodegradable plastic machine

PLA PBAT Biodegradable Plastic Granules Making Machine

Product Details:

Contact Now

Detailed Product Description

加工塑料类型:	PLA/PBAT/PVA	产能（kg/h）:	400 - 500 Kg/h
视频出厂验货:	可提供	机械测试报告:	可提供
核心组件:	PLC, 轴承, 齿轮箱, 电机, 齿轮, 泵	原产地:	Jiangsu, China
品牌:	Yongjie	螺杆设计:	双排
电压:	380v/440v/415v/定制	尺寸(长×宽×高):	1532.5
功率（kW）:	160	保修期:	1年
双螺杆类型:	同向平行双螺杆, 同向平行双螺杆	螺杆长径比:	48:1, 48:1
螺杆转速 (rpm):	50 - 600 Rpm	应用程序:	可生物降解玉米淀粉颗粒生产:
原材料:	PLA、PBAT、玉米淀粉添加剂	桶形隔板:	72mm
流程类型:	挤出和造粒	螺杆材料:	38CrMoA1A
温度控制器:	日本RKC	电机品牌:	贝德西门子
切割方法:	线料切割或水下切割	电磁阀:	丹佛斯

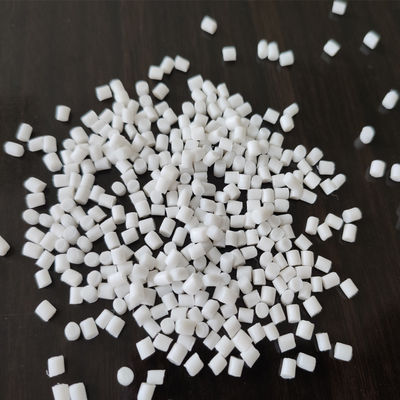

最终产品:	生物降解塑料颗粒	状态:	New
核心组件质保期:	1年	机器类型:	造粒生产线
螺杆直径（mm）:	71.8, 71.8	展示厅地点（在海外哪些国家有样品间）:	None
适用行业:	生产车间	重量:	8000

Product Description

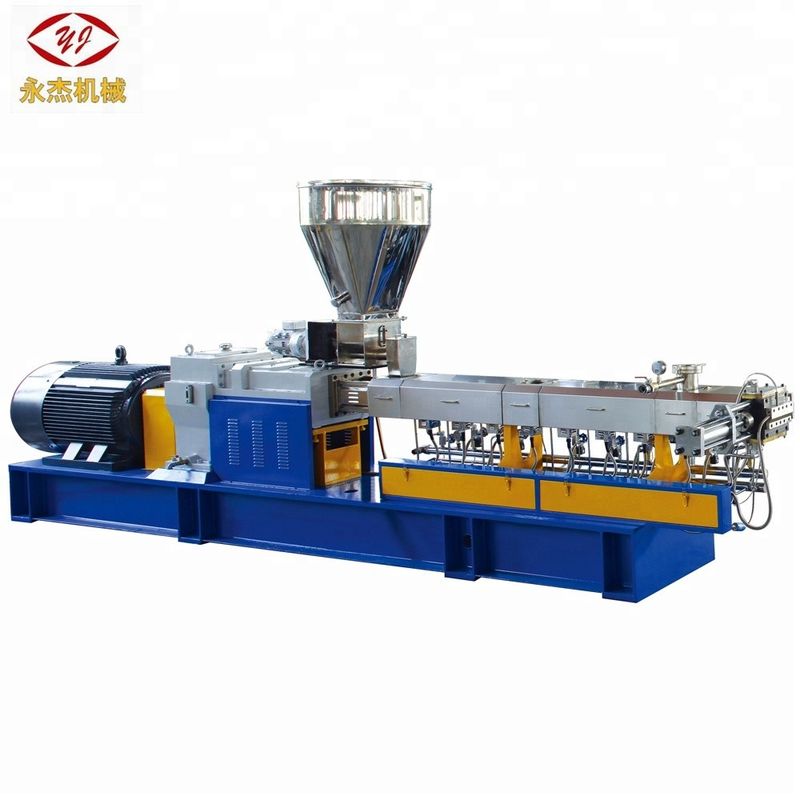

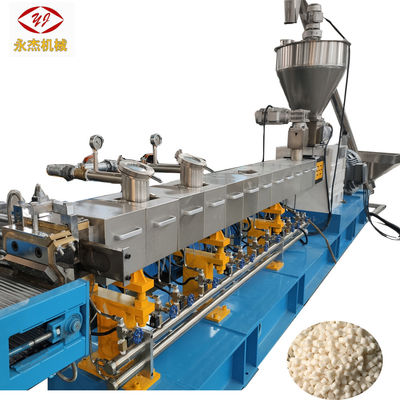

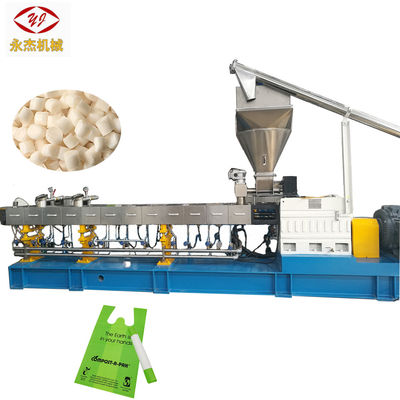

PLA PBAT biodegradable plastic granules making machine

Nanjing Yongjie started to make pet plastic recycling machine since 2005, beside for pet pellets making machine, our twin screw extruders are widely used for enforcing modification, degradab le master batch, anti-flame master batch etc.

Model type	Series	Barrel Diameter (mm)	Screw Diameter (mm)	Screw L/D	screw speed n(r/min)	Main motor power(Kw)	Screw torque T(N.m)	Torque rating (T/A³)	Typical production capacity (kg/h)
SJSL-36	A/B/C/D	36	35.6	32-48	400/600	11/15/18.5/22	125-225	4.6-8.3	30-120
SJSL-51	A/B/C/D	51	50.5	32-52	500/600	45/55/75/90	405-680	5.1-8.5	120-400
SJSL-65	A/B/C/D	63	62.4	32-64	500/600	75/90/110/132	680-1200	4.8-8.5	180-750
SJSL-75	A/B/C/D	72	71	32-64	500/600	110/132/160/250	995-1890	4.6-8.7	300-1200
SJSL-95	A/B/C/D	94	93	32-64	500/600	250/315/450/550	2260-4510	4.7-8.7	700-2500
SJSL-135	A/B/C/D	135	133	32-48	400/500	550/750/900/1200	6200-10800	4.4-7.7	1550-6500

Image & Data

PLA PBAT biodegradable pellets making machine

1. Main Parts of biodegradable plastic granules making machine

Name: Twin-screw extruder
Brand: YJMotor: AC motor, power:160KW, brand: SIEMENS Bade,
Speed governing: Sweden ABB inverter control speed,
Revolutions:600rpm
Reduction ratio: i =2.5:1

1.1. Main Parts of biodegradable plastic granules making machine

Name: Gearbox
Brand: YJ
Parallel tri-axial structure is combination of reduction and matrix. The gear is made of high quality alloy (20CrNi2Mo).Drive bearing: The brand of axletree: Japanese NSK.
Lubrication: Gear bearings in the gear box will be of oil immersed. There is hydraulic lubrication in the gear engagement and gear bearings.
Cooling: Lubricated cooling adopts shell and tube cooler and circulated water cooling method.

1.2.Main Parts of biodegradable plastic granules making machine

Name: Screw
Brand: YJ
Direction of rotation: co-rotating;
The screw elements material is W6Mo5Cr4V2(6542#)
The core axis is made of high quality alloy steel 40CrNiMo

Company Information

Nanjing Yongjie Qixin Machinery Equipment Co., Ltd, founded in 2001, started to export since 2005,

covers an area of 20,000 square meters on our own land, with yearly output of plastic extruder morethan 200 sets.

Our company is committed to the research and production of single screw extrusion production line,co-rotating

parallel twin screw extrusion and granule machine, tandem compounding system for extruding

and granulating, twin screw extruding line for plate, profile, and automatic production line for waste

film(bottle) smashing, cleaning, recycling and re-granulating etc.

QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
