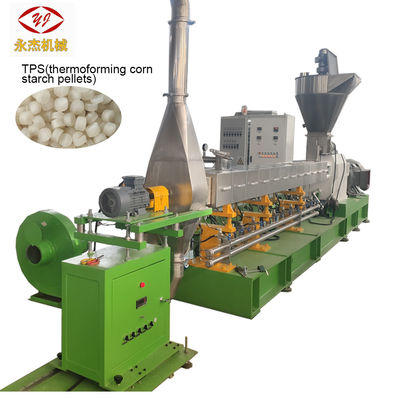

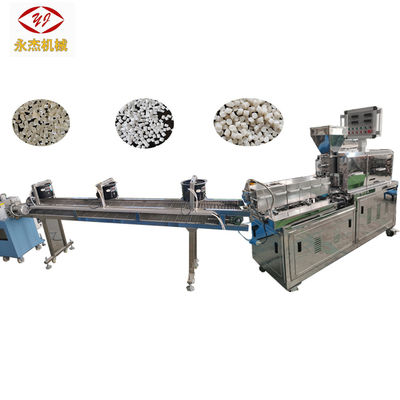

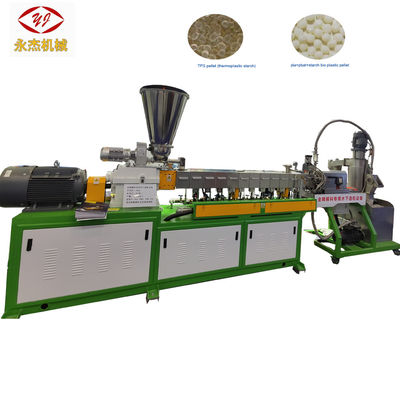

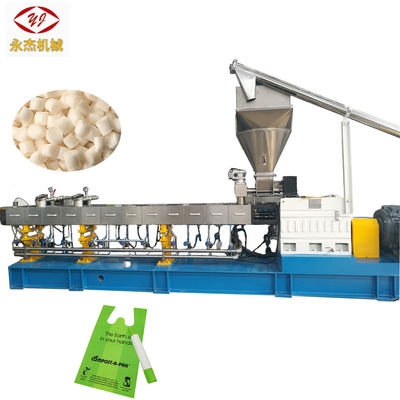

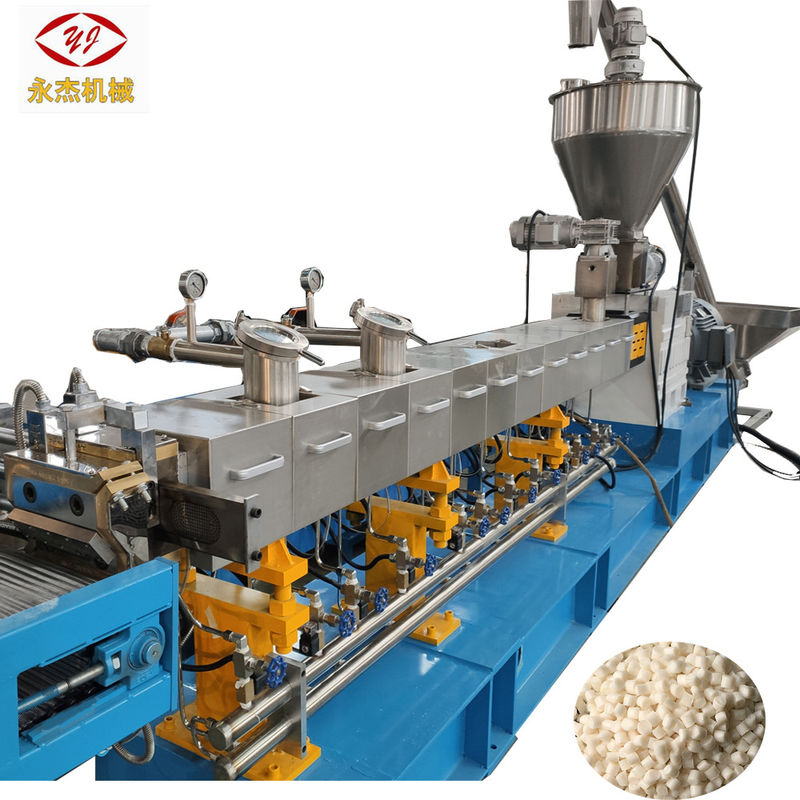

PLA PBAT PVA +starch Granulator Machine Corn Starch Biodegradable Twin Screw Extruder Bio Plastic Machine

PLA PBAT PVA +starch Granulator Machine Corn Starch Biodegradable Twin Screw Extruder Bio Plastic Machine

  • PLA PBAT PVA +starch  Granulator Machine Corn Starch Biodegradable Twin Screw Extruder Bio Plastic Machine
  • PLA PBAT PVA +starch  Granulator Machine Corn Starch Biodegradable Twin Screw Extruder Bio Plastic Machine
  • PLA PBAT PVA +starch  Granulator Machine Corn Starch Biodegradable Twin Screw Extruder Bio Plastic Machine
  • PLA PBAT PVA +starch  Granulator Machine Corn Starch Biodegradable Twin Screw Extruder Bio Plastic Machine
  • PLA PBAT PVA +starch  Granulator Machine Corn Starch Biodegradable Twin Screw Extruder Bio Plastic Machine
  • PLA PBAT PVA +starch  Granulator Machine Corn Starch Biodegradable Twin Screw Extruder Bio Plastic Machine
  • PLA PBAT PVA +starch  Granulator Machine Corn Starch Biodegradable Twin Screw Extruder Bio Plastic Machine
PLA PBAT PVA +starch  Granulator Machine Corn Starch Biodegradable Twin Screw Extruder Bio Plastic Machine
Product Details:
Contact Now
Detailed Product Description
加工塑料类型: 聚乳酸, PBAT 产能(kg/h): 300 - 500 Kg/h
视频出厂验货: 可提供 机械测试报告: 可提供
核心组件: PLC, 齿轮箱, 电机 原产地: Jiangsu, China
品牌: Yongjie 螺杆设计: 双排
电压: 380v 50hz或定制 尺寸(长×宽×高): 30*3*2.6
功率 (kW): 132 保修期: 1年
双螺杆类型: 同向平行双螺杆 螺杆转速 (rpm): 50 - 600 Rpm
颜色: Custmoized 应用程序: 生物塑料造粒
提前期: 30-45天 切割方式: 空气绞线
螺杆材料: 38CrMoAlA 电机品牌: 西门子贝德
流程类型: 挤出和造粒 逆变器: ABB
枪管材料: 38CrMoAlA 螺钉扭矩: 1200*2 T(N.m)
营销类型: 2020年新产品 状态: New
核心组件质保期: 1年 机器类型: 造粒生产线
展示厅地点(在海外哪些国家有样品间): None 适用行业: 生产车间
重量: 5.5

PLA PBAT PVA +starch  granulator machine corn starch biodegradable twin screw extruder bio plastic machine

Product Description

 Nanjing Yongjie bio plastic machine is the special and innovative technique for the production of biodegradable pellet , like PBAT, PLA, PVA, PBS, PCL etc with corn starch, cassava starch, potato starch, and hgih-quality plastics pellets, which have low viscosity and high elasticity, or have special shape, such as micro-particle.

Typical Application: 1. blowing film: PVA+starch cold or hot water soluable film, shopping bag etc, PBAT+PLA+starch for biodegradable or compostable film

2. PLA+starch for injection or thermoforming of food containers, cups, forks etc  3. PLA+starch for extrusion of drinking straw etc.



Models avaialbe for bio plastic machine

PLA PBAT PVA +starch  Granulator Machine Corn Starch Biodegradable Twin Screw Extruder Bio Plastic Machine 0

Image & Data

 PLA PBAT PVA +starch  Granulator Machine Corn Starch Biodegradable Twin Screw Extruder Bio Plastic Machine 2



PLA PBAT PVA +starch  Granulator Machine Corn Starch Biodegradable Twin Screw Extruder Bio Plastic Machine 4



PLA PBAT PVA +starch  Granulator Machine Corn Starch Biodegradable Twin Screw Extruder Bio Plastic Machine 6











1. Machine Parts of  PLA PBAT PVA corn starch biodegradable twin screw extruder bio plastic machine

Name: Twin-screw extruder
Brand: YJ
Motor: AC motor, power:75KW, brand: SIEMENS Bade,
Speed governing: Japanese ABB inverter control speed,
Revolutions:
50-600rpm
Reduction ratio: i =
 2.5:1

PLA PBAT PVA +starch  Granulator Machine Corn Starch Biodegradable Twin Screw Extruder Bio Plastic Machine 8

PLA PBAT PVA +starch  Granulator Machine Corn Starch Biodegradable Twin Screw Extruder Bio Plastic Machine 10

1.1.  Main Parts of PLA PBAT PVA corn starch biodegradable twin screw extruder bio plastic machine

Name: Gearbox
Brand: YJ
Parallel tri-axial structure is combination of reduction and matrix. The gear is made of high quality alloy (20CrNi2Mo).Drive bearing: The brand of axletree: Japanese NSK.
Lubrication: Gear bearings in the gear box will be of oil immersed. There is hydraulic lubrication in the gear engagement and gear bearings.
Cooling: Lubricated cooling adopts shell and tube cooler and circulated water cooling method.

1.2. Main Parts of PLA PBAT PVA corn starch biodegradable twin screw extruder bio plastic machine

Name: Screw
Brand: YJ
Direction of rotation: co-rotating;

The screw elements material is W6Mo5Cr4V2
(6542#)
The core axis is made of high quality alloy steel 40CrNiMo





PLA PBAT PVA +starch  Granulator Machine Corn Starch Biodegradable Twin Screw Extruder Bio Plastic Machine 12

PLA PBAT PVA +starch  Granulator Machine Corn Starch Biodegradable Twin Screw Extruder Bio Plastic Machine 14

2.3. Main Parts of  PLA PBAT PVA corn starch biodegradable twin screw extruder bio plastic machine

Name: Barrel
Brand: YJ
Diameter
:62.4mm
Standard: L/D: 40:1, and other available
Length: 10 sections for 40:1, 10*240mm=2400mm

Material: made of 45# forged steel with the abrasion-resistant alloy 101(Ni-Fe-Cr-W) inside, which is smooth and abrasion resistant. The hardness is HRC60-64













Company Information



Nanjing Yongjie Qixin Machinery Equipment Co., Ltd, founded in 2001, covers an area of 20,000 square meters on our own land, with yearly output of plastic extruder more than 200 sets.

Our company is committed to the research and production of single screw extrusion production line, co-rotating parallel twin screw extrusion and granule machine, tandem compounding system for extruding and granulating, twin screw extruding line for plate, profile, and automatic production line for waste film(bottle) smashing, cleaning, recycling and re-granulating etc.From the very beginning of the firm, quality is put in the first place, and our factory is certificated to CE and ISO9001:2008.

PLA PBAT PVA +starch  Granulator Machine Corn Starch Biodegradable Twin Screw Extruder Bio Plastic Machine 16



Our projects

 PLA PBAT PVA +starch  Granulator Machine Corn Starch Biodegradable Twin Screw Extruder Bio Plastic Machine 18

PLA PBAT PVA +starch  Granulator Machine Corn Starch Biodegradable Twin Screw Extruder Bio Plastic Machine 20

Our Services



Pre-sales service
♦1. Inquiry and consulting support.
2.Selecting economical and suitable extruder and related machines for customers.
3.Providing technical details of machine.
4.Providing means of trial performance for customer.

5.Factory tour & assistance of invitation letter when needed.
Sales service
1.Recommending engineering conditions required for installation.
2.Communicating on time the manufacturing status of machines.
After-sales service
1. Engineers available to service machinery overseas in installation, commissioning and training.

2.Filing in detail customer’s order information.
3.Providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Providing free maintenance for a year.

PLA PBAT PVA +starch  Granulator Machine Corn Starch Biodegradable Twin Screw Extruder Bio Plastic Machine 22

Packaging & Shipping



PLA PBAT PVA +starch  Granulator Machine Corn Starch Biodegradable Twin Screw Extruder Bio Plastic Machine 24
