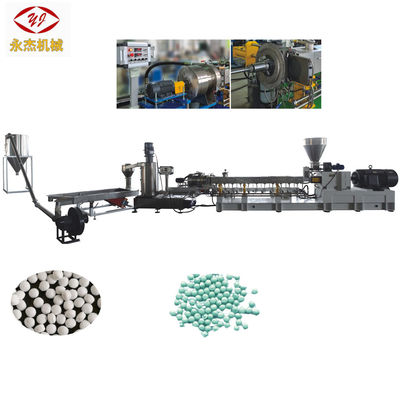

Name: 2.5tons/h Twin Screw Masterbatch Extruder PE PP Filler Master Batch Machine
Brand: Nanjing Yongjie Qixin Machinery Equipment Co., Ltd.
Availability: InStock

Home Products High filler masterbatch machine

2.5tons/h Twin Screw Masterbatch Extruder PE PP Filler Master Batch Machine

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	YongJie

Contact Now

Detailed Product Description

Plastic Processed:	PE PP+caco3	Application:	Granules
Screw Design:	Double-screw	Twin Screw Type:	Co-rotating Parallel Twin-screw
Screw Material:	W6Mo5Cr4V2	Screw Diameter (mm):	71 Mm
Screw L/D Ratio:	52:1	Screw Speed (rpm):	800 Rpm
Voltage:	380V 50HZ Or Customized	Dimension(lwh):	Model
Power (kw):	315	Warranty:	1 Year
Key Selling Points:	High Productivity	Video Outgoing-inspection:	Provided
Core Components:	Motor, PLC, Gearbox	Machinery Test Report:	Provided
Keyword:	Twin Screw Masterbatch Extruder	Twin Screw Extruder Warranty:	1 Year
Masterbatch Extruder Machine L/D:	48-52	Torque(N.m):	3800
T/N:	8.7	Working For:	PP PE High Filler Master Batch
Gearbox Type:	High Torque D Type	Screw Max Speed:	800rpm
Torque Grade:	8.7 T/A3	Inverter:	ABB Inverter
Marketing Type:	New Product 2020	Condition:	New
Showroom Location:	None	Applicable Industries:	Manufacturing Plant
Warranty Of Core Components:	1 Year	Weight:	10

2.5tons/h Twin Screw Masterbatch Extruder PE PP Filler Master Batch Machine

Product Description

Nanjing Yongjie started to make twin screw masterbatch extruder since 2002, beside for twin screw masterbatch extruder, our twin screw extruders are widely used for enforcing modification, degradab le master batch, anti-flame master batch etc.

Model type	Series	Barrel Diameter (mm)	Screw Diameter (mm)	Screw L/D	screw speed n(r/min)	Main motor power(Kw)	Screw torque T(N.m)	Torque rating (T/A³)	Typical production capacity (kg/h)
SJSL-36	A/B/C/D	36	35.6	32-48	400/600	11/15/18.5/22	125-225	4.6-8.3	30-120
SJSL-51	A/B/C/D	51	50.5	32-52	500/600	45/55/75/90	405-680	5.1-8.5	120-400
SJSL-65	A/B/C/D	63	62.4	32-64	500/600	75/90/110/132	680-1200	4.8-8.5	180-750
SJSL-75	A/B/C/D	72	71	32-64	500/600	110/132/160/250	995-1890	4.6-8.7	300-1200
SJSL-95	A/B/C/D	94	93	32-64	500/600	250/315/450/550	2260-4510	4.7-8.7	700-2500
SJSL-135	A/B/C/D	135	133	32-48	400/500	550/750/900/1200	6200-10800	4.4-7.7	1550-6500

Image & Data

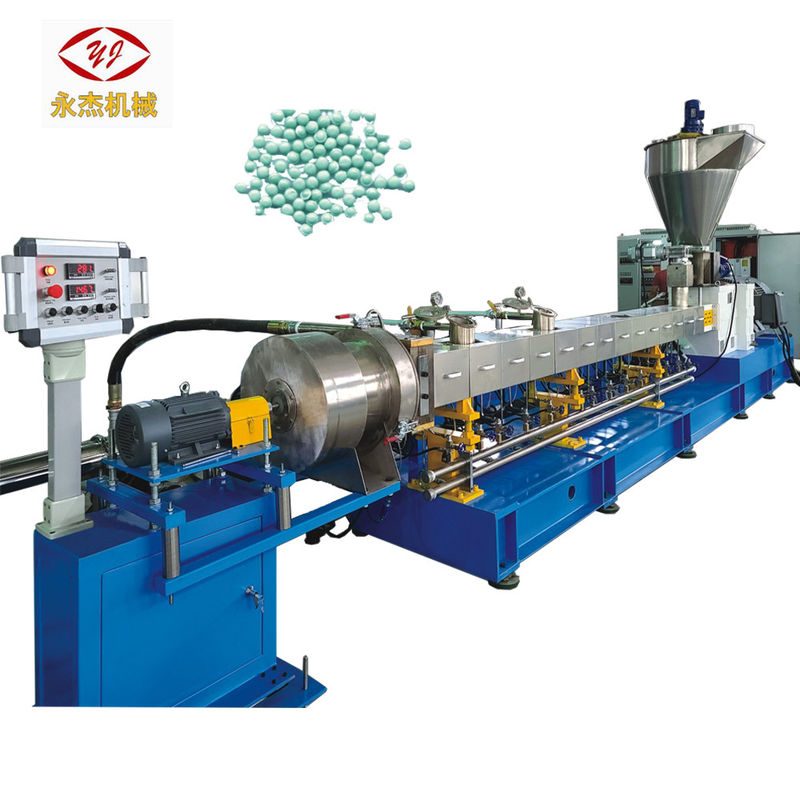

twin screw masterbatch extruder sjsl75D making filler masterbatch 2000-25000kg/h

1. Main Parts of twin screw masterbatch extruder

Name: Twin-screw extruder
Brand: YJMotor: AC motor, power:75KW, brand: SIEMENS Bade,
Speed governing: Japanese ABB inverter control speed,
Revolutions:800rpm for filler masterbatch/300rpm for pet flake
Reduction ratio: i =1.9/5:1

1.1. Main Parts of twin screw masterbatch extruder

Name: Gearbox
Brand: YJ
Parallel tri-axial structure is combination of reduction and matrix. The gear is made of high quality alloy (20CrNi2Mo).Drive bearing: The brand of axletree: Japanese NSK.
Lubrication: Gear bearings in the gear box will be of oil immersed. There is hydraulic lubrication in the gear engagement and gear bearings.
Cooling: Lubricated cooling adopts shell and tube cooler and circulated water cooling method.

1.2.Main Parts of twin screw extruder filler masterbatch machine

Name: Gearbox

Name: Screw
Brand: YJ
Direction of rotation: co-rotating;
The screw elements material is W6Mo5Cr4V2(6542#)
The core axis is made of high quality alloy steel 40CrNiMo

Company Information

Nanjing Yongjie Qixin Machinery Equipment Co., Ltd, founded in 2001, started to export since 2005,

covers an area of 20,000 square meters on our own land, with yearly output of plastic extruder morethan 200 sets.

Our company is committed to the research and production of single screw extrusion production line,co-rotating

parallel twin screw extrusion and granule machine, tandem compounding system for extruding

and granulating, twin screw extruding line for plate, profile, and automatic production line for waste

film(bottle) smashing, cleaning, recycling and re-granulating etc.

QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.

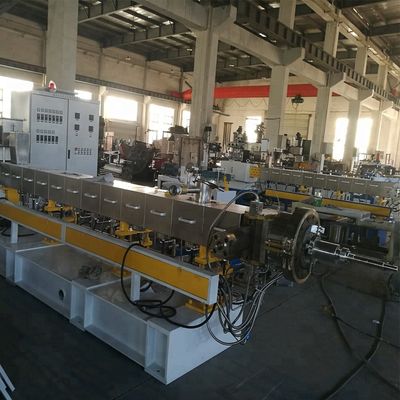

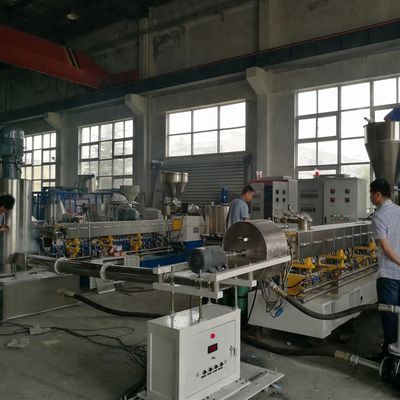

Our projects
