Name: PE Dessicant Caco3 Filler Masterbatch Machine
Brand: Nanjing Yongjie Qixin Machinery Equipment Co., Ltd.
Availability: InStock

Home Products High filler masterbatch machine

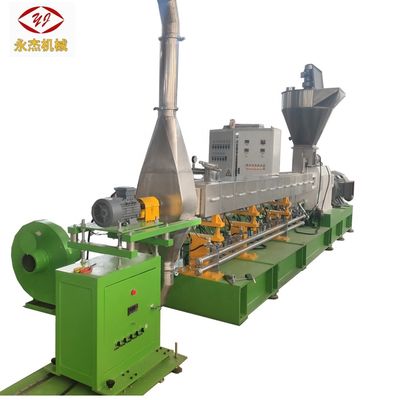

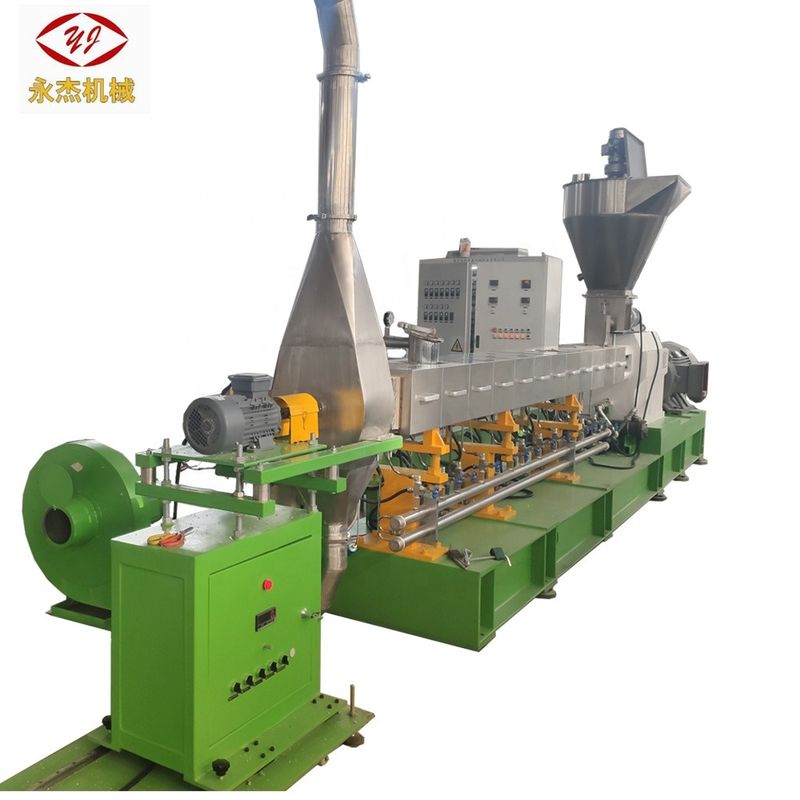

PE Dessicant Caco3 Filler Masterbatch Machine

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	YongJie

Contact Now

Detailed Product Description

Plastic Processed:	PE, PP, PVC, Wood-plastic, PE/PP	Application:	Granules
Screw Design:	Double-screw	Twin Screw Type:	Co-rotating Parallel Twin-screw
Screw Material:	38CrMoALA	Screw Diameter (mm):	71
Screw L/D Ratio:	40:1	Screw Speed (rpm):	500 Rpm
Voltage:	380V 50HZ	Dimension(lwh):	Model
Power (kw):	132	Warranty:	1 Year
Key Selling Points:	Automatic	Video Outgoing-inspection:	Provided
Core Components:	Motor, PLC, Gearbox	Machinery Test Report:	Provided
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Application Field:	Wood Plastic Pelletizing Machine
Name:	YongJie	Barrel Material:	38CrMoALA
Color:	Any Color As Your Require	Inverter:	ABB Brand
Motor Brand:	WN/Siemens Beide	RPM ( R/min):	400/500/600/800
Torque(N.m):	1015/1005/990/900	T/N:	4.7/4.6/4.2
Marketing Type:	Hot Product 2019	Condition:	New
Showroom Location:	None	Applicable Industries:	Manufacturing Plant
Warranty Of Core Components:	1 Year	Weight:	1 KG

PE dessicant caco3 filler masterbatch machine

The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder caco3 filler masterbatch and dessicant master batch machine. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.

Model	Diameter(mm)	L/D	RPM ( r/min)	Power (Kw)	Torque(N.m)	T/N	Capacity (Kg/h)
SJSL-20	20	32-44	600	5.5	30	4.8	6.5-15
SJSL-36	36	32-48	600	15	115	4.2	30-75
SJSL-51A	51	32-52	500	45	405	5.1	100-200
SJSL-51B	51	32-52	600	55	415	5.2	150-25
SJSL-63A	63	32-62	400	55	620	4.4	160-250
SJSL-63A	63	32-62	500	75	675	4.8	200-300
SJSL-63B	63	32-64	600	90	675	4.8	225-375
SJSL-63B	63	32-64	800	110	620	4.4	300-500
SJSL-75A	72	32-64	400	90	1015	4.7	225-350
SJSL-75A	72	32-64	500	110	1005	4.6	300-550
SJSL-75B	72	32-64	600	132	990	4.6	400-650
SJSL-75B	72	32-64	800	160	900	4.2	480-800
SJSL-92A	92	32-64	400	250	2815	5.9	650-1050
SJSL-92A	92	32-64	500	250	2250	4.7	750-1250
SJSL-92B	92	32-64	600	280	2365	5.0	900-1500
SJSL-92B	92	32-64	800	280	2250	4.7	1200-2000
SJSL-135A	135	32-48	400	315	6190	4.6	1500-2500
SJSL-135B	135	32-48	500	400	6750	5.1	200-3500

Application caco3 filler masterbatch and dessicant master batch machine

1. Masterbatch enforcing modification: PE, EVA + calcium carbonate, talc, titanium

dioxide, PVC, PP, carbon black.

2. Degradable master batch: PE, PS, etc. + starch, additives etc.

3. Anti-flame master batch: PE, EVA, etc. + Mg(OH)2, Al2(OH)3, etc.

Auxiliary

Air-cooling pelletizer cover
cyclone
Blower
Vibrating sieve
Product bin

Other product

Pelletizing in the water line

Air-cooling strand pelletizing line

Water-ring Hot-face pelletizing line

Water-cooling stand pelletizing line

FAQ

1. Are you a factory or trading company?

Both.

2. Where is your factory located? How can I visit there?

Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.

(1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;

(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.

3. What's your advantages?

(1) Excellent quality control

(2) First-class service

(3) Professional Tech. and R&D team

(4) Quick manufacturing time

(5) Quite competitive price

4. How long is the delivery time?

Under normal conditions, products are delivered within 35 days.

5. How can I know the stauts of my order?

We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.

6. How long is the warranty?

We can offer one-year warranty for the whole machine.
