Three Screw Extruder PP PE Talc Carbon Black Caco3 High Filler Masterbatch Machine

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	YongJie

Contact Now

Detailed Product Description

Plastic Processed:	PE PP+caco3	Application:	Granules
Screw Design:	Triple Screw	Screw Material:	W6Mo5Cr4V2
Screw Diameter (mm):	71 Mm	Screw L/D Ratio:	52:1
Screw Speed (rpm):	800 Rpm	Voltage:	380V 50HZ Or Customized
Dimension(lwh):	Model	Power (kw):	220
Warranty:	1 Year	Key Selling Points:	High Productivity
Video Outgoing-inspection:	Provided	Core Components:	Motor, PLC, Gearbox
Machinery Test Report:	Provided	Keyword:	Three Screw Masterbatch Extruder
Twin Screw Extruder Warranty:	1 Year	Masterbatch Extruder Machine L/D:	48-52
Torque(N.m):	3800	T/N:	8.7
Working For:	PP PE High Filler Master Batch	Gearbox Type:	High Torque D Type
Screw Max Speed:	600rpm	Torque Grade:	8.7 T/A3
Inverter:	ABB Inverter	Marketing Type:	New Product 2020
Condition:	New	Showroom Location:	None
Applicable Industries:	Manufacturing Plant	Warranty Of Core Components:	1 Year
Weight:	10 KG

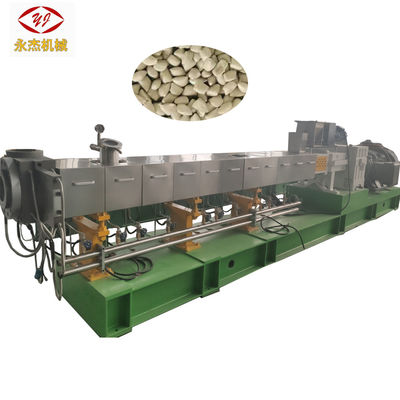

Three screw extruder PP PE talc carbon black caco3 high filler masterbatch machine

Product Description

Nanjing Yongjie started to make three screw masterbatch extruder since 2018, beside for three screw extruder, our twin screw extruders are widely used for enforcing modification, degradab le master batch, anti-flame master batch etc.

Model type	Series	Barrel Diameter (mm)	Screw Diameter (mm)	Screw L/D	screw speed n(r/min)	Main motor power(Kw)	Screw torque T(N.m)	Torque rating (T/A³)	Typical production capacity (kg/h)
SJSL-36	A/B/C/D	36	35.6	32-48	400/600	11/15/18.5/22	125-225	4.6-8.3	30-120
SJSL-51	A/B/C/D	51	50.5	32-52	500/600	45/55/75/90	405-680	5.1-8.5	120-400
SJSL-65	A/B/C/D	63	62.4	32-64	500/600	75/90/110/132	680-1200	4.8-8.5	180-750
SJSL-75	A/B/C/D	72	71	32-64	500/600	110/132/160/250	995-1890	4.6-8.7	300-1200
SJSL-95	A/B/C/D	94	93	32-64	500/600	250/315/450/550	2260-4510	4.7-8.7	700-2500
SJSL-135	A/B/C/D	135	133	32-48	400/500	550/750/900/1200	6200-10800	4.4-7.7	1550-6500

Image & Data

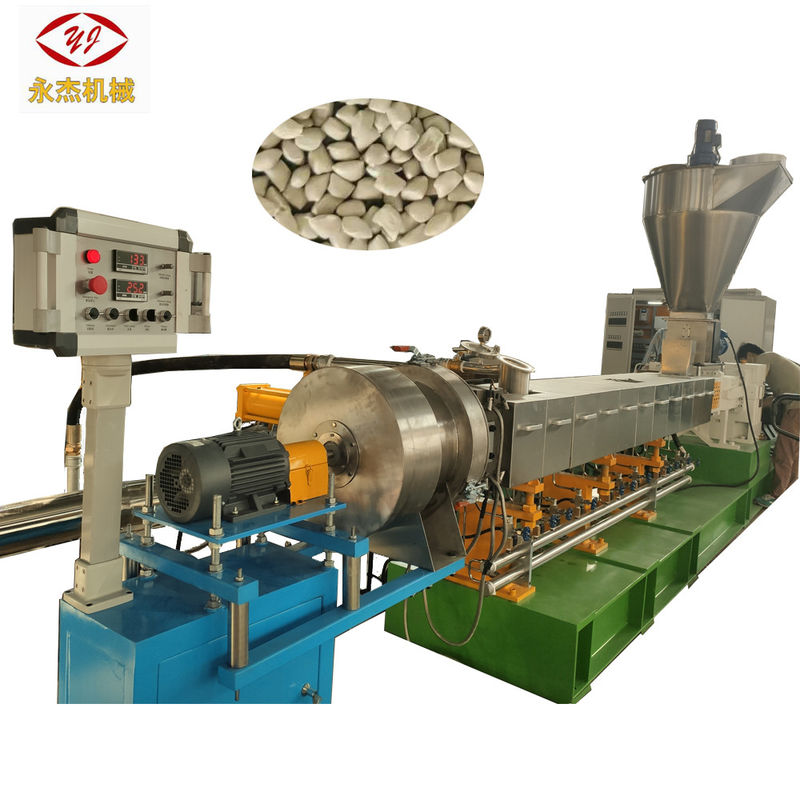

Three screw extruder can make PP/PE +70-75% talc or carbon black PP/PE+85-90% caco3 filler masterbatch

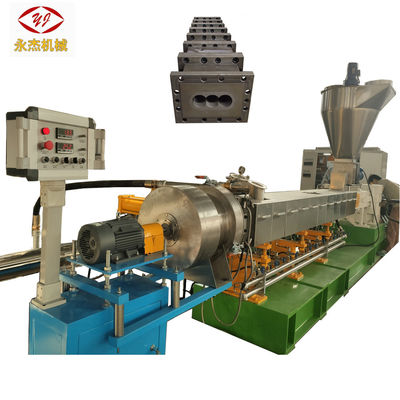

1. Main Parts of three screw extruder high filler masterbatch machine

Name: Twin-screw extruder
Brand: YJMotor: AC motor, power:75KW, brand: SIEMENS Bade,
Speed governing: Japanese ABB inverter control speed,
Revolutions:800rpm for filler masterbatch/300rpm for pet flake
Reduction ratio: i =1.9/5:1

1.1. Main Parts of three screw extruder high filler masterbatch machine

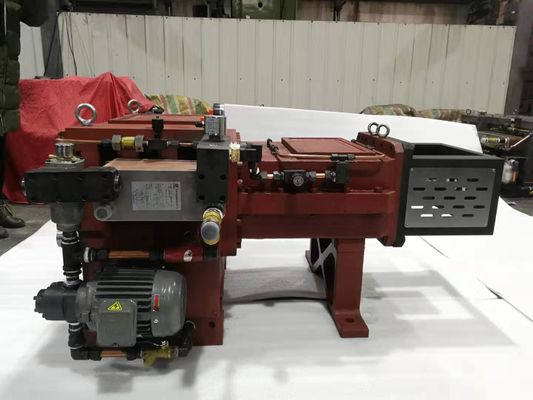

Name: Gearbox
Brand: YJ
Parallel tri-axial structure is combination of reduction and matrix. The gear is made of high quality alloy (20CrNi2Mo).Drive bearing: The brand of axletree: Japanese NSK.
Lubrication: Gear bearings in the gear box will be of oil immersed. There is hydraulic lubrication in the gear engagement and gear bearings.
Cooling: Lubricated cooling adopts shell and tube cooler and circulated water cooling method.

1.2.Main Parts of three screw extruder high filler masterbatch machine

Name: Gearbox

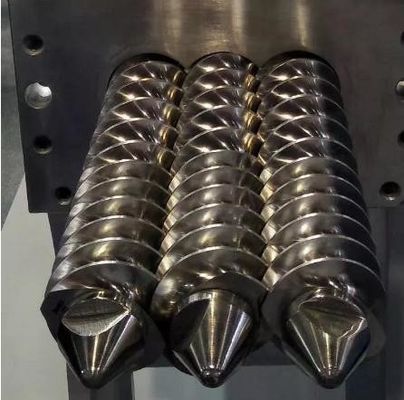

Name: Screw
Brand: YJ
Direction of rotation: co-rotating;
The screw elements material is W6Mo5Cr4V2(6542#)
The core axis is made of high quality alloy steel 40CrNiMo

Company Information

Nanjing Yongjie Qixin Machinery Equipment Co., Ltd, founded in 2001, started to export since 2005,

covers an area of 20,000 square meters on our own land, with yearly output of plastic extruder morethan 200 sets.

Our company is committed to the research and production of single screw extrusion production line,co-rotating

parallel twin screw extrusion and granule machine, tandem compounding system for extruding

and granulating, twin screw extruding line for plate, profile, and automatic production line for waste

film(bottle) smashing, cleaning, recycling and re-granulating etc.

QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
