PE, ABS, EVA Plastic Masterbatch Granules Making Machine

PE, ABS, EVA Plastic Masterbatch Granules Making Machine

  • PE, ABS, EVA Plastic Masterbatch Granules Making Machine
  • PE, ABS, EVA Plastic Masterbatch Granules Making Machine
  • PE, ABS, EVA Plastic Masterbatch Granules Making Machine
  • PE, ABS, EVA Plastic Masterbatch Granules Making Machine
  • PE, ABS, EVA Plastic Masterbatch Granules Making Machine
  • PE, ABS, EVA Plastic Masterbatch Granules Making Machine
  • PE, ABS, EVA Plastic Masterbatch Granules Making Machine
PE, ABS, EVA Plastic Masterbatch Granules Making Machine
Product Details:
Place of Origin: Jiangsu, China
Brand Name: YongJie
Certification: CE ISO9001
Model Number: SJSL-92A/B
Contact Now
Detailed Product Description
Plastic Processed: PP/PVC/WPC/PE/ABS/XPS/Polystyrene Application: Granules
Screw Design: Double-screw Voltage: 380V 50HZ
Dimension(l*w*h): Model After-sales Service Provided: Engineers Available To Service Machinery Overseas
Keyword: Plastic Masterbatch Making Machine Name: YongJie
Warranty: 1 Year Color: Any Color As Your Require
Diameter(mm): 92 L/D: 32-64
RPM ( R/min): 400/500/600/800 T/N: 5.9/4.7/5.0
Capacity (Kg/h): 650-2000 Torque(N.m): 2815/2250/2365/2250
Automatic Grade: High Automation Power: 250/280kw
Condition: New Weight: 1t-10t

PE, ABS, EVA plastic masterbatch granules making machine

              The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.

                                      Model          Diameter(mm)                                        L/D         RPM ( r/min)                            Power   (Kw)  Torque(N.m)                                      T/N                                 Capacity (Kg/h)
SJSL-202032-446005.5304.86.5-15
SJSL-363632-48600151154.230-75
SJSL-51A5132-52500454055.1100-200
SJSL-51B5132-52600554155.2150-25
SJSL-63A6332-62400     55       620      4.4     160-250
500756754.8200-300

SJSL-63B

6332-64600    90      675      4.8      225-375
8001106204.4300-500
SJSL-75A7232-64400    90       1015   4.7      225-350
50011010054.6300-550
SJSL-75B7232-64600    132      990     4.6      400-650
8001609004.2480-800
SJSL-92A9232-64400    2502815   5.9      650-1050
50022504.7750-1250
SJSL-92B9232-64600    2802365   5.0      900-1500
80022504.71200-2000
SJSL-135A13532-4840031561904.61500-2500
SJSL-135B13532-4850040067505.1200-3500
PE, ABS, EVA Plastic Masterbatch Granules Making Machine 0

PE, ABS, EVA Plastic Masterbatch Granules Making Machine 2PE, ABS, EVA Plastic Masterbatch Granules Making Machine 4

Application for water-ring hot face production line

1. Filling master batch: PE, EVA, etc. + caco3, talc, filling modified and carbon black etc.

2. LDPE, HDPE, LLDPE, MDPE, drivepipe, insulation material, crosslinking material,

   cable coating material , thermal contraction pipe material.

3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic

   elastomer, EVA and hot melt additives.

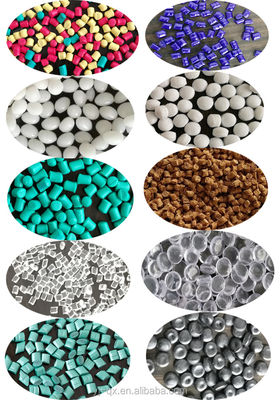

4. Color mater batch: PE, ABS, PS, EVA master batch, etc.

5. ABS, EVA flaming retarding master batch, etc.

6. PE, PP, PS filling and biodegradable masterbatch, etc.



Auxiliary

Water-ring cover



pelletizer

PE, ABS, EVA Plastic Masterbatch Granules Making Machine 6

Centrifugal dehydrator

PE, ABS, EVA Plastic Masterbatch Granules Making Machine 8

Vibrating sieve

PE, ABS, EVA Plastic Masterbatch Granules Making Machine 10

Bin

PE, ABS, EVA Plastic Masterbatch Granules Making Machine 12

Other product





Pelletizing in the water line

PE, ABS, EVA Plastic Masterbatch Granules Making Machine 14







Air-cooling strand pelletizing line



PE, ABS, EVA Plastic Masterbatch Granules Making Machine 16





Air-cooling hot-face pelletizing line



PE, ABS, EVA Plastic Masterbatch Granules Making Machine 18



Water-cooling stand pelletizing line



PE, ABS, EVA Plastic Masterbatch Granules Making Machine 20



PE, ABS, EVA Plastic Masterbatch Granules Making Machine 22



PE, ABS, EVA Plastic Masterbatch Granules Making Machine 24



PE, ABS, EVA Plastic Masterbatch Granules Making Machine 26



PE, ABS, EVA Plastic Masterbatch Granules Making Machine 28

FAQ



1. Are you a factory or trading company?



     Both.



2. Where is your factory located? How can I visit there?



   Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.



   (1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;



   (2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.

3. What's your advantages?

   (1) Excellent quality control



   (2) First-class service



   (3) Professional Tech. and R&D team



   (4) Quick manufacturing time



   (5) Quite competitive price



4. How long is the delivery time?



    Under normal conditions, products are delivered within 35 days.



5. How can I know the stauts of my order?



    We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.



6. How long is the warranty?



    We can offer one-year warranty for the whole machine.
