OEM Twin Screw Plastic Extruder Machine for Masterbatch

OEM Twin Screw Plastic Extruder Machine for Masterbatch

  • OEM Twin Screw Plastic Extruder Machine for Masterbatch
  • OEM Twin Screw Plastic Extruder Machine for Masterbatch
  • OEM Twin Screw Plastic Extruder Machine for Masterbatch
  • OEM Twin Screw Plastic Extruder Machine for Masterbatch
  • OEM Twin Screw Plastic Extruder Machine for Masterbatch
  • OEM Twin Screw Plastic Extruder Machine for Masterbatch
OEM Twin Screw Plastic Extruder Machine for Masterbatch
Product Details:
Place of Origin: Jiangsu, China
Brand Name: YongJie
Certification: CE ISO9001
Contact Now
Detailed Product Description
Plastic Processed: PP/PVC/WPC/PE/ABS/XPS/Polystyrene Application: Granules
Screw Design: Double-screw Screw Diameter (mm): 62.4 Mm
Voltage: 380V 50HZ Dimension(l*w*h): Model
Warranty: 1 Year Key Selling Points: Energy Saving
After-sales Service Provided: Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support Keyword: Extruder Plastic Machine
Name: YongJie Color: Any Color As Your Require
Diameter(mm): 63 L/D: 32-62/32-64
RPM ( R/min): 400/500/600/800 T/N: 4.4/4.8
Capacity (Kg/h): 160-500 Torque(N.m): 620/675/620
Output (kg/h): 200 - 300 Kg/h Automatic Grade: High Automation
Power: 55/75/90/110kw Applicable Industries: Manufacturing Plant
Condition: New Weight: 1t-10t

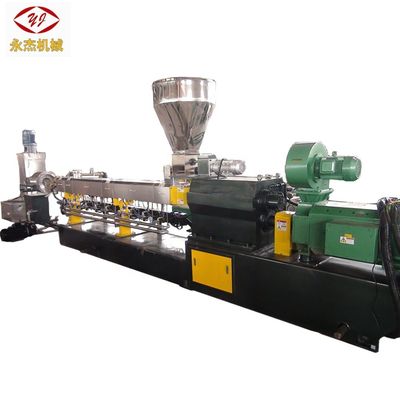

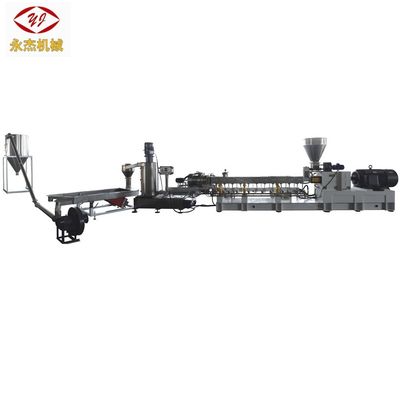

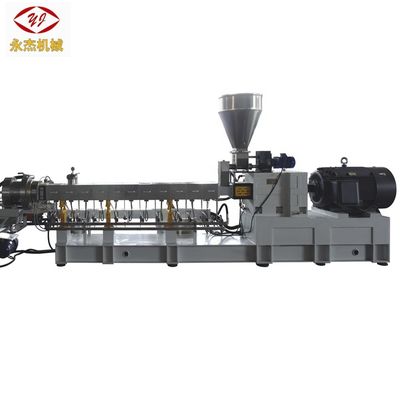

OEM twin screw plastic extruder machine for masterbatch

              The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.

                                      Model          Diameter(mm)                                        L/D         RPM ( r/min)                            Power   (Kw)  Torque(N.m)                                      T/N                                 Capacity (Kg/h)
SJSL-202032-446005.5304.86.5-15
SJSL-363632-48600151154.230-75
SJSL-51A5132-52500454055.1100-200
SJSL-51B5132-52600554155.2150-25
SJSL-63A6332-62400     55       620      4.4     160-250
500756754.8200-300

SJSL-63B

6332-64600    90      675      4.8      225-375
8001106204.4300-500
SJSL-75A7232-64400    90       1015   4.7      225-350
50011010054.6300-550
SJSL-75B7232-64600    132      990     4.6      400-650
8001609004.2480-800
SJSL-92A9232-64400    2502815   5.9      650-1050
50022504.7750-1250
SJSL-92B9232-64600    2802365   5.0      900-1500
80022504.71200-2000
SJSL-135A13532-4840031561904.61500-2500
SJSL-135B13532-4850040067505.1200-3500
OEM Twin Screw Plastic Extruder Machine for Masterbatch 0

OEM Twin Screw Plastic Extruder Machine for Masterbatch 2OEM Twin Screw Plastic Extruder Machine for Masterbatch 4

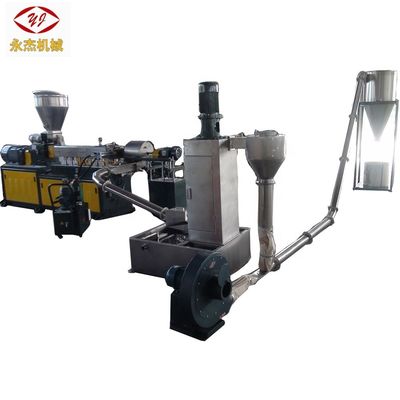

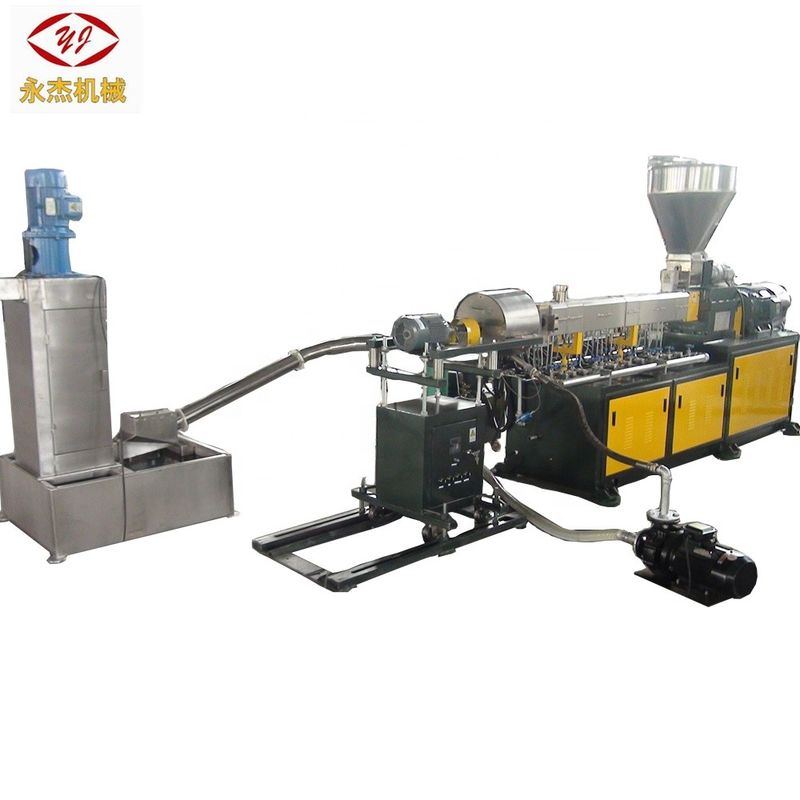

Application for water-ring hot face production line

1. Filling master batch: PE, EVA, etc. + caco3, talc, filling modified and carbon black etc.

2. LDPE, HDPE, LLDPE, MDPE, drivepipe, insulation material, crosslinking material,

   cable coating material , thermal contraction pipe material.

3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic

   elastomer, EVA and hot melt additives.

4. Color mater batch: PE, ABS, PS, EVA master batch, etc.

5. ABS, EVA flaming retarding master batch, etc.

6. PE, PP, PS filling and biodegradable masterbatch, etc.



Auxiliary

Water-ring cover



pelletizer

OEM Twin Screw Plastic Extruder Machine for Masterbatch 6

Centrifugal dehydrator

OEM Twin Screw Plastic Extruder Machine for Masterbatch 8

Vibrating sieve

OEM Twin Screw Plastic Extruder Machine for Masterbatch 10

Bin

OEM Twin Screw Plastic Extruder Machine for Masterbatch 12

Other product





Pelletizing in the water line

OEM Twin Screw Plastic Extruder Machine for Masterbatch 14







Air-cooling strand pelletizing line



OEM Twin Screw Plastic Extruder Machine for Masterbatch 16





Air-cooling hot-face pelletizing line



OEM Twin Screw Plastic Extruder Machine for Masterbatch 18



Water-cooling stand pelletizing line



OEM Twin Screw Plastic Extruder Machine for Masterbatch 20

OEM Twin Screw Plastic Extruder Machine for Masterbatch 22



OEM Twin Screw Plastic Extruder Machine for Masterbatch 24

FAQ



1. Are you a factory or trading company?



     Both.



2. Where is your factory located? How can I visit there?



   Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.



   (1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;



   (2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.

3. What's your advantages?

   (1) Excellent quality control



   (2) First-class service



   (3) Professional Tech. and R&D team



   (4) Quick manufacturing time



   (5) Quite competitive price



4. How long is the delivery time?



    Under normal conditions, products are delivered within 35 days.



5. How can I know the stauts of my order?



    We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.



6. How long is the warranty?



    We can offer one-year warranty for the whole machine.
