Own Factory Pp/pe+caco3 Filler Masterbatch Machine Plastic Pellet Machine

Own Factory Pp/pe+caco3 Filler Masterbatch Machine Plastic Pellet Machine

  • Own Factory Pp/pe+caco3 Filler Masterbatch Machine Plastic Pellet Machine
  • Own Factory Pp/pe+caco3 Filler Masterbatch Machine Plastic Pellet Machine
  • Own Factory Pp/pe+caco3 Filler Masterbatch Machine Plastic Pellet Machine
  • Own Factory Pp/pe+caco3 Filler Masterbatch Machine Plastic Pellet Machine
  • Own Factory Pp/pe+caco3 Filler Masterbatch Machine Plastic Pellet Machine
  • Own Factory Pp/pe+caco3 Filler Masterbatch Machine Plastic Pellet Machine
  • Own Factory Pp/pe+caco3 Filler Masterbatch Machine Plastic Pellet Machine
Own Factory Pp/pe+caco3 Filler Masterbatch Machine Plastic Pellet Machine
Product Details:
Contact Now
Detailed Product Description
加工塑料类型: PE, PP, HDPE, PE/PP, LLDPE, LDPE 应用: 颗粒
螺杆设计: 双螺杆 双螺杆类型: 同向平行双螺杆
螺杆材质: W6Mo5Cr4V2 螺杆直径（mm）: 62.4
螺杆长径比: 48:1 螺杆转速 (rpm): 600 Rpm
原产地: Jiangsu, China 品牌: YongJie
电压: 380V 50HZ 尺寸(长×宽×高): 型号
功率 （kW）: 90 保修期: 1年
核心卖点: 多功能 视频出厂验货: 可提供
核心组件: 电机, 齿轮, PLC, 齿轮箱 机械测试报告: 可提供
姓名: 永洁 颜色: 任何颜色作为您的要求
扭矩 (N.m): 1015/1005/990/900 T/N: 4.7/4.6/4.2
最终产品: 填料母料颗粒 逆变器: ABB品牌
电机品牌: WN/WEG/SIEMENS BEIDE 枪管材料: 双金属
其他名称: 填料母料挤出机 冷却方式: 水冷
提供售后服务: 视频技术支持, 免费备件, 现场安装、调试和培训, 现场维护和维修服务, 在线支持 保修后服务: 视频技术支持, 在线支持, 备品备件, 现场维护和维修服务
本地服务位置: 土耳其, 越南, 印度尼西亚, 印度, 墨西哥 营销类型: 热门产品2019
认证: CE ISO9001 状态: New
展示厅地点（在海外哪些国家有样品间）: None 适用行业: 生产车间
核心组件质保期: 1年 重量: 1t-10t

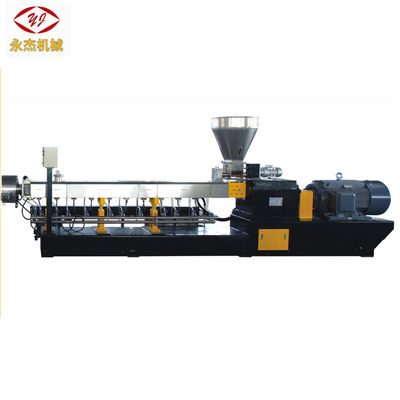

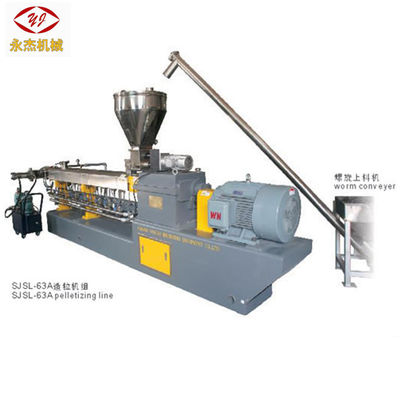

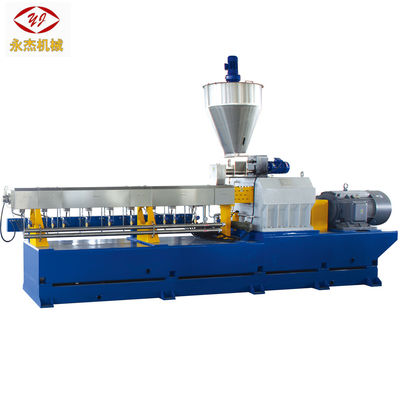

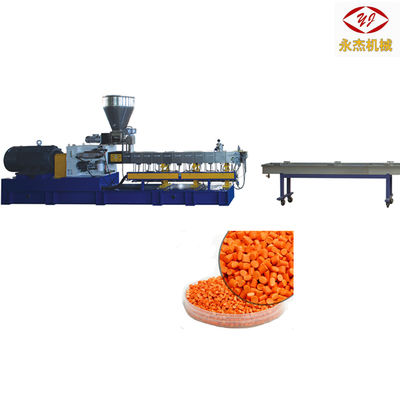

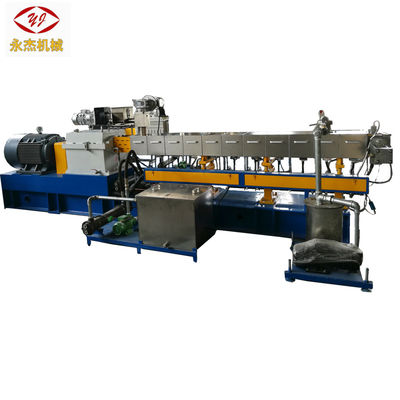

Own factory pp/pe+caco3 filler masterbatch machine plastic pellet machine

              Co-rotating parallel twin screw extruder barrel, screw adopts cordwood combination method, according to Material Processing System and technical requirement ,its L/D,screw arrangement ,number of venting and electric control can all realize multi-function and Multi purpose for materials.

              It suit most kind of color masterbatch, degradable materials and flame retardant materials extrusion and granulating.



Main technical data of various model of filler masterbatch machine plastic pellet machine

Model type

Series

Barrel Diameter (mm)

Screw Diameter (mm)

Screw L/D

screw speed n(r/min)

Main motor power(Kw)

Screw torque T(N.m)

Torque rating (T/A3)

Typical production capacity (kg/h)

SJSL20

A/B

22

21.7

32-44

500/600

4/5.5kw

30/30





SJSL-36

A/B/C/D

36

35.6

32-48

400/600

11/15/18.5/22

125-225

4.6-8.3

30-120

SJSL-51

A/B/C/D

51

50.5

32-52

500/600

45/55/75/90

405-680

5.1-8.5

120-400

SJSL-65

A/B/C/D

63

62.4

32-64

500/600

75/90/110/132

680-1200

4.8-8.5

180-750

SJSL-75

A/B/C/D

72

71

32-64

500/600

110/132/160/250

995-1890

4.6-8.7

300-1200

SJSL-95

A/B/C/D

94

93

32-64

500/600

250/315/450/550

2260-4510

4.7-8.7

700-2500

SJSL-135

A/B/C/D

135

133

32-48

400/500

550/750/900/1200

6200-10800

4.4-7.7

1550-6500

Own Factory Pp/pe+caco3 Filler Masterbatch Machine Plastic Pellet Machine 0

Own Factory Pp/pe+caco3 Filler Masterbatch Machine Plastic Pellet Machine 2Own Factory Pp/pe+caco3 Filler Masterbatch Machine Plastic Pellet Machine 4

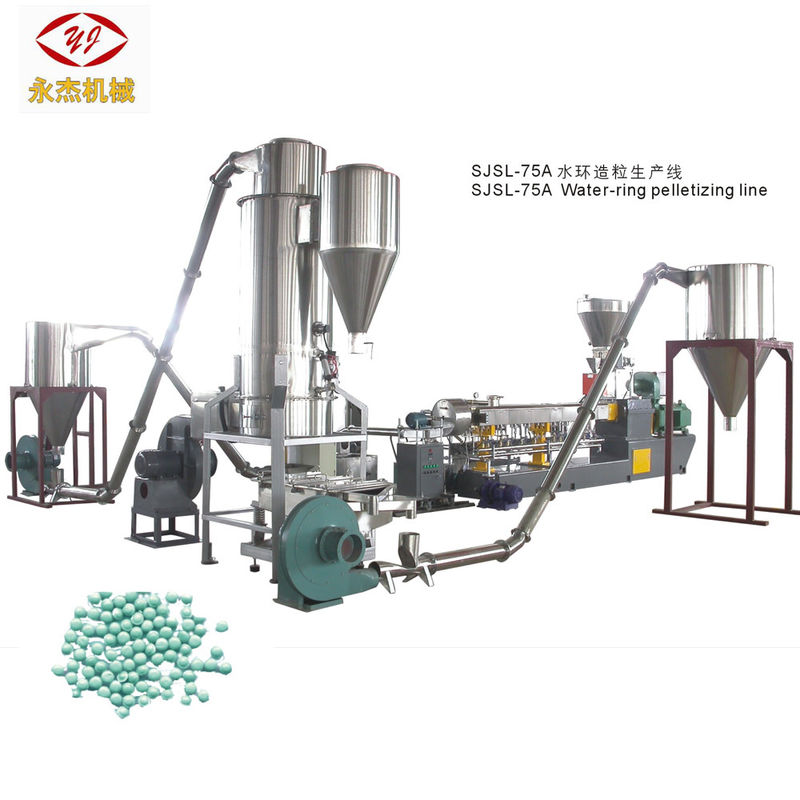

Application for air-cooling hot face filler masterbatch machine plastic pellet machine

1. Masterbatch enforcing modification: PE, EVA + calcium carbonate, talc, titanium

  dioxide, PVC, PP, carbon black.

2. Degradable master batch: PE, PS, etc. + starch, additives etc.

3. Anti-flame master batch: PE, EVA, etc. + Mg(OH)2, Al2(OH)3, etc.



Auxiliary machine for filler masterbatch machine plastic pellet machine

Air-cooling pelletizer cover

Own Factory Pp/pe+caco3 Filler Masterbatch Machine Plastic Pellet Machine 6

cyclone

Own Factory Pp/pe+caco3 Filler Masterbatch Machine Plastic Pellet Machine 8

Blower

Own Factory Pp/pe+caco3 Filler Masterbatch Machine Plastic Pellet Machine 10

Vibrating sieve

Own Factory Pp/pe+caco3 Filler Masterbatch Machine Plastic Pellet Machine 12

Product bin

Own Factory Pp/pe+caco3 Filler Masterbatch Machine Plastic Pellet Machine 14

Own Factory Pp/pe+caco3 Filler Masterbatch Machine Plastic Pellet Machine 16Own Factory Pp/pe+caco3 Filler Masterbatch Machine Plastic Pellet Machine 18Own Factory Pp/pe+caco3 Filler Masterbatch Machine Plastic Pellet Machine 20Own Factory Pp/pe+caco3 Filler Masterbatch Machine Plastic Pellet Machine 22Own Factory Pp/pe+caco3 Filler Masterbatch Machine Plastic Pellet Machine 24Own Factory Pp/pe+caco3 Filler Masterbatch Machine Plastic Pellet Machine 26

FAQ



1. Are you a factory or trading company?



     Both.



2. Where is your factory located? How can I visit there?



   Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.



   (1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;



   (2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.

3. What's your advantages?

   (1) Excellent quality control



   (2) First-class service



   (3) Professional Tech. and R&D team



   (4) Quick manufacturing time



   (5) Quite competitive price



4. How long is the delivery time?



    Under normal conditions, products are delivered within 35 days.



5. How can I know the stauts of my order?



    We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.



6. how long is the warranty?



    We can offer one-year warranty for the whole machine.
