2.5tons per hour Twin screw extruder machine masterbatch machine granulator machine for plastic
The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.
Product Description
1. PE, Eva etc + Caco3, talk, Tio92, filling modification and carbon black etc.
2.LDPE, HDPE, LLDPE,MDPE, drivepipe, insulation material, crosslinking material, cable coating material, thermal contraction pipe material etc.
3.PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic elastomer, EVA and hot melt adhesive etc.
4.PE, ABS, PS, EVA masterbatch etc.
5.ABS, EVA flaming retarding masterbatch etc.
6.PE, PP, PS filling and biodegradable masterbatch, etc.
Main technical data of various model of twin screw extruder granulator machine for plastic
Model type
Series
Barrel Diameter (mm)
Screw Diameter (mm)
Screw L/D
screw speed n(r/min)
Main motor power(Kw)
Screw torque T(N.m)
Torque rating (T/A3)
Typical production capacity (kg/h)
SJSL20
A/B
22
21.7
32-44
500/600
4/5.5kw
30/30
SJSL-36
A/B/C/D
36
35.6
32-48
400/600
11/15/18.5/22
125-225
4.6-8.3
30-120
SJSL-51
A/B/C/D
51
50.5
32-52
500/600
45/55/75/90
405-680
5.1-8.5
120-400
SJSL-65
A/B/C/D
63
62.4
32-64
500/600
75/90/110/132
680-1200
4.8-8.5
180-750
SJSL-75
A/B/C/D
72
71
32-64
500/600
110/132/160/250
995-1890
4.6-8.7
300-1200
SJSL-95
A/B/C/D
94
93
32-64
500/600
250/315/450/550
2260-4510
4.7-8.7
700-2500
SJSL-135
A/B/C/D
135
133
32-48
400/500
550/750/900/1200
6200-10800
4.4-7.7
1550-6500
Image & Data

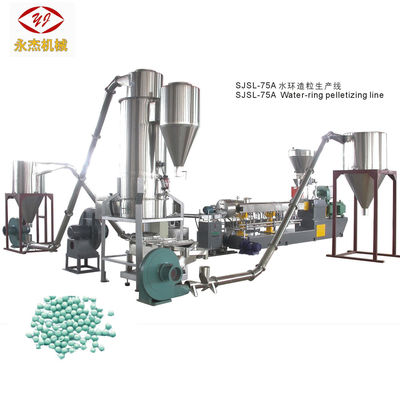

Twin screw extruder granulator machine for plasticsjsl-75D
Application for twin screw extruder machine plastic pellet granule making machine
.
Other product
Twin screw extrudergranulator machine for plasticin the water line

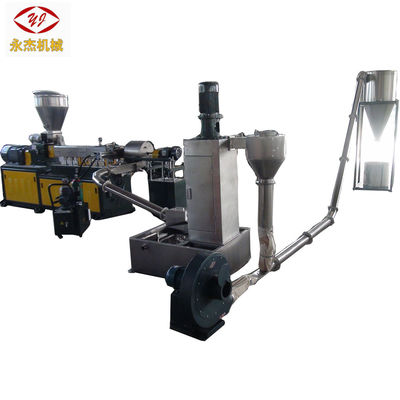

Air-cooling hot-face twin screw extruder granulator machine for plastic
Air-cooling strand twin screw extruder granulator machine for plastic
FAQ
1. Are you a factory or trading company?
Both.
2. Where is your factory located? How can I visit there?
Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.
(1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;
(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.
3. What's your advantages?
(1) Excellent quality control
(2) First-class service
(3) Professional Tech. and R&D team
(4) Quick manufacturing time
(5) Quite competitive price
4. How long is the delivery time?
Under normal conditions, products are delivered within 35 days.
5. How can I know the stauts of my order?
We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.
6. how long is the warranty?
We can offer one-year warranty for the whole machine.
