Name: PE PP Filler Masterbatch Machine Plastic Twin Screw Extruder for Granulation
Brand: Nanjing Yongjie Qixin Machinery Equipment Co., Ltd.
Availability: InStock

Home Products Water-ring hot-face pelletizing line

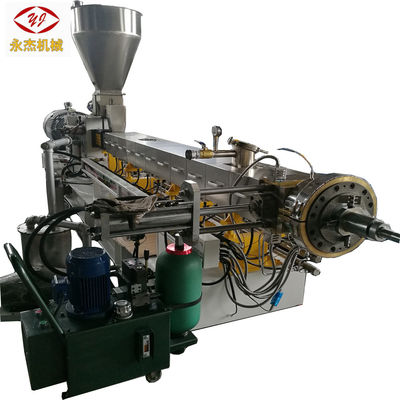

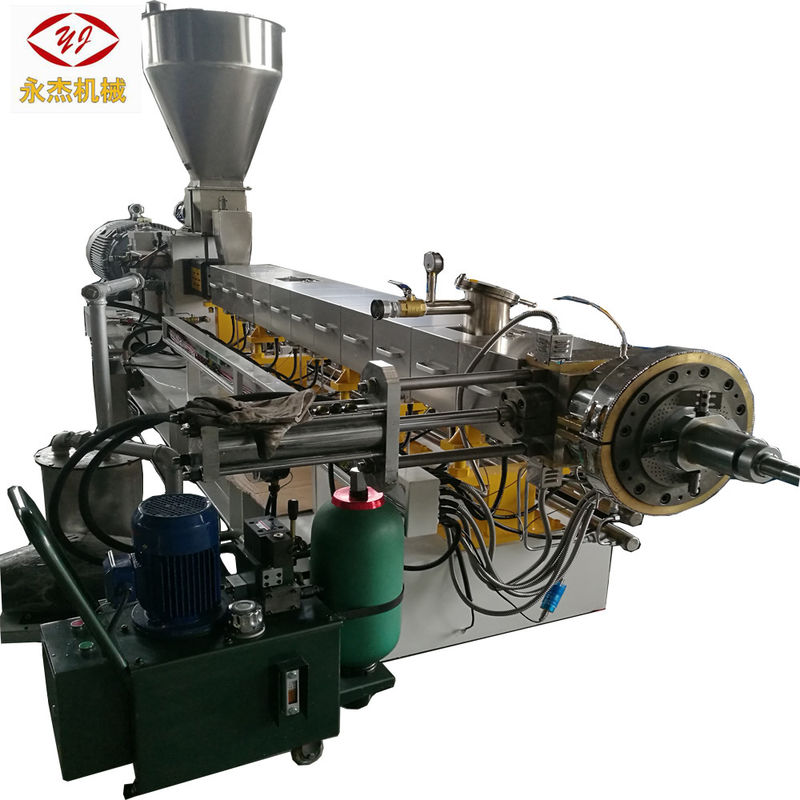

PE PP Filler Masterbatch Machine Plastic Twin Screw Extruder for Granulation

Product Details:

Contact Now

Detailed Product Description

加工塑料类型:	PE, PP, HDPE, PE/PP, LLDPE, LDPE	应用:	颗粒
螺杆设计:	双螺杆	双螺杆类型:	同向平行双螺杆
螺杆材质:	W6Mo5Cr4V2	螺杆直径（mm）:	90
螺杆长径比:	56:1	螺杆转速 (rpm):	500 Rpm
原产地:	Jiangsu, China	品牌:	YongJie
电压:	380V 50HZ	尺寸(长×宽×高):	型号
功率（kW）:	280	保修期:	1年
核心卖点:	多功能	视频出厂验货:	可提供
核心组件:	电机, PLC, 齿轮箱	机械测试报告:	可提供
提供售后服务:	工程师可在海外为机械提供服务, 视频技术支持, 现场安装、调试和培训, 现场维护和维修服务, 在线支持	姓名:	永洁
保修:	1年	颜色:	任何颜色作为您的要求
直径 (mm):	21.7-135mm	L/D:	36-52
RPM( R/min):	500/600	T/N:	4.6/5.1
容量 (Kg/h):	1500-2500kg/h	保修后服务:	视频技术支持, 在线支持, 备品备件, 现场维护和维修服务
本地服务位置:	无	营销类型:	2020年新产品
认证:	CE ISO9001	状态:	New
展示厅地点（在海外哪些国家有样品间）:	None	适用行业:	生产车间
核心组件质保期:	1年	重量:	1-4t

PE PP filler masterbatch machine plastic twin screw extruder for granulation

The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.

Image & Data

Masterbatch machine sjsl75D making filler masterbatch 2000-25000kg/h

1. Main Parts of Extruder Twin Screw PP PE Filler Master Batch Machine

Name: Twin-screw extruder
Brand: YJMotor: AC motor, power:75KW, brand: SIEMENS Bade,
Speed governing: Japanese ABB inverter control speed,
Revolutions:800rpm for filler masterbatch/300rpm for pet flake
Reduction ratio: i =1.9/5:1

1.1. Main Parts of Extruder Twin Screw PP PE Filler Master Batch Machine

Name: Gearbox
Brand: YJ
Parallel tri-axial structure is combination of reduction and matrix. The gear is made of high quality alloy (20CrNi2Mo).Drive bearing: The brand of axletree: Japanese NSK.
Lubrication: Gear bearings in the gear box will be of oil immersed. There is hydraulic lubrication in the gear engagement and gear bearings.
Cooling: Lubricated cooling adopts shell and tube cooler and circulated water cooling method.

1.2.Main Parts of Extruder Twin Screw PP PE Filler Master Batch Machine

Name: Gearbox

Name: Screw
Brand: YJ
Direction of rotation: co-rotating;
The screw elements material is W6Mo5Cr4V2(6542#)
The core axis is made of high quality alloy steel 40CrNiMo

Company Information

Nanjing Yongjie Qixin Machinery Equipment Co., Ltd, founded in 2001, started to export since 2005,

covers an area of 20,000 square meters on our own land, with yearly output of plastic extruder morethan 200 sets.

Our company is committed to the research and production of single screw extrusion production line,co-rotating

parallel twin screw extrusion and granule machine, tandem compounding system for extruding

and granulating, twin screw extruding line for plate, profile, and automatic production line for waste

film(bottle) smashing, cleaning, recycling and re-granulating etc.

QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
