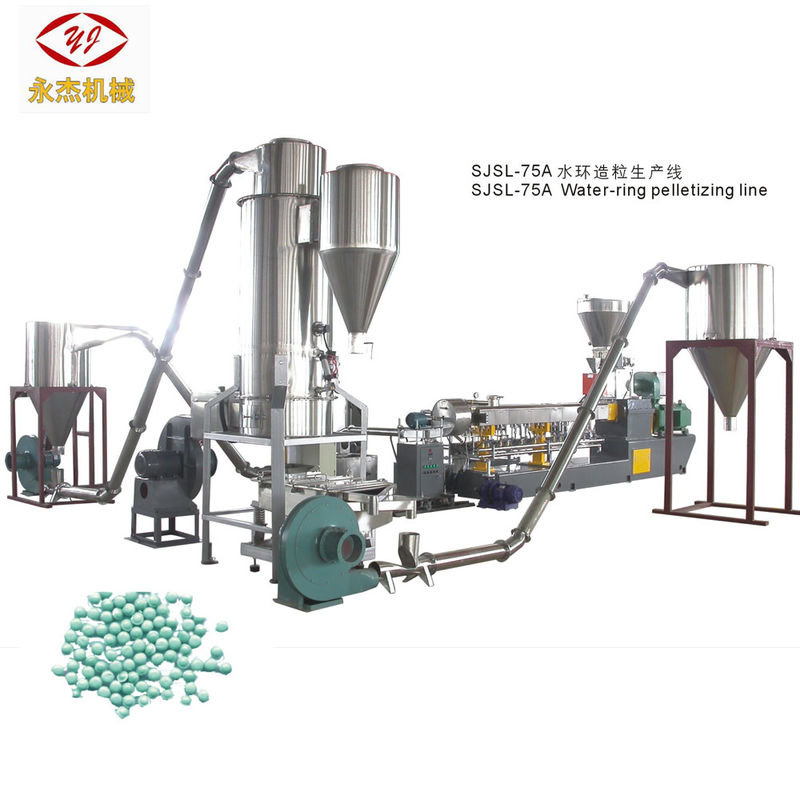

Home Products Water-ring hot-face pelletizing line

2.5 Tons/H Extruder Twin Screw Masterbatch PE PP Filler Machine LDPE HDPE Master Batch Machine with Motor Gearbox PLC Components

Product Details:

Contact Now

Detailed Product Description

加工塑料类型:	PE, PP, EVA, HDPE, PE/PP, LDPE	应用:	颗粒
螺杆设计:	双螺杆	双螺杆类型:	同向锥形双螺杆
螺杆材质:	W6Mo5Cr4V2	螺杆直径（mm）:	75
螺杆长径比:	52	螺杆转速 (rpm):	800
原产地:	Jiangsu, China	品牌:	YongJie
电压:	380V 50HZ Or Customized	尺寸(长×宽×高):	Model
功率（kW）:	315	保修期:	1年
核心卖点:	全自动	视频出厂验货:	可提供
核心组件:	电机, PLC, 齿轮箱	机械测试报告:	可提供
重量 (KG):	6000	挤出机类型:	双螺杆
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Keyword:	Twin Screw Masterbatch Extruder
Twin Screw Extruder Warranty:	1 Year	RPM ( R/min):	800rpm Masterbatch
Torque(N.m):	3800	T/N:	8.7
Capacity (Kg/h):	2500kg/h	Automatic Grade:	High Automation
Power:	315kw Or 280kw	Color Of Machine:	Customized

2.5tons/h Extruder Twin Screw Masterbatch Extruder PE PP Filler Master Batch Machine

Product Description

Nanjing Yongjie started to make pet plastic recycling machine since 2005, beside for pet pellets making machine, our twin screw extruders are widely used for enforcing modification, degradab le master batch, anti-flame master batch etc.

Model type	Series	Barrel Diameter (mm)	Screw Diameter (mm)	Screw L/D	screw speed n(r/min)	Main motor power(Kw)	Screw torque T(N.m)	Torque rating (T/A³)	Typical production capacity (kg/h)
SJSL-36	A/B/C/D	36	35.6	32-48	400/600	11/15/18.5/22	125-225	4.6-8.3	30-120
SJSL-51	A/B/C/D	51	50.5	32-52	500/600	45/55/75/90	405-680	5.1-8.5	120-400
SJSL-65	A/B/C/D	63	62.4	32-64	500/600	75/90/110/132	680-1200	4.8-8.5	180-750
SJSL-75	A/B/C/D	72	71	32-64	500/600	110/132/160/250	995-1890	4.6-8.7	300-1200
SJSL-95	A/B/C/D	94	93	32-64	500/600	250/315/450/550	2260-4510	4.7-8.7	700-2500
SJSL-135	A/B/C/D	135	133	32-48	400/500	550/750/900/1200	6200-10800	4.4-7.7	1550-6500

Image & Data

Masterbatch machine sjsl75D making filler masterbatch 2000-25000kg/h

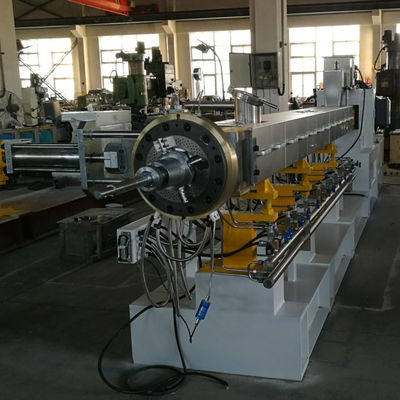

1. Main Parts of twin screw extruder filler masterbatch machine

Name: Twin-screw extruder
Brand: YJMotor: AC motor, power:75KW, brand: SIEMENS Bade,
Speed governing: Japanese ABB inverter control speed,
Revolutions:800rpm for filler masterbatch/300rpm for pet flake
Reduction ratio: i =1.9/5:1

1.1. Main Parts of twin screw extruder filler masterbatch machine

Name: Gearbox
Brand: YJ
Parallel tri-axial structure is combination of reduction and matrix. The gear is made of high quality alloy (20CrNi2Mo).Drive bearing: The brand of axletree: Japanese NSK.
Lubrication: Gear bearings in the gear box will be of oil immersed. There is hydraulic lubrication in the gear engagement and gear bearings.
Cooling: Lubricated cooling adopts shell and tube cooler and circulated water cooling method.

1.2.Main Parts of twin screw extruder filler masterbatch machine

Name: Gearbox

Name: Screw
Brand: YJ
Direction of rotation: co-rotating;
The screw elements material is W6Mo5Cr4V2(6542#)
The core axis is made of high quality alloy steel 40CrNiMo

Company Information

Nanjing Yongjie Qixin Machinery Equipment Co., Ltd, founded in 2001, started to export since 2005,

covers an area of 20,000 square meters on our own land, with yearly output of plastic extruder morethan 200 sets.

Our company is committed to the research and production of single screw extrusion production line,co-rotating

parallel twin screw extrusion and granule machine, tandem compounding system for extruding

and granulating, twin screw extruding line for plate, profile, and automatic production line for waste

film(bottle) smashing, cleaning, recycling and re-granulating etc.

QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
