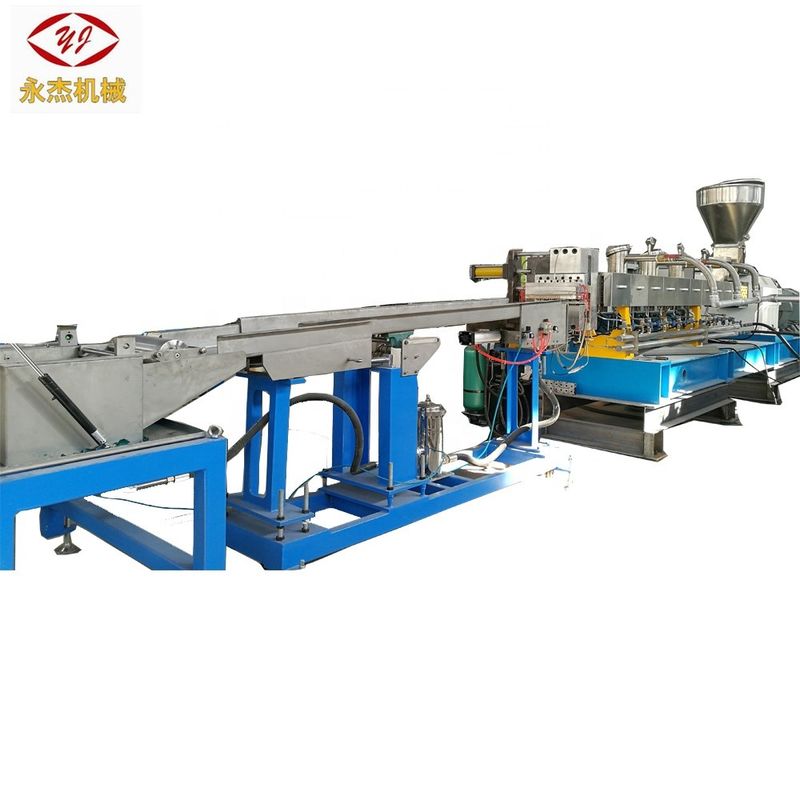

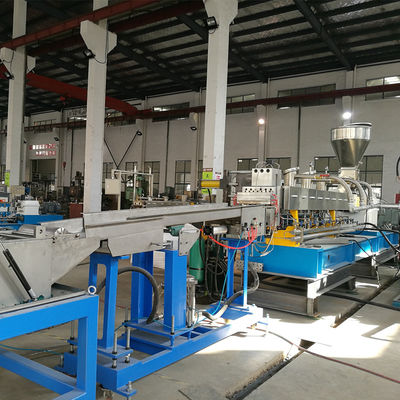

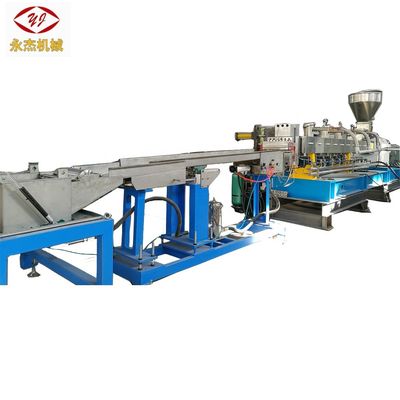

Name: PE/PP/PC/PS/PMMA/PBT/TPR/TPU/PA/ PET Pelletizing Machine
Brand: Nanjing Yongjie Qixin Machinery Equipment Co., Ltd.
Availability: InStock

Home Products PET pelletizing machine & pet sheet machine

PE/PP/PC/PS/PMMA/PBT/TPR/TPU/PA/ PET Pelletizing Machine

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	YONGJIE
Certification:	CE ISO9001

Contact Now

Detailed Product Description

Plastic Processed:	PET	Output (kg/h):	500 - 800 Kg/h
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	PLC, Gearbox, Motor	Screw Design:	Double
Voltage:	380V 50HZ	Dimension(lwh):	Model
Power (kw):	250	Warranty:	1 Year
Twin Screw Type:	Co-rotating Parallel Twin-screw	Screw L/D Ratio:	40:1
Screw Speed (rpm):	50 - 400 Rpm	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Color Of Plastic Pelletizing Machine:	Any Color As Your Required	Application Of Pet Pelletizing Machine:	Pet Flake Granulation
Plastic Pelletizing Machine Cutting Way:	Special Water Chute	Lead Time:	60 Days
Feeding Method:	Main Feeder Or Side Feeder	Electric Control:	PLC Or PID
Motor Brand:	Siemens Beide/WN/WEG	Inverter Brand:	ABB
Temperature Control Meter:	OMRON/RKC	Marketing Type:	New Product 2020
After Warranty Service:	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service	Local Service Location:	United States, Viet Nam, India, Mexico
Condition:	New	Warranty Of Core Components:	1 Year
Type:	Granulating Production Line	Showroom Location:	None
Applicable Industries:	Manufacturing Plant	Screw Diameter (mm):	93
Weight:	8Ton

Product Description

PE/PP/PC/PS/PMMA/PBT/TPR/TPU/PA/ PET Pelletizing Machine

1) Plastic filling and modification, color masterbatch, reinforcing material with fiber, cable granule, spring material, recycle plastic granulating etc.
2) Plastic grafting, reaction extruding, devolatilization.
3) Plastic pipe, profile, plastic strips....extrustion line.
4)Degradable material, WP powder, iron powder, magnetism powder etc.
SJSL20 co-rotating parallel twin screw extruder is mainly for labrotatory testing or testing period of pellets etc.

Specification for PE/PP/PC/PS/PMMA/PBT/TPR/TPU/PA/ PET Pelletizing Machine
PE/PP/PC/PS/PMMA/PET/PBT/TPR/TPU/nylon plastic pelletizing machine parameters	Barrel diameter	D(mm)	93
	Main motor power	P(kw)	250
	Speed of screw rotating	n(r/min)	500
	Screw torque	T(N.m)	2260
	Output	Q(kg/h)	500-600
Optional cutting system for PE/PP/PC/PS/PMMA/PBT/TPR/TPU/PA/ PET Pelletizing Machine	water-cooling strand cutting system		available
	water-cooling strand cutting system		available

Main Advantages of PE/PP/PC/PS/PMMA/PBT/TPR/TPU/PA/ PET Pelletizing Machine

1) Main electronical parts are made of world famous brands: SIEMENS BEIDE motor, ABB speed control inverter, NSK driven bear, DANFOSS electro-magnetic valve, CHINT air switch, SCHNEIDER apparatus and buttons, RKC temperature control etc
2) Cutting system: special water chute for pet pelletizing machine, without break of the material strand,
Bigger model cutting system:water-cooling strand, air-cooling strand, air-cooling hot face, water-ring hot face,
underwater etc.
3) Started to make co-rotating parallel twin screw extruder since 2001, and exported worldwide from 2005.
4) Before sales technical support: choosing most suitable and economical machine model and cutting system for customers by our sophisticated technicians.
5) Recipe recommendation for clients needed.
6) One year warranty, and free technical support after one year.
7) Engineers available overseas for installation and training, or free training for customers engineers in our factory.
8) Experienced R&D, Production and Sales Teams.

Certifications

Detailed Images

1.Machine Parts of PE/PP/PC/PS/PMMA/PBT/TPR/TPU/PA/ PET Pelletizing Machine

Name: Feeding system
Brand: YJ
The power of feeder: 0.25KW;Speed regulation: Yolico inverter.
The type of screw: co-rotating twin screw;
Speed ratio: 11:1

2.Machine Parts of PE/PP/PC/PS/PMMA/PBT/TPR/TPU/PA/ PET Pelletizing Machine

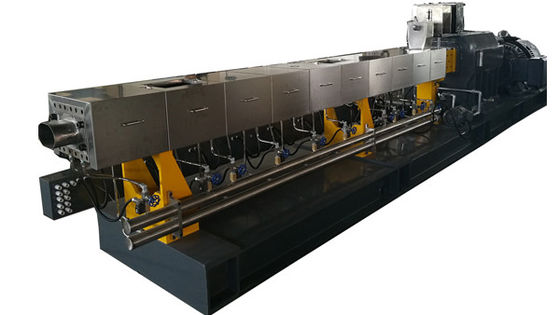

Name: Twin-screw extruder
Brand: YJ
Motor: AC motor, power:250KW, brand: SIEMENS BEIDE or WN,Speed governing: Japanese ABB inverter control speed,
Revolutions:0-500rpm
Reduction ratio: i = 3:1

2.1.Main Parts of PE/PP/PC/PS/PMMA/PBT/TPR/TPU/PA/ PET Pelletizing Machine

Name: Gearbox
Brand: YJ
Parallel tri-axial structure is combination of reduction and matrix. The gear is made of high quality alloy (20CrNi2Mo).Drive bearing: The brand of axletree:Japanese NSK.
Lubrication: Gear bearings in the gear box will be of oil immersed. There is hydraulic lubrication in the gear engagement and gear bearings.
Cooling: Lubricated cooling adopts shell and tube cooler and circulated water cooling method.

2.2.Main Parts of PE/PP/PC/PS/PMMA/PBT/TPR/TPU/PA/ PET Pelletizing Machine

Name: Screw
Brand: YJ
Original: China
Direction of rotation: co-rotating;
The screw elements material is W6Mo5Cr4V2(6542#)
The core axis is made of high quality alloy steel 40CrNiMo

2.3.Main Parts of PE/PP/PC/PS/PMMA/PBT/TPR/TPU/PA/ PET Pelletizing Machine

Name: Barrel
Brand: YJ
Diameter:￠93mm
Standard:L/D: 40:1, and other available
Barrel: 10 sections, 10*290mm=2900mm

2.4.Main Parts of PE/PP/PC/PS/PMMA/PBT/TPR/TPU/PA/ PET Pelletizing Machine

Name:Soft water cooling system
Brand:YJ
Adopt soft water cooling system in the barrel. The circulation pipes are made of stainless steel and the water inflow regulating valves are stainless valves.
The power of the water pump is 1.5KW.

2.5.Main Parts of PE/PP/PC/PS/PMMA/PBT/TPR/TPU/PA/ PET Pelletizing Machine

1).First stage ROTH pump 4kw,

2). First stage ROTH pump 3kw,

3). Second stage water ring pump 15kw

4). 1 collecting tank to empty vacuum condensate into containers. 1 manual valve, 1 bypass, 1 air pressure indicator

3.1. Auxiliary machines of PE/PP/PC/PS/PMMA/PBT/TPR/TPU/PA/ PET Pelletizing Machine

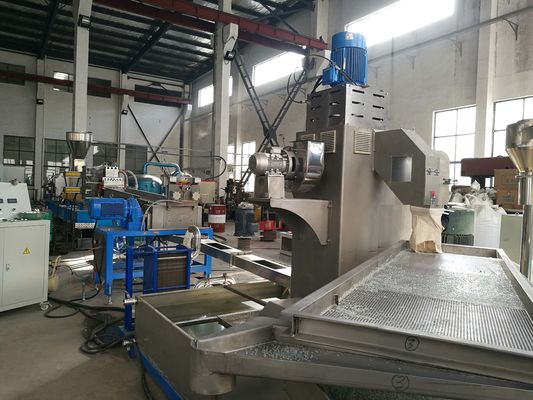

Name: water chute

1). SS water chute with special design for pet, no material strand break during production

2). Good heat control for material crystalization

3). SS pelletizer with water mesh and separator

3.2. Auxiliary machines of PE/PP/PC/PS/PMMA/PET/PBT/TPR/TPU/nylon plastic pelletizing machine

Name:dehydrator 1)Power:7.5kw motor, 800kg/h, about 1450 rpm.
2)All the material touched with polymer are made out of SS 304

Our Service

Pre-Sales Service

for PE/PP/PC/PS/PMMA/PBT/TPR/TPU/PA/ PET Pelletizing Machine

* Inquiry and consulting support
* Model selection according to customers' raw material
* View our Factory

After-Sales Service for PE/PP/PC/PS/PMMA/PBT/TPR/TPU/PA/ PET Pelletizing Machine

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging 1 of PE/PP/PC/PS/PMMA/PBT/TPR/TPU/PA/ PET Pelletizing Machine
Size	1700 (L) 600 (W) 1100 (H)
Weight	1T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging 2 of PE/PP/PC/PS/PMMA/PBT/TPR/TPU/PA/ PET Pelletizing Machine
Size	3000(L) * 600(W) * 900 (H)
Weight	0.5 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
