Product Details:
Place of Origin: Jiangsu, China
Brand Name: YongJie
Contact Now
Detailed Product Description
Plastic Processed: PET Application: Granules
Screw Design: Double-screw Twin Screw Type: Co-rotating Parallel Twin-screw
Screw Material: W6Mo5Cr4V2 Screw Diameter (mm): 95
Screw L/D Ratio: 40:1 Screw Speed (rpm): 400 Rpm
Voltage: 380V 50HZ Dimension(l*w*h): Model
Power (kw): 250 Warranty: 1 Year
Key Selling Points: Automatic Video Outgoing-inspection: Provided
Core Components: Motor, PLC, Gearbox Machinery Test Report: Provided
Keyword: Granules Making Machine Name: YongJie
Color: Any Color As Your Require T/N: 5.1/5.2
Capacity (Kg/h): 500-600 Torque(N.m): 2260
Automatic Grade: High Automation IV Loss Of Finished Pet Pellets: About 5%
Water Chute Design: No Waste Of Material Condition: New
Showroom Location: None Applicable Industries: Manufacturing Plant
Warranty Of Core Components: 1 Year Weight: 10 KG

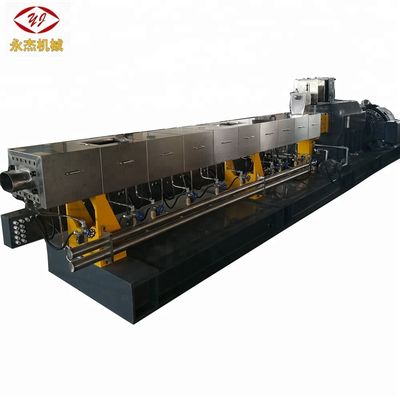

Granulator for PET bottle recycling crystalization free plastic granules making machine price twin-screw plastic extruder pet

              The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.

                                      Model           Diameter(mm)                                         L/D          RPM ( r/min)                             Power   (Kw)   Torque(N.m)                                       T/N                                  Capacity (Kg/h)
SJSL-20 20 32-44 600 5.5 30 4.8 6.5-15
SJSL-36 36 32-48 600 15 115 4.2 30-75
SJSL-51A 51 32-52 500 45 405 5.1 100-200
SJSL-51B 51 32-52 600 55 415 5.2 150-25
SJSL-63A 63 32-62 400      55        620       4.4      160-250
500 75 675 4.8 200-300

SJSL-63B

63 32-64 600     90       675       4.8       225-375
800 110 620 4.4 300-500
SJSL-75A 72 32-64 400     90        1015    4.7       225-350
500 110 1005 4.6 300-550
SJSL-75B 72 32-64 600     132       990      4.6       400-650
800 160 900 4.2 480-800
SJSL-92A 92 32-64 400     250 2815    5.9       650-1050
500 2250 4.7 750-1250
SJSL-92B 92 32-64 600     280 2365    5.0       900-1500
800 2250 4.7 1200-2000
SJSL-135A 135 32-48 400 315 6190 4.6 1500-2500
SJSL-135B 135 32-48 500 400 6750 5.1 200-3500



Granulator for PET Bottle Recycling Crystalization Free Plastic Granules Making Machine Price Twin-screw Plastic Extruder Pet 0

Granulator for PET Bottle Recycling Crystalization Free Plastic Granules Making Machine Price Twin-screw Plastic Extruder Pet 2

Granulator for PET Bottle Recycling Crystalization Free Plastic Granules Making Machine Price Twin-screw Plastic Extruder Pet 4


Application for water-ring hot face production line

1. Filling master batch: PE, EVA, etc. + caco3, talc, filling modified and carbon black etc.

2. LDPE, HDPE, LLDPE, MDPE, drivepipe, insulation material, crosslinking material,

   cable coating material , thermal contraction pipe material.

3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic

   elastomer, EVA and hot melt additives.

4. Color mater batch: PE, ABS, PS, EVA master batch, etc.

5. ABS, EVA flaming retarding master batch, etc.

6. PE, PP, PS filling and biodegradable masterbatch, etc.



Auxiliary

Water-ring cover



pelletizer

Granulator for PET Bottle Recycling Crystalization Free Plastic Granules Making Machine Price Twin-screw Plastic Extruder Pet 6

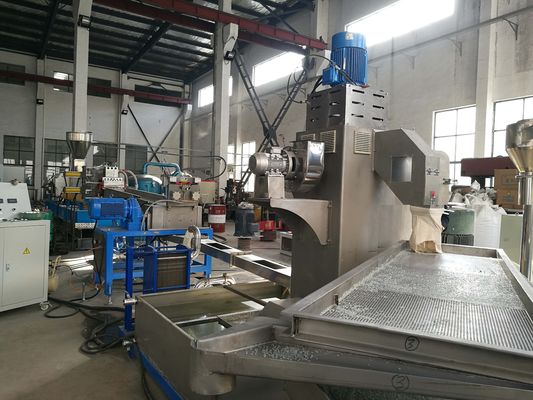

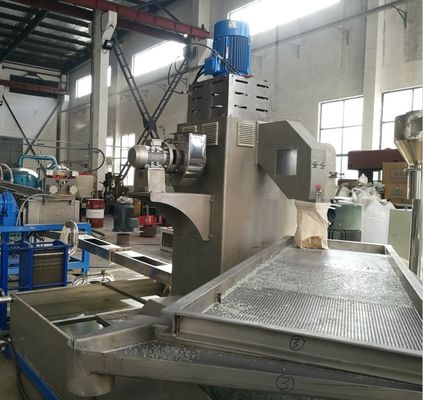

Centrifugal dehydrator

Granulator for PET Bottle Recycling Crystalization Free Plastic Granules Making Machine Price Twin-screw Plastic Extruder Pet 8

Vibrating sieve

Granulator for PET Bottle Recycling Crystalization Free Plastic Granules Making Machine Price Twin-screw Plastic Extruder Pet 10

Bin

Granulator for PET Bottle Recycling Crystalization Free Plastic Granules Making Machine Price Twin-screw Plastic Extruder Pet 12

Other product





Pelletizing in the water line

Granulator for PET Bottle Recycling Crystalization Free Plastic Granules Making Machine Price Twin-screw Plastic Extruder Pet 14







Air-cooling strand pelletizing line



Granulator for PET Bottle Recycling Crystalization Free Plastic Granules Making Machine Price Twin-screw Plastic Extruder Pet 16





Air-cooling hot-face pelletizing line



Granulator for PET Bottle Recycling Crystalization Free Plastic Granules Making Machine Price Twin-screw Plastic Extruder Pet 18



Water-cooling stand pelletizing line



Granulator for PET Bottle Recycling Crystalization Free Plastic Granules Making Machine Price Twin-screw Plastic Extruder Pet 20

Granulator for PET Bottle Recycling Crystalization Free Plastic Granules Making Machine Price Twin-screw Plastic Extruder Pet 22



Granulator for PET Bottle Recycling Crystalization Free Plastic Granules Making Machine Price Twin-screw Plastic Extruder Pet 24

FAQ



1. Are you a factory or trading company?



     Both.



2. Where is your factory located? How can I visit there?



   Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.



   (1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;



   (2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.

3. What's your advantages?

   (1) Excellent quality control



   (2) First-class service



   (3) Professional Tech. and R&D team



   (4) Quick manufacturing time



   (5) Quite competitive price



4. How long is the delivery time?



    Under normal conditions, products are delivered within 35 days.



5. How can I know the stauts of my order?



    We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.



6. How long is the warranty?



    We can offer one-year warranty for the whole machine.
