Name: PET Bottle Flakes Pet Granulator Machine Twin Screw Extruder
Brand: Nanjing Yongjie Qixin Machinery Equipment Co., Ltd.
Availability: InStock

Home Products PET pelletizing machine & pet sheet machine

PET Bottle Flakes Pet Granulator Machine Twin Screw Extruder

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Yongjie
Certification:	CE ISO9001

Contact Now

Detailed Product Description

Plastic Processed:	PET	Application:	Granules
Screw Design:	Double-screw	Twin Screw Type:	Co-rotating Parallel Twin-screw
Screw Material:	W6Mo5Cr4V2	Screw Diameter (mm):	62.4 Mm
Screw L/D Ratio:	36:1	Screw Speed (rpm):	400 Rpm
Voltage:	380V 50HZ	Dimension(lwh):	Model
Power (kw):	90	Warranty:	1 Year
Key Selling Points:	Competitive Price	Video Outgoing-inspection:	Provided
Core Components:	Motor, PLC, Gearbox	Machinery Test Report:	Provided
Brand:	YongJie	Color:	Any Color As Your Require
Material:	Pet Bottle Flake	Function:	Cutting,pelletizing
Capacity:	200kg/h	Package:	According To Your Requirements
Input Pet Flake Size:	<16mm	Input Pet Flake Moisture:	0.2%-2%
IV Loss:	5-10% According To Materail	Super Vacuum System:	5.5kw
After-sales Service Provided:	Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support	After Warranty Service:	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:	Egypt, Germany, Viet Nam, India, Argentina, South Korea	Marketing Type:	Ordinary Product
Condition:	New	Showroom Location:	None
Applicable Industries:	Manufacturing Plant	Warranty Of Core Components:	1 Year
Weight:	1t-10t

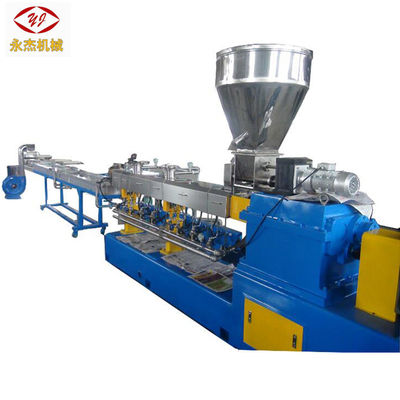

PET bottle flakes pet granulator machine twin screw extruder

Product Description

Nanjing Yongjie started to make pet granules making machine since 2005.For PET flake moisture <=1%, IV loss is around 5%

Model type	Series	Barrel Diameter (mm)	Screw Diameter (mm)	Screw L/D	screw speed n(r/min)	Main motor power(Kw)	Screw torque T(N.m)	Torque rating (T/A³)	production capacity (kg/h)
SJSL-36	A/B/C/D	36	35.6	32-48	400/600	11/15/18.5/22	125-225	4.6-8.3	30-120
SJSL-51	A/B/C/D	51	50.5	32-52	500/600	45/55/75/90	405-680	5.1-8.5	120-400
SJSL-65	A/B/C/D	63	62.4	32-64	500/600	75/90/110/132	680-1200	4.8-8.5	180-750
SJSL-75	A/B/C/D	72	71	32-64	500/600	110/132/160/250	995-1890	4.6-8.7	300-1200
SJSL-95	A/B/C/D	94	93	32-64	500/600	250/315/450/550	2260-4510	4.7-8.7	700-2500
SJSL-135	A/B/C/D	135	133	32-48	400/500	550/750/900/1200	6200-10800	4.4-7.7	1550-6500
