Name: Double Screw PET Pellet Machine Plastic Granulators Machine
Brand: Nanjing Yongjie Qixin Machinery Equipment Co., Ltd.
Availability: InStock

Home Products PET pelletizing machine & pet sheet machine

Double Screw PET Pellet Machine Plastic Granulators Machine

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Yongjie

Contact Now

Detailed Product Description

Plastic Processed:	PET	Output (kg/h):	400 - 500 Kg/h
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	PLC, Bearing, Gearbox, Motor, Gear, Pump	Screw Design:	Double
Voltage:	380V/440V/415V/customized	Dimension(lwh):	1532.5
Power (kw):	132	Warranty:	1 Year
Twin Screw Type:	Co-rotating Parallel Twin-screw, Co-rotating Parallel Twin-screw	Screw L/D Ratio:	40:1, 40:1
Screw Speed (rpm):	50 - 400 Rpm	Application:	Pet Flake Granulating
Raw Material:	Pet Bottle Flake	Motor Power:	110/132/160kw
Screw Material:	W6Mo5Cr4V2	Process Type:	Extrusion And Pelletizing
Machine Type:	Double	Temperature Controller:	Japan RKC Or OMRON
Motor Brand:	Siemens Beide	Inverter Brand:	ABB
Pelletizing Type:	Water Strand Or Underwater Water Strand	Condition:	New
Warranty Of Core Components:	1 Year	Type:	Granulating Production Line
Screw Diameter (mm):	71, 71	Showroom Location:	None
Applicable Industries:	Manufacturing Plant	Weight:	8000

Product Description

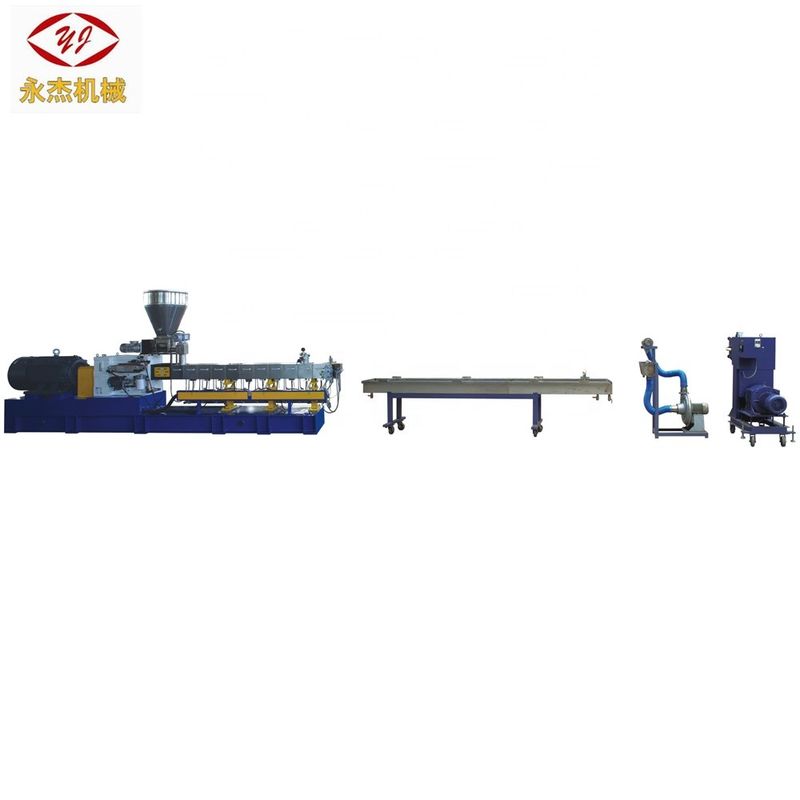

Double Screw PET Pellet Machine Plastic Granulators Machine

Nanjing Yongjie is specialized in pet flake recycling machine pet pellet machine plastic granulators for years. Our specially designed pet pellet machine uses underwater strand cutting, it can no waste material strand, and save the labour cost, more over super vacuum is adoted for our pet pelletizing machine, and pellets made by our extruder is with very low IV loss during production.

Main technical data of pet pellet machine plastic granulators

Model type	Series	Barrel Diameter (mm)	Screw Diameter (mm)	Screw L/D	screw speed n(r/min)	Main motor power(Kw)	Screw torque T(N.m)	Torque rating (T/A³)	Typical production capacity (kg/h)
SJSL20	A/B	22	21.7	32-44	500/600	4/5.5kw	30/30
SJSL-36	A/B/C/D	36	35.6	32-48	400/600	11/15/18.5/22	125-225	4.6-8.3	30-120
SJSL-51	A/B/C/D	51	50.5	32-52	500/600	45/55/75/90	405-680	5.1-8.5	120-400
SJSL-65	A/B/C/D	63	62.4	32-64	500/600	75/90/110/132	680-1200	4.8-8.5	180-750
SJSL-75	A/B/C/D	72	71	32-64	500/600	110/132/160/250	995-1890	4.6-8.7	300-1200
SJSL-95	A/B/C/D	94	93	32-64	500/600	250/315/450/550	2260-4510	4.7-8.7	700-2500
SJSL-135	A/B/C/D	135	133	32-48	400/500	550/750/900/1200	6200-10800	4.4-7.7	1550-6500

Image & Data

1. Main Parts of pet pellet machine plastic granulators

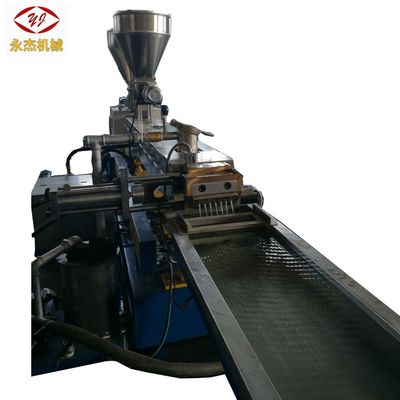

Name: Twin-screw extruder
Brand: YJMotor: AC motor, power:160KW, brand: SIEMENS Bade,
Speed governing: Sweden ABB inverter control speed,
Revolutions:600rpm
Reduction ratio: i =2.5:1

1.1. Main Parts of

pet pellet machine plastic granulators

Name: Gearbox
Brand: YJ
Parallel tri-axial structure is combination of reduction and matrix. The gear is made of high quality alloy (20CrNi2Mo).Drive bearing: The brand of axletree: Japanese NSK.
Lubrication: Gear bearings in the gear box will be of oil immersed. There is hydraulic lubrication in the gear engagement and gear bearings.
Cooling: Lubricated cooling adopts shell and tube cooler and circulated water cooling method.

1.2.Main Parts of

pet pellet machine plastic granulators

Name: Screw
Brand: YJ
Direction of rotation: co-rotating;
The screw elements material is W6Mo5Cr4V2(6542#)
The core axis is made of high quality alloy steel 40CrNiMo
