China Parallel Wood Plastic Pelletizing Machine Manufacturer

China Parallel Wood Plastic Pelletizing Machine Manufacturer

  • China Parallel Wood Plastic Pelletizing Machine Manufacturer
  • China Parallel Wood Plastic Pelletizing Machine Manufacturer
  • China Parallel Wood Plastic Pelletizing Machine Manufacturer
  • China Parallel Wood Plastic Pelletizing Machine Manufacturer
  • China Parallel Wood Plastic Pelletizing Machine Manufacturer
  • China Parallel Wood Plastic Pelletizing Machine Manufacturer
  • China Parallel Wood Plastic Pelletizing Machine Manufacturer
China Parallel Wood Plastic Pelletizing Machine Manufacturer
Product Details:
Contact Now
Detailed Product Description
加工塑料类型: PE, PP, PVC, 实木-塑料, PE/PP 应用: 颗粒
螺杆设计: 双螺杆 双螺杆类型: 同向平行双螺杆
螺杆材质: 38CrMoALA 螺杆直径(mm): 71
螺杆长径比: 40:1 螺杆转速 (rpm): 500 Rpm
原产地: Jiangsu, China 品牌: YongJie
电压: 380V 50HZ 尺寸(长×宽×高): 型号
功率 (kW): 132 保修期: 1年
核心卖点: 全自动 视频出厂验货: 可提供
核心组件: 电机, PLC, 齿轮箱 机械测试报告: 可提供
提供售后服务: 工程师可在海外为机械提供服务 应用领域: 木塑造粒机:
姓名: 永洁 枪管材料: 38CrMoALA
颜色: 任何颜色作为您的要求 逆变器: ABB品牌
电机品牌: WN/西门子贝德 RPM ( R/min): 400/500/600/800
扭矩 (N.m): 1015/1005/990/900 T/N: 4.7/4.6/4.2
营销类型: 热门产品2019 状态: New
展示厅地点(在海外哪些国家有样品间): None 适用行业: 生产车间
核心组件质保期: 1年 重量: 1 KG

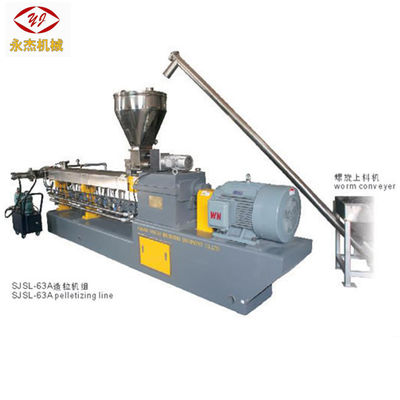

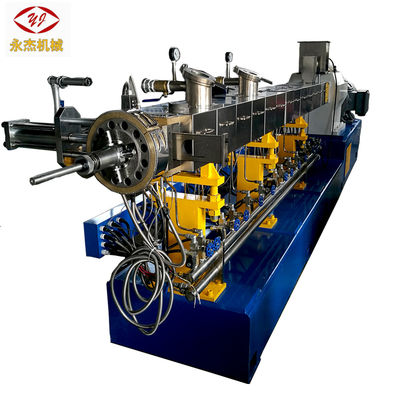

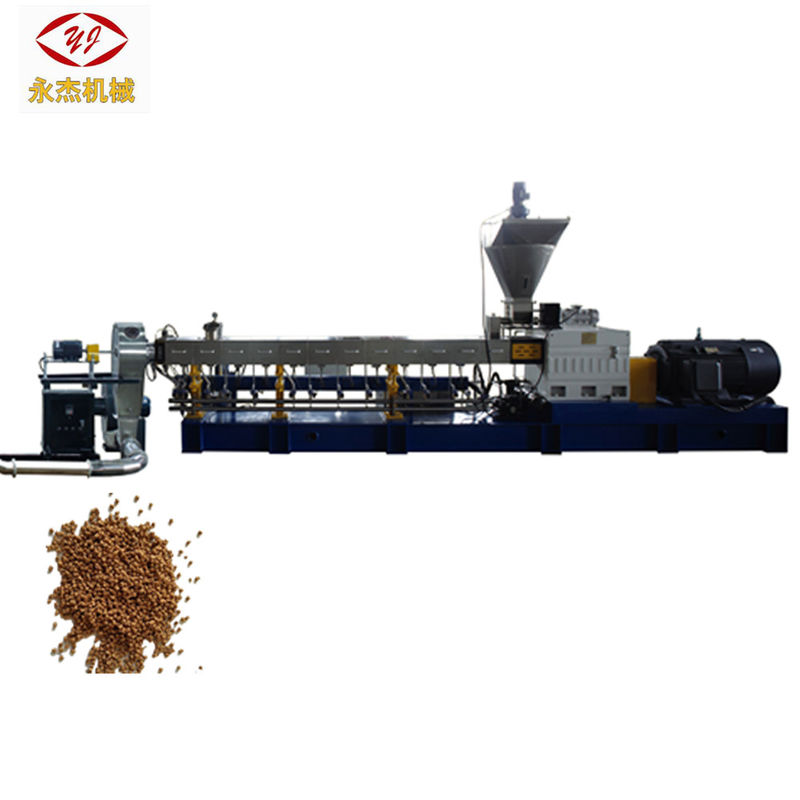

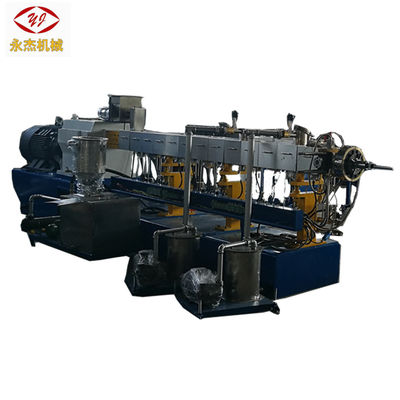

China Parallel wood plastic pelletizing machine manufacturer

              The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.

                                      Model           Diameter(mm)                                         L/D          RPM ( r/min)                             Power   (Kw)   Torque(N.m)                                       T/N                                  Capacity (Kg/h)
SJSL-20 20 32-44 600 5.5 30 4.8 6.5-15
SJSL-36 36 32-48 600 15 115 4.2 30-75
SJSL-51A 51 32-52 500 45 405 5.1 100-200
SJSL-51B 51 32-52 600 55 415 5.2 150-25
SJSL-63A 63 32-62 400      55        620       4.4      160-250
500 75 675 4.8 200-300

SJSL-63B

63 32-64 600     90       675       4.8       225-375
800 110 620 4.4 300-500
SJSL-75A 72 32-64 400     90        1015    4.7       225-350
500 110 1005 4.6 300-550
SJSL-75B 72 32-64 600     132       990      4.6       400-650
800 160 900 4.2 480-800
SJSL-92A 92 32-64 400     250 2815    5.9       650-1050
500 2250 4.7 750-1250
SJSL-92B 92 32-64 600     280 2365    5.0       900-1500
800 2250 4.7 1200-2000
SJSL-135A 135 32-48 400 315 6190 4.6 1500-2500
SJSL-135B 135 32-48 500 400 6750 5.1 200-3500
China Parallel Wood Plastic Pelletizing Machine Manufacturer 0
China Parallel Wood Plastic Pelletizing Machine Manufacturer 2

China Parallel Wood Plastic Pelletizing Machine Manufacturer 4



China Parallel Wood Plastic Pelletizing Machine Manufacturer 6

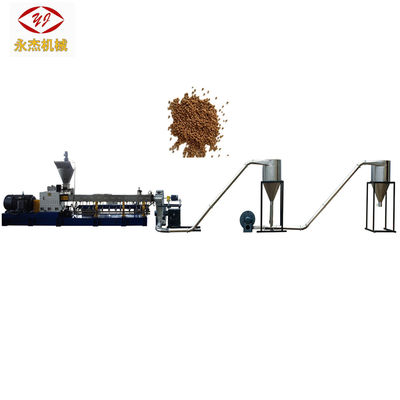

Application for air-cooling hot face production line

1. Masterbatch enforcing modification: PE, EVA + calcium carbonate, talc, titanium

  dioxide, PVC, PP, carbon black.

2. Degradable master batch: PE, PS, etc. + starch, additives etc.

3. Anti-flame master batch: PE, EVA, etc. + Mg(OH)2, Al2(OH)3, etc.



Auxiliary

Air-cooling pelletizer cover

China Parallel Wood Plastic Pelletizing Machine Manufacturer 8

cyclone

China Parallel Wood Plastic Pelletizing Machine Manufacturer 10

Blower

China Parallel Wood Plastic Pelletizing Machine Manufacturer 12

Vibrating sieve

China Parallel Wood Plastic Pelletizing Machine Manufacturer 14

Product bin

China Parallel Wood Plastic Pelletizing Machine Manufacturer 16

Other product



Pelletizing in the water line

China Parallel Wood Plastic Pelletizing Machine Manufacturer 18







Air-cooling strand pelletizing line



China Parallel Wood Plastic Pelletizing Machine Manufacturer 20





Water-ring Hot-face pelletizing line



China Parallel Wood Plastic Pelletizing Machine Manufacturer 22



Water-cooling stand pelletizing line



China Parallel Wood Plastic Pelletizing Machine Manufacturer 24

China Parallel Wood Plastic Pelletizing Machine Manufacturer 26



China Parallel Wood Plastic Pelletizing Machine Manufacturer 28

FAQ



1. Are you a factory or trading company?



     Both.



2. Where is your factory located? How can I visit there?



   Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.



   (1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;



   (2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.

3. What's your advantages?

   (1) Excellent quality control



   (2) First-class service



   (3) Professional Tech. and R&D team



   (4) Quick manufacturing time



   (5) Quite competitive price



4. How long is the delivery time?



    Under normal conditions, products are delivered within 35 days.



5. How can I know the stauts of my order?



    We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.



6. How long is the warranty?



    We can offer one-year warranty for the whole machine.
