Name: Twin Screw Extruder WPC Extruder Machine PP PE PVC PS POM Wpc Pelletizing Line
Brand: Nanjing Yongjie Qixin Machinery Equipment Co., Ltd.
Availability: InStock

Home Products Air-cooling hot-face pelletizing line

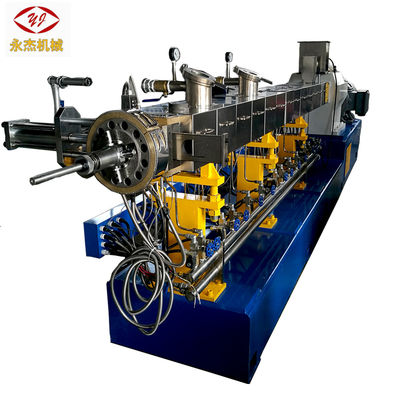

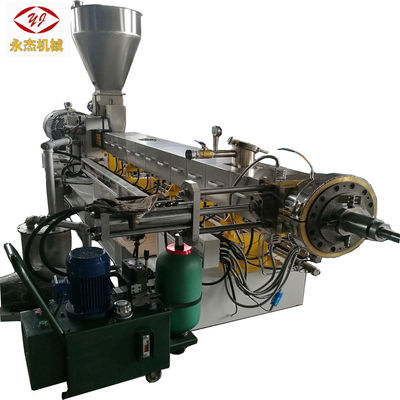

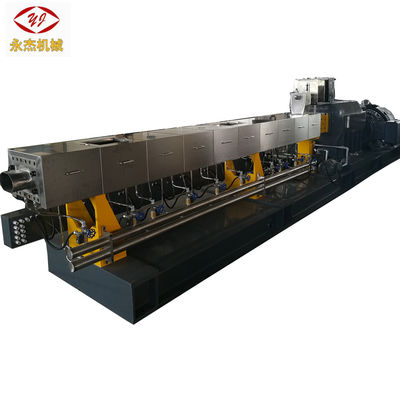

Twin Screw Extruder WPC Extruder Machine PP PE PVC PS POM Wpc Pelletizing Line

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	YongJie
Certification:	CE ISO9001

Contact Now

Detailed Product Description

Plastic Processed:	PP/PVC/WPC/PE/ABS/XPS/Polystyrene	Application:	Granules
Screw Design:	Double-screw	Twin Screw Type:	Co-rotating Parallel Twin-screw
Screw Material:	38CrMoALA	Screw Diameter (mm):	62.4
Screw L/D Ratio:	40:1	Screw Speed (rpm):	500 Rpm
Voltage:	380V 50HZ	Dimension(lwh):	Model
Power (kw):	90	Warranty:	1 Year
Key Selling Points:	Automatic	Video Outgoing-inspection:	Provided
Core Components:	PLC, Gearbox	Machinery Test Report:	Provided
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Keyword:	Nylon Extrusion Machine
L/D:	32-64	RPM ( R/min):	400/500/600/800
Torque(N.m):	1015/1005/990/900	T/N:	4.7/4.6/4.2
Capacity (Kg/h):	225-800kg/h	Power:	90/110/132/160kw
Condition:	New	Showroom Location:	None
Applicable Industries:	Manufacturing Plant	Warranty Of Core Components:	1 Year
Weight:	1 KG

Twin screw extruder WPC extruder machine PP PE PVC PS POM wpc pelletizing line

The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.

Model	Diameter(mm)	L/D	RPM ( r/min)	Power (Kw)	Torque(N.m)	T/N	Capacity (Kg/h)
SJSL-20	20	32-44	600	5.5	30	4.8	6.5-15
SJSL-36	36	32-48	600	15	115	4.2	30-75
SJSL-51A	51	32-52	500	45	405	5.1	100-200
SJSL-51B	51	32-52	600	55	415	5.2	150-25
SJSL-63A	63	32-62	400	55	620	4.4	160-250
SJSL-63A	63	32-62	500	75	675	4.8	200-300
SJSL-63B	63	32-64	600	90	675	4.8	225-375
SJSL-63B	63	32-64	800	110	620	4.4	300-500
SJSL-75A	72	32-64	400	90	1015	4.7	225-350
SJSL-75A	72	32-64	500	110	1005	4.6	300-550
SJSL-75B	72	32-64	600	132	990	4.6	400-650
SJSL-75B	72	32-64	800	160	900	4.2	480-800
SJSL-92A	92	32-64	400	250	2815	5.9	650-1050
SJSL-92A	92	32-64	500	250	2250	4.7	750-1250
SJSL-92B	92	32-64	600	280	2365	5.0	900-1500
SJSL-92B	92	32-64	800	280	2250	4.7	1200-2000
SJSL-135A	135	32-48	400	315	6190	4.6	1500-2500
SJSL-135B	135	32-48	500	400	6750	5.1	200-3500

Flow chart of WPC pelletizing line

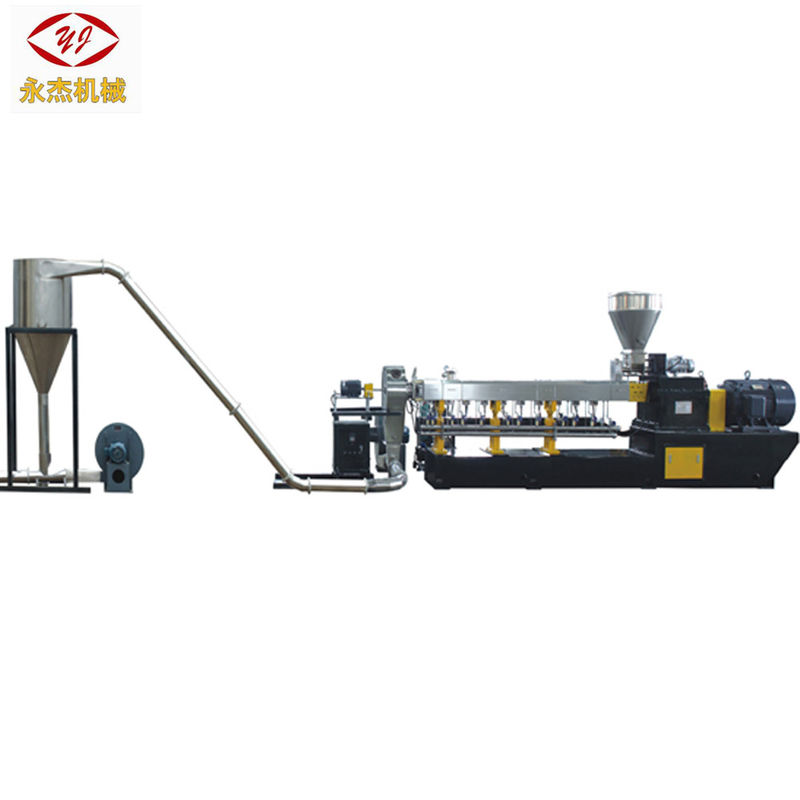

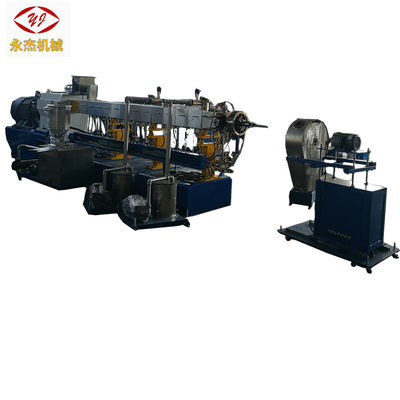

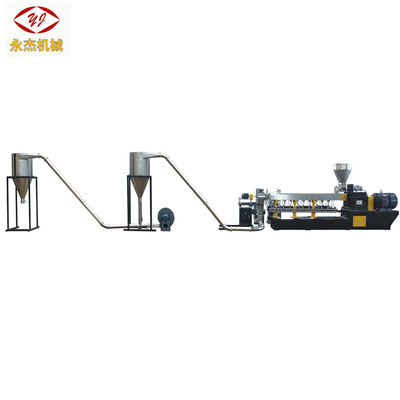

Photo of wpc pelletizing line

wpc pelletizing line testing before delivery

PE/PP/PVC WPC pelletizing line in Sweden customer's plant

Our workshop for the screw elements and barrel

Application for wpc pelletizing line air-cooling hot face production line

1. Masterbatch enforcing modification: PE, EVA + calcium carbonate, talc, titanium

dioxide, PVC, PP, carbon black.

2. Degradable master batch: PE, PS, etc. + starch, additives etc.

3. Anti-flame master batch: PE, EVA, etc. + Mg(OH)2, Al2(OH)3, etc.

Other product

Pelletizing in the water line

Air-cooling strand pelletizing line for biodegradable pellets

Water-ring Hot-face pelletizing line
