Home ProductsAir-cooling hot-face pelletizing line

Co-rotating Twin Screw Extruder Wood Plastic Composite Production Line WPC Pelletizing Machine

Co-rotating Twin Screw Extruder Wood Plastic Composite Production Line WPC Pelletizing Machine

  • Co-rotating Twin Screw Extruder Wood Plastic Composite Production Line WPC Pelletizing Machine
  • Co-rotating Twin Screw Extruder Wood Plastic Composite Production Line WPC Pelletizing Machine
  • Co-rotating Twin Screw Extruder Wood Plastic Composite Production Line WPC Pelletizing Machine
  • Co-rotating Twin Screw Extruder Wood Plastic Composite Production Line WPC Pelletizing Machine
  • Co-rotating Twin Screw Extruder Wood Plastic Composite Production Line WPC Pelletizing Machine
  • Co-rotating Twin Screw Extruder Wood Plastic Composite Production Line WPC Pelletizing Machine
  • Co-rotating Twin Screw Extruder Wood Plastic Composite Production Line WPC Pelletizing Machine
Co-rotating Twin Screw Extruder Wood Plastic Composite Production Line WPC Pelletizing Machine
Product Details:
Contact Now
Detailed Product Description
加工塑料类型: 实木-塑料 应用: 颗粒
螺杆设计: 双螺杆 双螺杆类型: 同向平行双螺杆
螺杆材质: 38CrMoALA 螺杆直径（mm）: 71.8
螺杆长径比: 48:1 螺杆转速 (rpm): 600 Rpm
原产地: Jiangsu, China 品牌: YongJie
电压: 380V 50HZ 尺寸(长×宽×高): 型号
功率 （kW）: 132 保修期: 1年
核心卖点: 价格富有竞争力 视频出厂验货: 可提供
核心组件: 电机, PLC, 齿轮箱 机械测试报告: 可提供
枪管材料: 38CrMoALA 颜色: 任何颜色作为您的要求
直径 (mm): 135 L/D: 32-48
RPM ( R/min): 400/500 扭矩 (N.m): 6190/6750
T/N: 4.6/5.1 自动坡度: 高度自动化
认证: CE ISO9001 营销类型: 热门产品2019
状态: New 展示厅地点（在海外哪些国家有样品间）: None
适用行业: 生产车间 核心组件质保期: 1年
重量: 5500 KG

Co-rotating wood plastic composites production line for sale

              The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.

                                      Model           Diameter(mm)                                         L/D          RPM ( r/min)                             Power   (Kw)   Torque(N.m)                                       T/N                                  Capacity (Kg/h)
SJSL-20 20 32-44 600 5.5 30 4.8 6.5-15
SJSL-36 36 32-48 600 15 115 4.2 30-75
SJSL-51A 51 32-52 500 45 405 5.1 100-200
SJSL-51B 51 32-52 600 55 415 5.2 150-25
SJSL-63A 63 32-62 400      55        620       4.4      160-250
500 75 675 4.8 200-300

SJSL-63B

 63 32-64 600     90       675       4.8       225-375
800 110 620 4.4 300-500
SJSL-75A 72 32-64 400     90        1015    4.7       225-350
500 110 1005 4.6 300-550
SJSL-75B 72 32-64 600     132       990      4.6       400-650
800 160 900 4.2 480-800
SJSL-92A 92 32-64 400     250 2815    5.9       650-1050
500 2250 4.7 750-1250
SJSL-92B 92 32-64 600     280 2365    5.0       900-1500
800 2250 4.7 1200-2000
SJSL-135A 135 32-48 400 315 6190 4.6 1500-2500
SJSL-135B 135 32-48 500 400 6750 5.1 200-3500
Co-rotating Twin Screw Extruder Wood Plastic Composite Production Line WPC Pelletizing Machine 0

Co-rotating Twin Screw Extruder Wood Plastic Composite Production Line WPC Pelletizing Machine 2Co-rotating Twin Screw Extruder Wood Plastic Composite Production Line WPC Pelletizing Machine 4

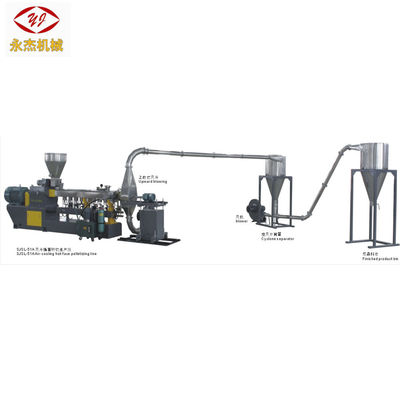

Application for air-cooling hot face production line

1. Masterbatch enforcing modification: PE, EVA + calcium carbonate, talc, titanium

  dioxide, PVC, PP, carbon black.

2. Degradable master batch: PE, PS, etc. + starch, additives etc.

3. Anti-flame master batch: PE, EVA, etc. + Mg(OH)2, Al2(OH)3, etc.



Auxiliary

Air-cooling pelletizer cover

Co-rotating Twin Screw Extruder Wood Plastic Composite Production Line WPC Pelletizing Machine 6

cyclone

Co-rotating Twin Screw Extruder Wood Plastic Composite Production Line WPC Pelletizing Machine 8

Blower

Co-rotating Twin Screw Extruder Wood Plastic Composite Production Line WPC Pelletizing Machine 10

Vibrating sieve

Co-rotating Twin Screw Extruder Wood Plastic Composite Production Line WPC Pelletizing Machine 12

Product bin

Co-rotating Twin Screw Extruder Wood Plastic Composite Production Line WPC Pelletizing Machine 14

Co-rotating Twin Screw Extruder Wood Plastic Composite Production Line WPC Pelletizing Machine 16Co-rotating Twin Screw Extruder Wood Plastic Composite Production Line WPC Pelletizing Machine 18Co-rotating Twin Screw Extruder Wood Plastic Composite Production Line WPC Pelletizing Machine 20Co-rotating Twin Screw Extruder Wood Plastic Composite Production Line WPC Pelletizing Machine 22Co-rotating Twin Screw Extruder Wood Plastic Composite Production Line WPC Pelletizing Machine 24Co-rotating Twin Screw Extruder Wood Plastic Composite Production Line WPC Pelletizing Machine 26

FAQ



1. Are you a factory or trading company?



     Both.



2. Where is your factory located? How can I visit there?



   Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.



   (1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;



   (2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.

3. What's your advantages?

   (1) Excellent quality control



   (2) First-class service



   (3) Professional Tech. and R&D team



   (4) Quick manufacturing time



   (5) Quite competitive price



4. How long is the delivery time?



    Under normal conditions, products are delivered within 35 days.



5. How can I know the stauts of my order?



    We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.



6. how long is the warranty?



    We can offer one-year warranty for the whole machine.
