Own Factory Manufacturing Equipment Extruder for Powder Coating

Own Factory Manufacturing Equipment Extruder for Powder Coating

  • Own Factory Manufacturing Equipment Extruder for Powder Coating
  • Own Factory Manufacturing Equipment Extruder for Powder Coating
  • Own Factory Manufacturing Equipment Extruder for Powder Coating
  • Own Factory Manufacturing Equipment Extruder for Powder Coating
  • Own Factory Manufacturing Equipment Extruder for Powder Coating
  • Own Factory Manufacturing Equipment Extruder for Powder Coating
  • Own Factory Manufacturing Equipment Extruder for Powder Coating
Own Factory Manufacturing Equipment Extruder for Powder Coating
Product Details:
Contact Now
Detailed Product Description
加工塑料类型: PP/PVC/WPC/PE/ABS/XPS/聚苯乙烯 应用: 颗粒
螺杆设计: 双螺杆 双螺杆类型: 同向平行双螺杆
螺杆材质: 6542 # 螺杆直径(mm): 62.4
螺杆长径比: 36:1 螺杆转速 (rpm): 600 Rpm
原产地: Jiangsu, China 品牌: YongJie
电压: 380V 50HZ 尺寸(长×宽×高): 型号
功率 (kW): 200 保修期: 1年
核心卖点: 全自动 视频出厂验货: 可提供
核心组件: 电机, 泵, PLC, 齿轮箱 机械测试报告: 可提供
提供售后服务: 工程师可在海外为机械提供服务, 视频技术支持, 免费备件, 现场安装、调试和培训, 现场维护和维修服务, 在线支持 关键词: 粉末涂料挤出机
姓名: 永洁 保修: 1年
颜色: 任何颜色作为您的要求 直径 (mm): 63mm
L/D: 32-62/32-64 RPM ( R/min): 400/500/600/800
扭矩 (N.m): 620/675/620 T/N: 4.4/4.8
保修后服务: 视频技术支持, 在线支持, 备品备件, 现场维护和维修服务 本地服务位置: 土耳其, 联合王国, 德国
营销类型: 热门产品2019 产量 (kg/h): 200 - 300 Kg/h
认证: CE ISO9001 状态: New
展示厅地点(在海外哪些国家有样品间): None 适用行业: 生产车间
核心组件质保期: 1年 重量: 1t-10t

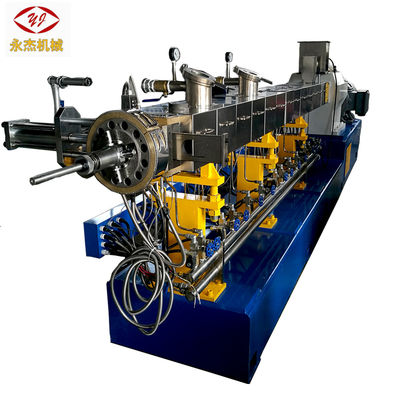

Own factory manufacturing equipment extruder for powder coating

              The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.

                                      Model           Diameter(mm)                                         L/D          RPM ( r/min)                             Power   (Kw)   Torque(N.m)                                       T/N                                  Capacity (Kg/h)
SJSL-20 20 32-44 600 5.5 30 4.8 6.5-15
SJSL-36 36 32-48 600 15 115 4.2 30-75
SJSL-51A 51 32-52 500 45 405 5.1 100-200
SJSL-51B 51 32-52 600 55 415 5.2 150-25
SJSL-63A 63 32-62 400      55        620       4.4      160-250
500 75 675 4.8 200-300

SJSL-63B

63 32-64 600     90       675       4.8       225-375
800 110 620 4.4 300-500
SJSL-75A 72 32-64 400     90        1015    4.7       225-350
500 110 1005 4.6 300-550
SJSL-75B 72 32-64 600     132       990      4.6       400-650
800 160 900 4.2 480-800
SJSL-92A 92 32-64 400     250 2815    5.9       650-1050
500 2250 4.7 750-1250
SJSL-92B 92 32-64 600     280 2365    5.0       900-1500
800 2250 4.7 1200-2000
SJSL-135A 135 32-48 400 315 6190 4.6 1500-2500
SJSL-135B 135 32-48 500 400 6750 5.1 200-3500
Own Factory Manufacturing Equipment Extruder for Powder Coating 0

Own Factory Manufacturing Equipment Extruder for Powder Coating 2Own Factory Manufacturing Equipment Extruder for Powder Coating 4

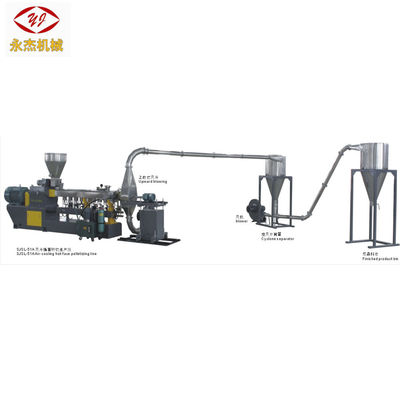

Application for air-cooling hot face production line

1. Masterbatch enforcing modification: PE, EVA + calcium carbonate, talc, titanium

  dioxide, PVC, PP, carbon black.

2. Degradable master batch: PE, PS, etc. + starch, additives etc.

3. Anti-flame master batch: PE, EVA, etc. + Mg(OH)2, Al2(OH)3, etc.



Auxiliary

Air-cooling pelletizer cover

Own Factory Manufacturing Equipment Extruder for Powder Coating 6

cyclone

Own Factory Manufacturing Equipment Extruder for Powder Coating 8

Blower

Own Factory Manufacturing Equipment Extruder for Powder Coating 10

Vibrating sieve

Own Factory Manufacturing Equipment Extruder for Powder Coating 12

Product bin

Own Factory Manufacturing Equipment Extruder for Powder Coating 14

Other product



Water-ring Hot-face pelletizing line               Pelletizing in the water line



Own Factory Manufacturing Equipment Extruder for Powder Coating 16Own Factory Manufacturing Equipment Extruder for Powder Coating 18

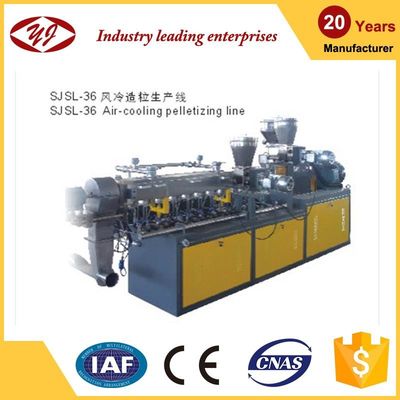

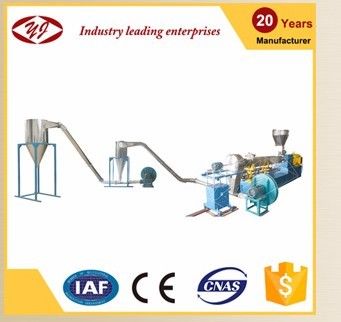

Air-cooling hot-face pelletizing line             Air-cooling strand pelletizing line

Own Factory Manufacturing Equipment Extruder for Powder Coating 20Own Factory Manufacturing Equipment Extruder for Powder Coating 22

Own Factory Manufacturing Equipment Extruder for Powder Coating 24

Own Factory Manufacturing Equipment Extruder for Powder Coating 26Own Factory Manufacturing Equipment Extruder for Powder Coating 28

FAQ



1. Are you a factory or trading company?



     Both.



2. Where is your factory located? How can I visit there?



   Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.



   (1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;



   (2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.

3. What's your advantages?

   (1) Excellent quality control



   (2) First-class service



   (3) Professional Tech. and R&D team



   (4) Quick manufacturing time



   (5) Quite competitive price



4. How long is the delivery time?



    Under normal conditions, products are delivered within 35 days.



5. How can I know the stauts of my order?



    We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.



6. how long is the warranty?



    We can offer one-year warranty for the whole machine.
